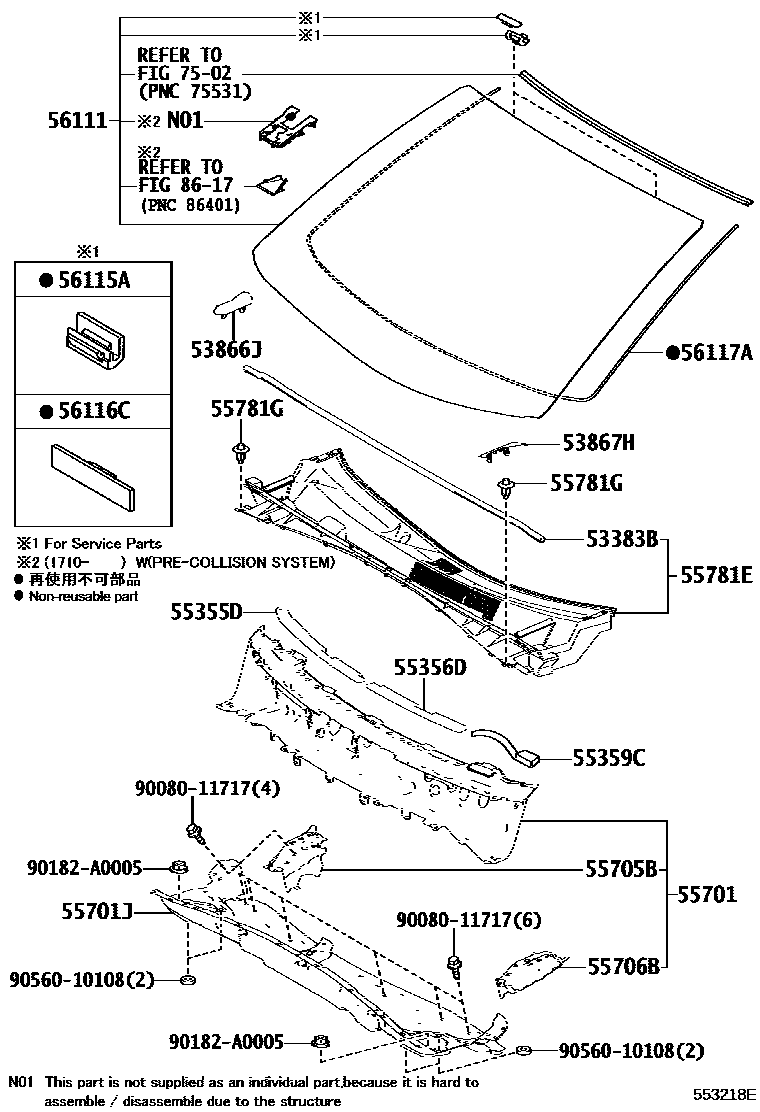

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0E050iASU50,GSU5#201312-201611

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0E060iASU50,GSU5#201312-201611

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0E060iASU50,GSU5#201312-201611

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55359-0E090iASU50,GSU5#201312-201611

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55359-0E100iASU50,GSU5#201312-201611

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-0E160iASU50,GSU5#201611

55701PANEL SUB-ASSY, COWL

main55700-0E050iASU50,GSU55..RUS201312-201511

main55700-0E051iASU50,GSU55..RUS201611

main55700-0E060iGSU5#..ARL201312-201611

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0E060iGSU55..RUS201611

main55701-0E070iGSU5#..ARL201312-201611

main55701-0E080iASU50201611

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0E050iASU50,GSU5#201611

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0E050iASU50,GSU5#201312-201611

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0E070iASU50,GSU55..RUS201312-201512

main55708-0E071iASU50,GSU55..RUS201601-201611

main55708-0E072iASU50,GSU55..RUS201808

main55708-0E080iGSU5#..ARL201611

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08180×2iASU50,GSU5#201312-201501

main90467-A0035×2iASU50,GSU5#201502-201611

56111GLASS, WINDSHIELD

main56101-0E290iGSU5#..ARL201312-201602

*LAM,T=4.76,GREEN

main56101-0E292iGSU5#..LE..ARL201611-201710

main56101-0E343supersedes 56101-0E262iGSU55..RUS;ASU50..LIMD201611-201612

LEATHER PACKAGE

main56101-0E344supersedes 56101-0E263iGSU55..RUS;ASU50..LIMD201612

LEATHER PACKAGE

main56101-0E581supersedes 56101-0E600iGSU5#..LIMD..ARL201611

main56101-0E230iGSU5#..LIMD..ARL201511-201602

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH

main56101-0E231iGSU5#..LIMD..ARL201603-201611

PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH

main56101-0E280iGSU5#..LIMD..ARL201312-201511

*LAM,T=4.76,GREEN,LANE KEEPING SYSTEM-WITH

main56101-0E330supersedes 56101-0E343iASU50,GSU55..LIMD..RUS201312-201502

*EHL,T=4.76,GREEN,LANE KEEPING SYSTEM-WITH

main56101-0E331supersedes 56101-0E343iASU50,GSU55..LIMD..RUS201503-201602

LANE KEEPING SYSTEM-WITH

main56101-0E332supersedes 56101-0E343iASU50,GSU55..LIMD..RUS201603-201611

LANE KEEPING SYSTEM-WITH

sub56101-0E333

main56101-0E561iASU50,GSU55..LIMD..RUS201611-201612

GSP WITH TSR

main56101-0E562iASU50,GSU55..LIMD..RUS201612

GSP WITH TSR

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iASU50,GSU5#201611

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iASU50,GSU5#201312-201611

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0E060iASU50,GSU55..LE..RUS201312-201611

L=3025,LANE KEEPING SYSTEM-WITH

7502

8617

9008011717

main90080-11717

90182A0005

main90182-A0005

9056010108

main90560-10108

21 parts on this diagram · 2 diagrams in section
