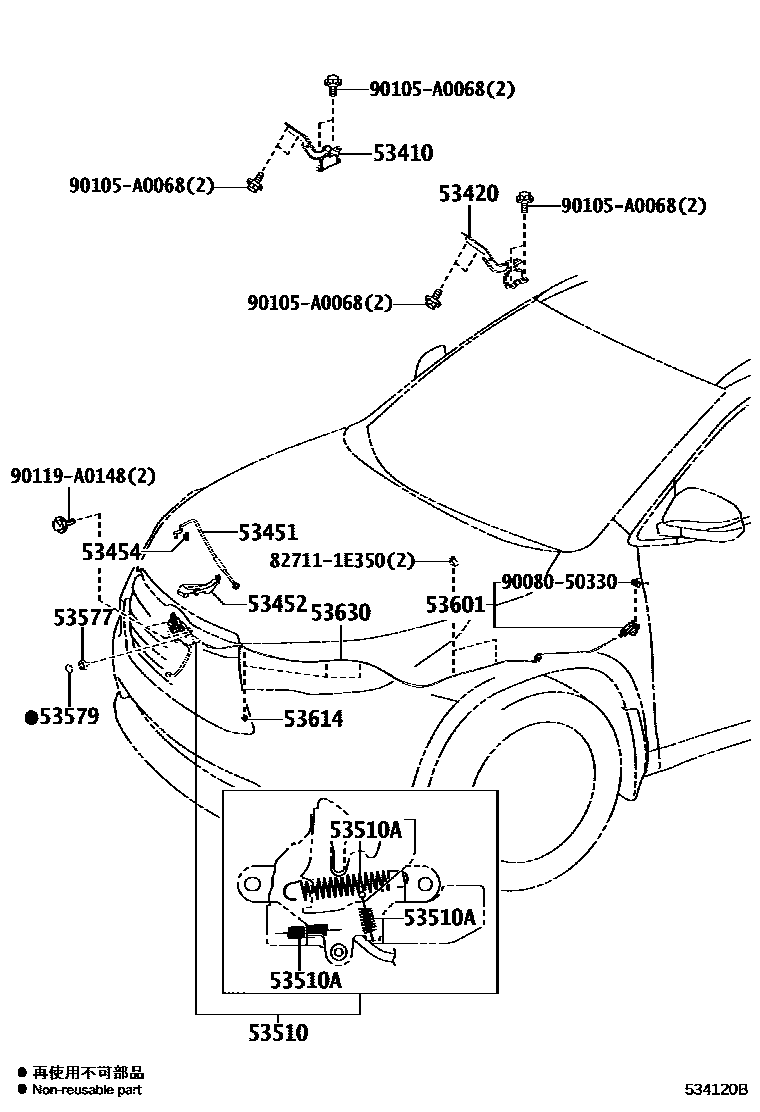

HOOD LOCK & HINGE

0001 1LHD 0002 1RHD

53410HINGE ASSY, HOOD, RH

main53410-0E120iASU50,GSU5#201312-201611

53420HINGE ASSY, HOOD, LH

main53420-0E120iASU50,GSU5#201312-201611

53451ROD, HOOD SUPPORT

main53440-0E050iASU50,GSU5#201312-201611

53452HOLDER, HOOD STAY

main53452-0E040iASU50,GSU5#201312-201611

53454CLIP, HOOD SUPPORT ROD

main90480-15027iASU50,GSU5#201312-201611

53510LOCK ASSY, HOOD

main53510-0E100iASU50,GSU55..RUS201312-201611

main53510-0E110iGSU5#..ARL201312-201611

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASU50,GSU5#201312-201611

WD=0.9,CW=21

main90506-12063iASU50,GSU5#201312-201611

WD=1.2,CW=8.5

main90506-18067iASU50,GSU5#201312-201611

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-0E010iASU50,GSU5#201312-201611

53579CAP, HOOD LOCK NUT

main53579-0E010iASU50,GSU5#201312-201611

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02020-A2iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201905

FLAXEN,TRIM0#

main53601-02020-C0iASU50,GSU5#..LE201312-201706

BLACK,TRIM2#

main53601-02020-C0iASU50,GSU5#..LE201611-201706

BLACK,TRIM2#,4#

main53601-02020-C3iASU50,GSU5#..LE201706-201905

BLACK,TRIM2#,4#

main53601-02020-C3iASU50,GSU5#..LIMD201706-201905

BLACK,TRIM2#

main53601-02040-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201905

FLAXEN,TRIM0#

main53601-02040-C0iASU50,GSU5#..LIMD201905

BLACK,TRIM2#,4#

main53601-02040-C0iASU50,GSU5#..LE201905

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main90959-01369iASU50,GSU5#201312-201611

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0E050iASU50,GSU55..RUS201312-201905

main53630-0E051iASU50,GSU55..RUS201905

main53630-0E060iGSU5#..ARL201312-201905

main53630-0E061iGSU5#..ARL201905

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

9008050330

main90080-50330

90105A0068

main90105-A0068

90119A0148

main90119-A0148

16 parts on this diagram · 2 diagrams in section
