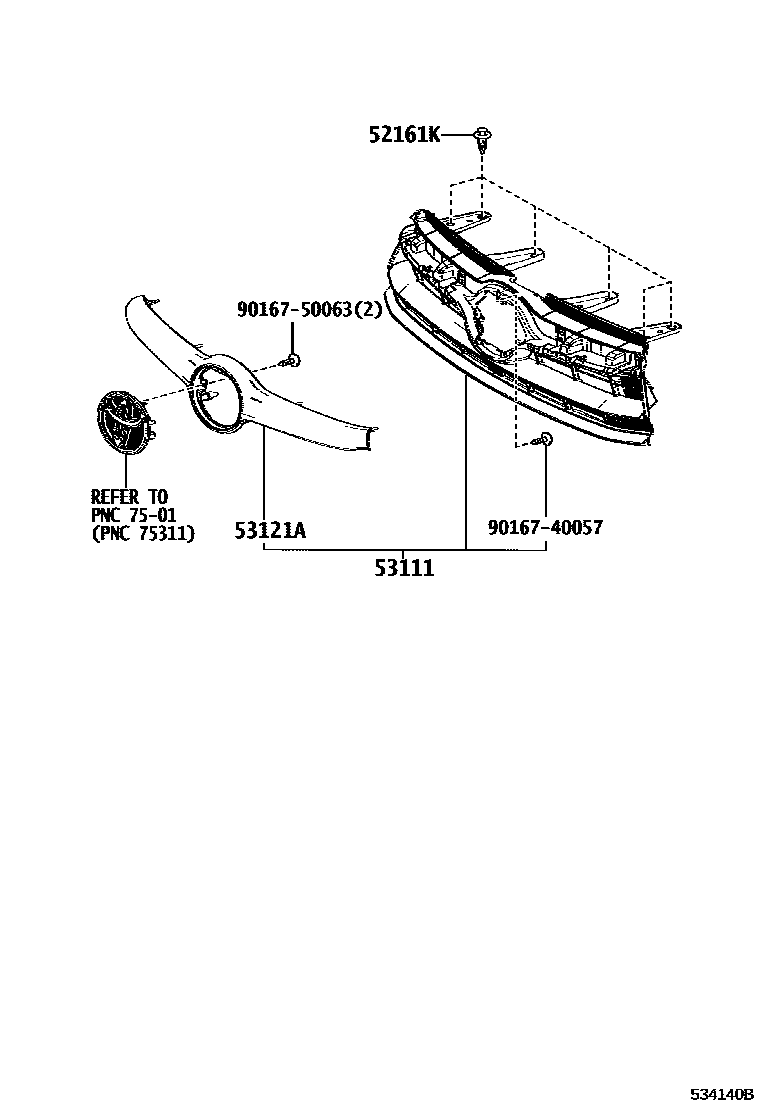

RADIATOR GRILLE

0001 1 0002 1

52161KPIECE, FRONT BUMPER

main52161-02020iASU50,GSU5#201312-201611

53111GRILLE, RADIATOR

main53101-0E170iGSU5#..ARL201312-201611

PLATED

main53101-0E190iASU50,GSU55..RUS201312-201611

PLATED

main53101-0E230iASU50,GSU5#..LE201611-201809

NO PAINT REQ.

sub53101-0E231

sub82711-48210

main53101-0E231iASU50,GSU5#..LE201809

NO PAINT REQ.

main53101-0E240iGSU5#..LIMD..ARL201611-201809

PLATED

sub53101-0E241

sub82711-48210

main53101-0E241iGSU5#..LIMD..ARL201809

PLATED

main53101-0E250iASU50,GSU55..LIMD..RUS201611-201809

PLATED

sub53101-0E251

sub82711-48210

main53101-0E251iASU50,GSU55..LIMD..RUS201809

PLATED

main53101-0E261iGSU5#..LE..ARL201809

NO PAINT REQ.,LEATHER PACKAGE & BLACK PACKAGE

53121AMOULDING, RADIATOR GRILLE

main53121-0E080iGSU5#..ARL201312-201611

main53121-0E100iASU50,GSU55..RUS201312-201611

9016740057

main90167-40057

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
