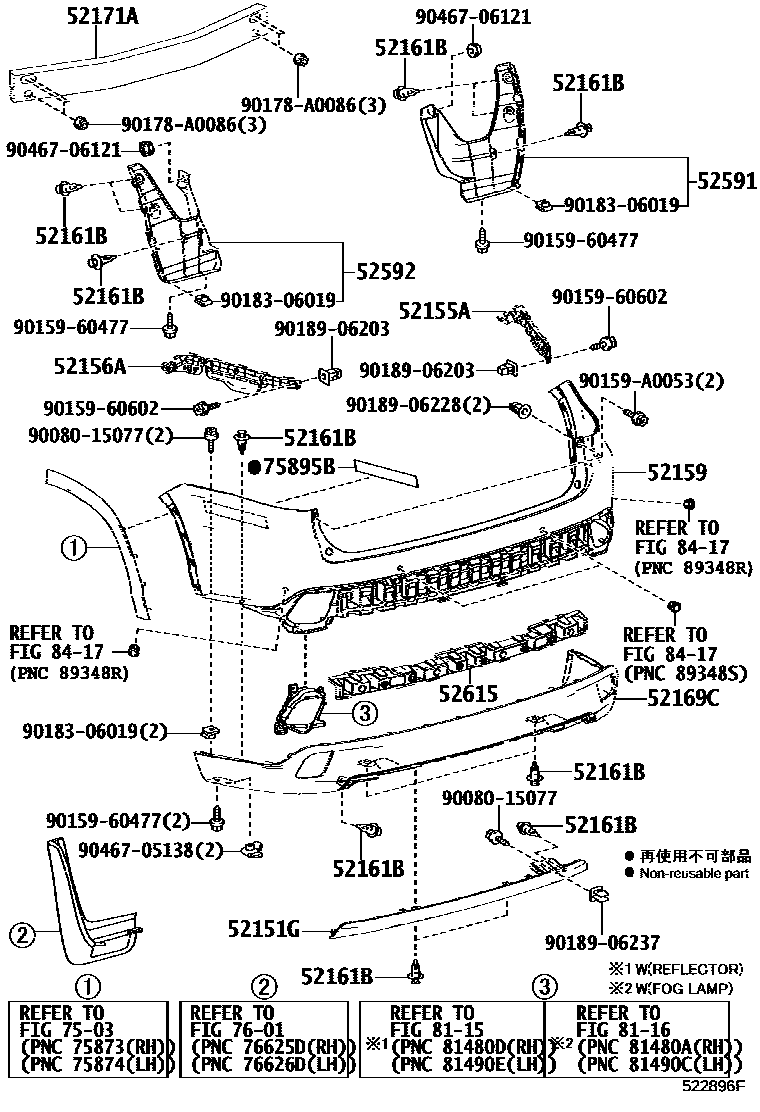

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52151GEXTENSION, REAR BUMPER

main52151-0E040iASU50,GSU5#¥6,100201312-201611

main52151-0E080iASU50,GSU5#..LIMD201611

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0E070iASU50,GSU5#¥4,880201312-201611

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0E070iASU50,GSU5#¥4,880201312-201611

52159COVER, REAR BUMPER

main52159-0E911iASU50..LE¥42,000201312-201611

PAINT REQ.

main52159-0E912iGSU5#..ARL201312-201611

PAINT REQ.

main52159-0E918iGSU5#;ASU50..LIMD¥42,000201611

PAINT REQ.

main52159-0E918iGSU5#;ASU50..LIMD¥42,000201611

PAINT REQ.,LEATHER PACKAGE

52161BPIECE, REAR BUMPER

main52161-02020iASU50,GSU5#¥200201312-201611

52169CCOVER, REAR BUMPER, LOWER

main52169-0E070iASU50,GSU5#¥14,500201312-201611

NO PAINT REQ.

main52169-0E100iASU50,GSU5#..LIMD201611

NO PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-0E080iASU50,GSU5#201312-201611

52591SEAL, REAR BUMPER SIDE, RH

main52591-0E060iASU50,GSU5#201312-201611

52592SEAL, REAR BUMPER SIDE, LH

main52592-0E060iASU50,GSU5#201312-201611

52615ABSORBER, REAR BUMPER ENERGY

main52615-0E080iASU50,GSU5#¥9,600201312-201611

7503

75895BTAPE, MOULDING, NO.2

main75895-0E010iASU50,GSU5#201312-201704

7601

8115

8116

8417

9008015077

main90080-15077¥60

9015960477

main90159-60477¥70

9015960602

main90159-60602¥60

90159A0053

main90159-A0053

90178A0086

main90178-A0086¥120

9018306019

main90183-06019¥80

9018906203

main90189-06203¥70

9018906228

main90189-06228¥70

9018906237

main90189-06237¥100

9046705138

main90467-05138¥200

9046706121

main90467-06121¥220

27 parts on this diagram · 2 diagrams in section
