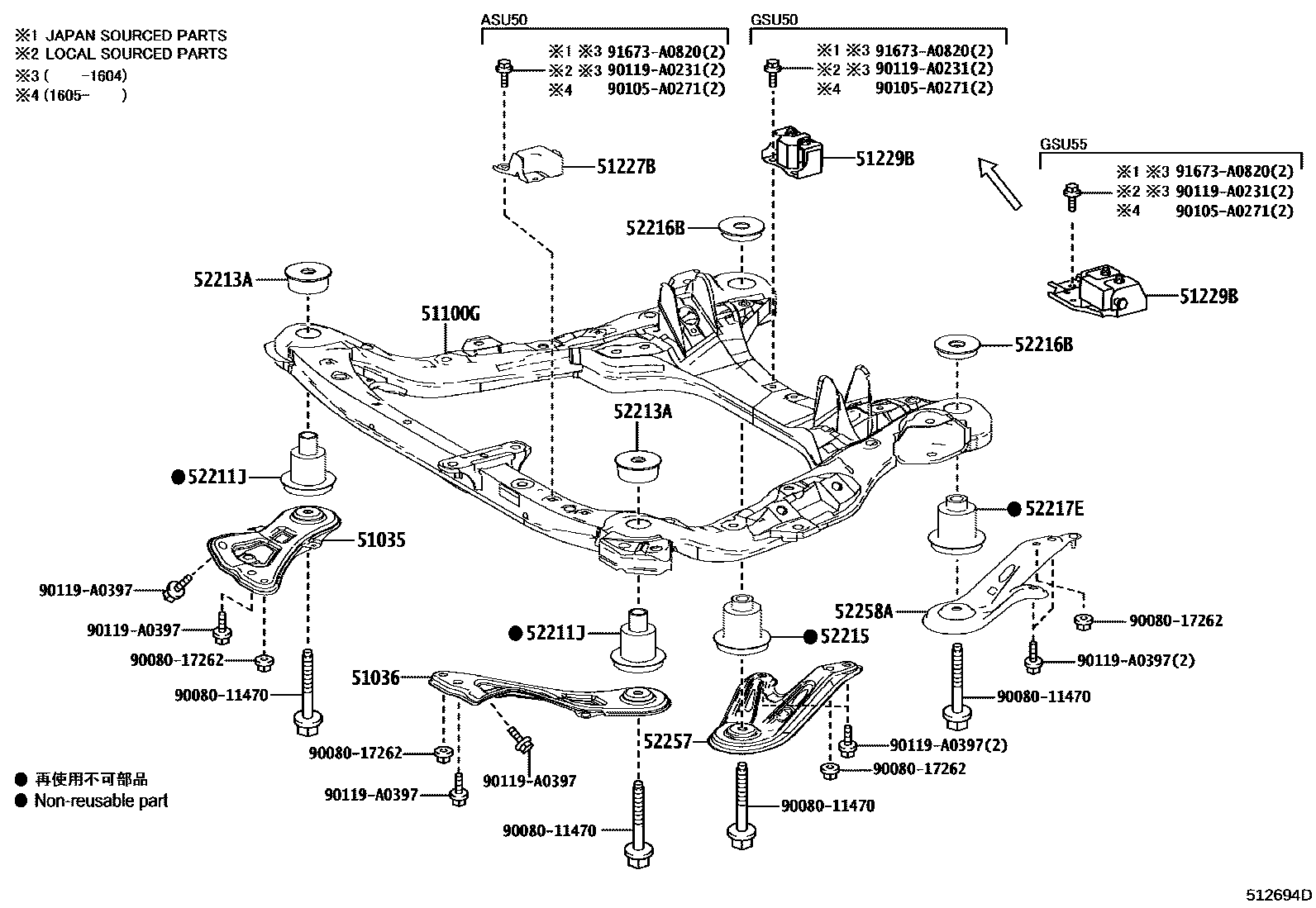

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1FRONT SUSPENSION MEMBER 0002 1REAR SUSPENSION MEMBER 0003 1ENGINE UNDER COVER 0004 1ENGINE UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0E050iASU50,GSU5#201312-201611

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0E050iASU50,GSU5#201312-201611

51100GFRAME ASSY, FRONT

main51100-0E061iASU50,GSU5#201312-201402

sub51100-0E062

sub90119-08D06¥110

main51100-0E062iASU50,GSU5#201402-201508

sub51100-0E063

main51100-0E063iASU50,GSU5#201509-201911

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-0E011iASU50201312-201611

51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC

main51227-0E080iGSU50201312-201611

main51227-0E090iGSU55201312-201611

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-0E010iASU50,GSU5#201312-201611

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-0E010iASU50,GSU5#201312-201611

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06030iASU50,GSU5#201312-201611

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06030iASU50,GSU5#201312-201611

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06010iASU50,GSU5#201312-201611

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-0E010iASU50,GSU5#201312-201611

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-0E011iASU50,GSU5#201312-201611

9008011470

main90080-11470

9008017262

main90080-17262

90105A0271

main90105-A0271

90119A0231

main90119-A0231

90119A0397

main90119-A0397

91673A0820

main91673-A0820¥80

18 parts on this diagram · 4 diagrams in section
