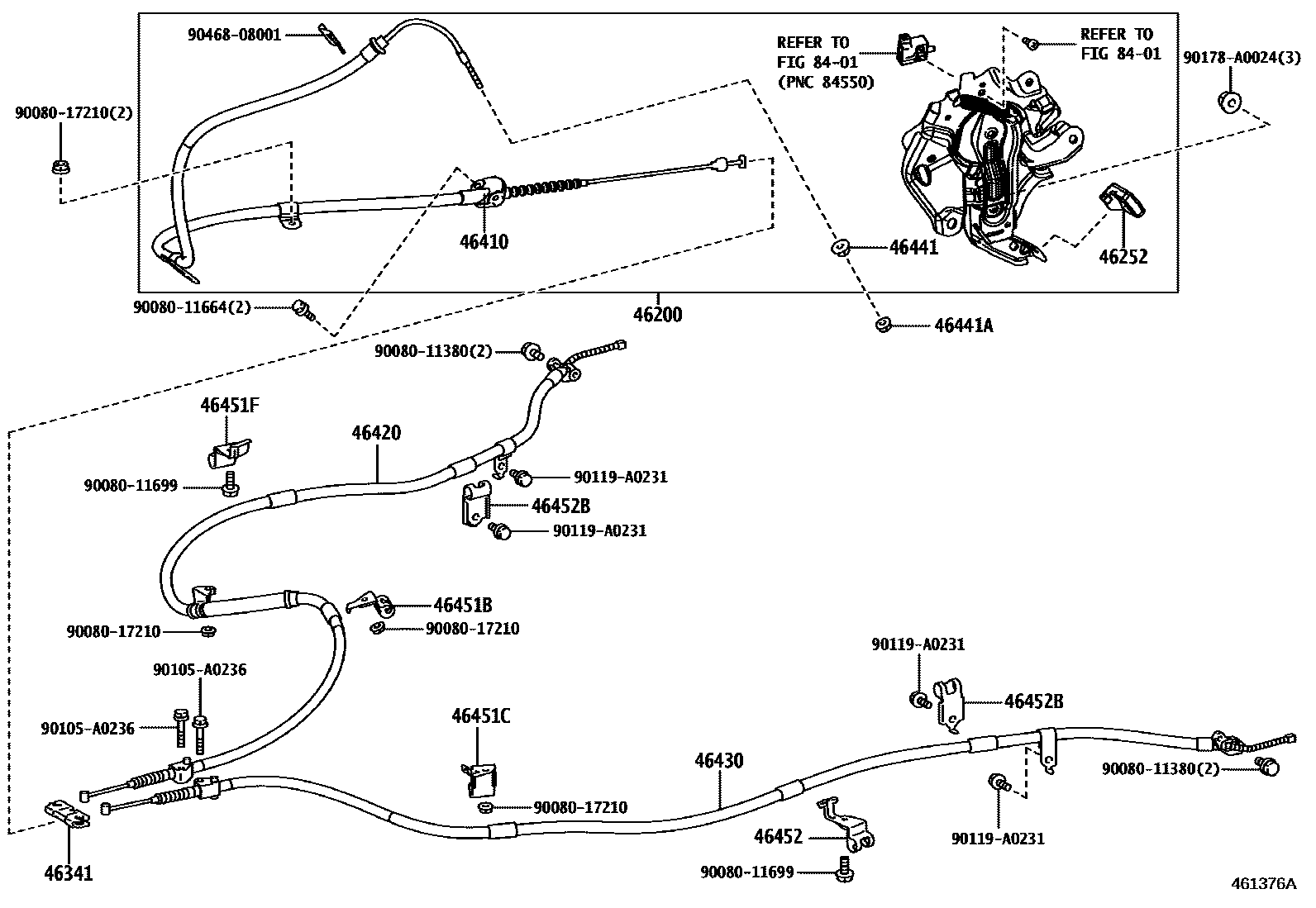

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0E050iASU50,GSU55..RUS201312-201611

main46200-0E060iGSU5#..ARL201312-201611

46252PAD, PARKING PEDAL

main46252-22010iASU50,GSU5#201312-201611

46341EQUALIZER, PARKING BRAKE

main46341-48010iASU50,GSU5#201312-201611

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0E060iASU50,GSU55..RUS201312-201611

main46410-0E080iGSU5#..ARL201312-201611

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0E060iASU50,GSU5#201312-201611

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0E060iASU50,GSU5#201312-201611

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iASU50,GSU5#201312-201611

46441ANUT, WIRE ADJUSTING, NO.2

main90178-A0023iASU50,GSU5#201312-201611

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-0E021iASU50,GSU5#201312-201611

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-0E030iASU50,GSU5#201312-201611

46451FBRACKET, CABLE SUPPORT

main46451-0E100iASU50,GSU5#201312-201611

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-0E050iASU50,GSU5#201312-201611

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-0E060iASU50,GSU5#201312-201611

8401

9008011380

main90080-11380

9008011664

main90080-11664

9008011699

main90080-11699

9008017210

main90080-17210

90105A0236

main90105-A0236

90119A0231

main90119-A0231

90178A0024

main90178-A0024

9046808001

main90468-08001

22 parts on this diagram · 3 diagrams in section
