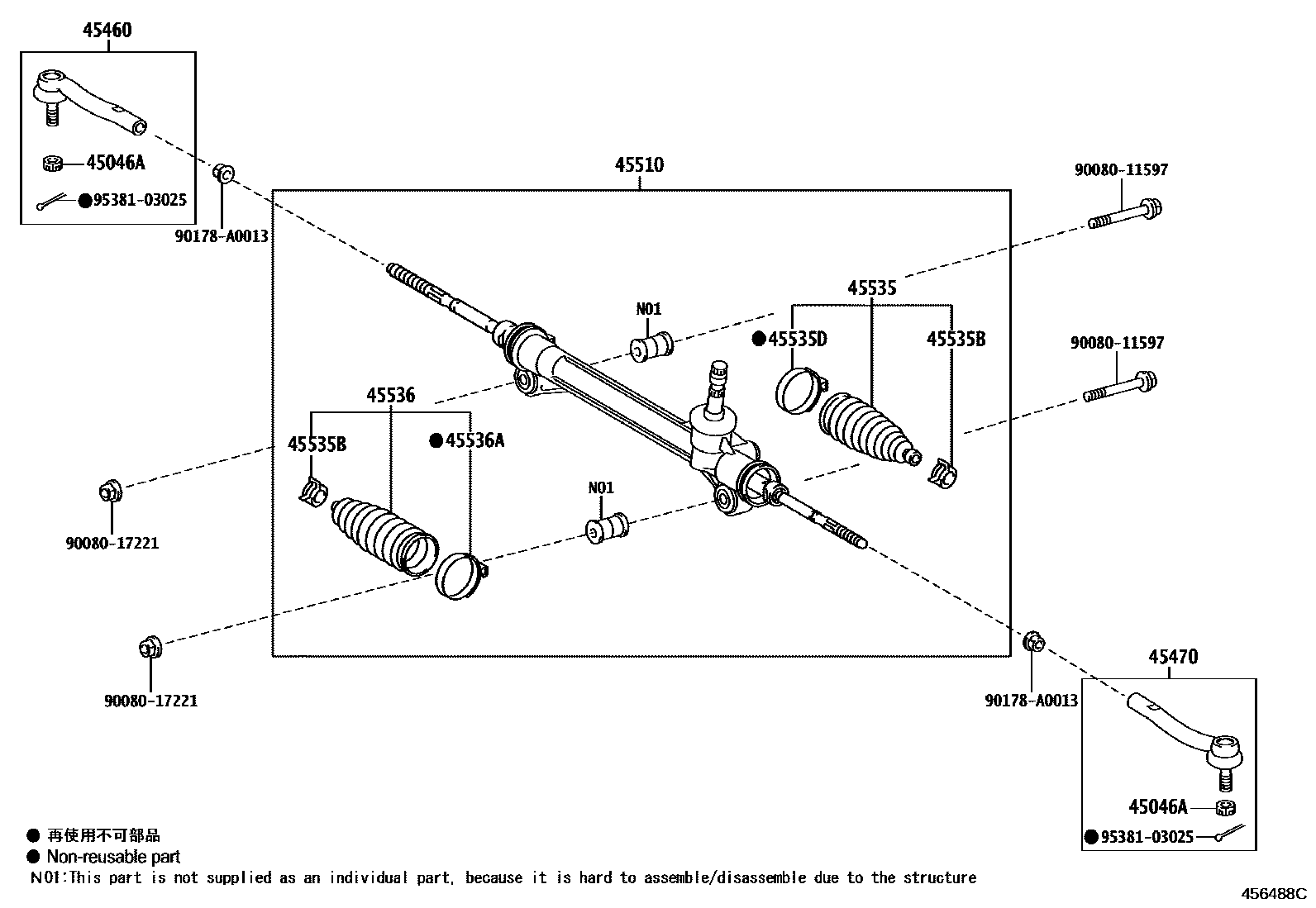

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220iASU50,GSU5#201312-201611

45460ROD ASSY, TIE, RH

main45460-09180iASU50,GSU5#201312-201611

45470ROD ASSY, TIE, LH

main45470-09020iASU50,GSU5#201312-201611

45510GEAR ASSY, STEERING

main45510-0E040iASU50,GSU55..RUS201312-201611

sub45510-0E041

main45510-0E041iASU50,GSU55..RUS201611-201805

sub45510-0E042

main45510-0E042iASU50,GSU55..RUS201806

main45510-0E050iGSU5#..ARL201312-201805

main45510-0E051iGSU5#..ARL201806

45535BOOT, STEERING RACK, NO.1

main45535-49035iASU50,GSU5#201312-201611

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42010iASU50,GSU5#201312-201611

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-48010iASU50,GSU5#201312-201611

45536BOOT, STEERING RACK, NO.2

main45535-49035iASU50,GSU5#201312-201611

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-48010iASU50,GSU5#201312-201611

9008011597

main90080-11597

9008017221

main90080-17221

90178A0013

main90178-A0013

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
