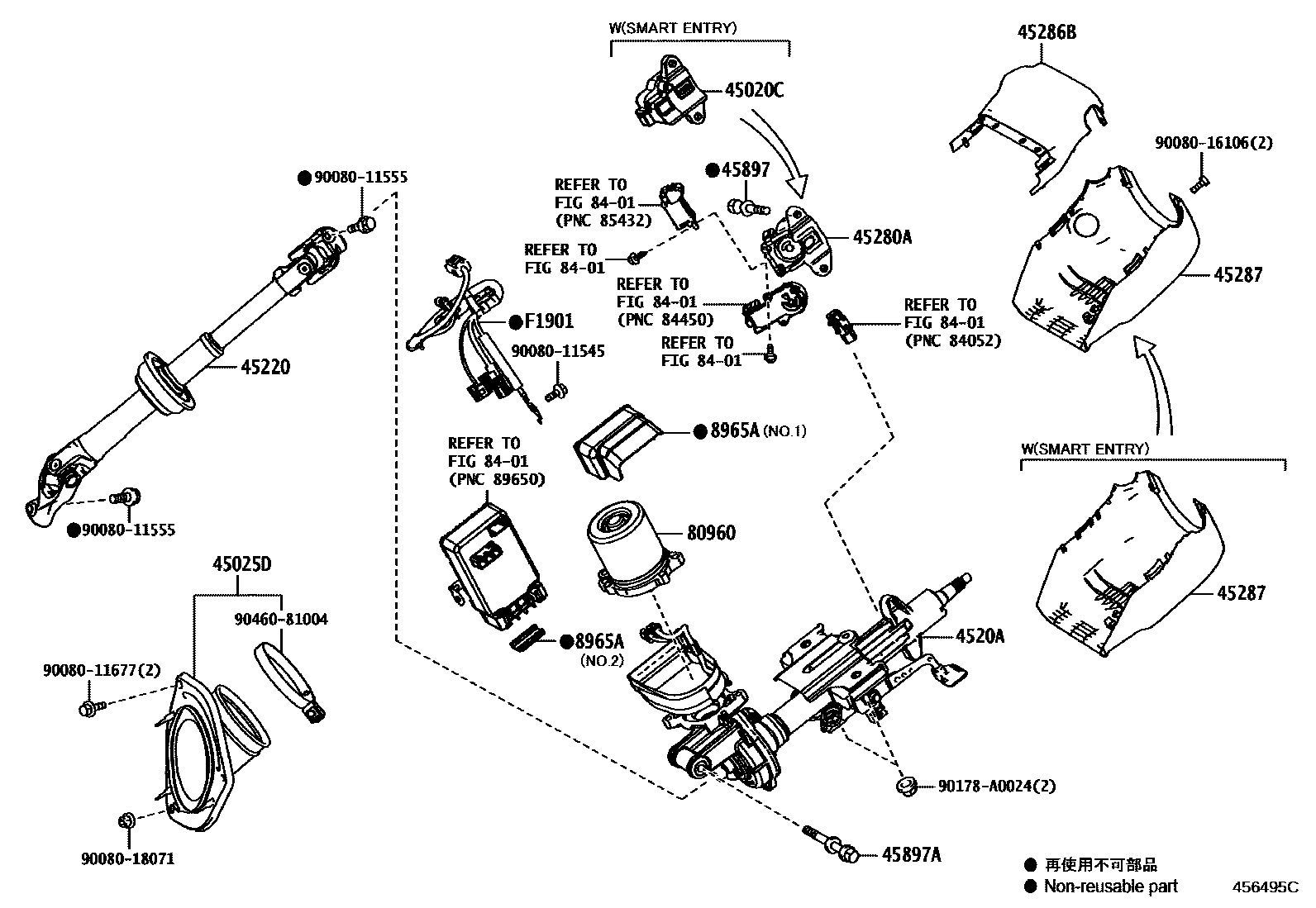

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0E030iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611-201911

LEATHER PACKAGE

main45020-0E030iASU50,GSU5#..LIMD201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

main45020-0E030iASU50,GSU5#..LIMD201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0E050iASU50,GSU55..RUS201312-201611

main45025-0E060iGSU5#..ARL201312-201611

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0E010iASU50,GSU55..LE..RUS201312-201611

main4520A-0E020iASU50,GSU55..LE..RUS201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON)

main4520A-0E020iGSU55..RUS;ASU50..LIMD201611

LEATHER PACKAGE

main4520A-0E030iGSU5#..LE..ARL201312-201611

main4520A-0E040iGSU5#..LIMD..ARL201611

LEATHER PACKAGE

main4520A-0E040iGSU5#..LE..ARL201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0E070iASU50,GSU55..RUS201312-201611

main45220-0E080iGSU5#..ARL201312-201611

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0R010iGSU55..LE..ARL;ASU50,GSU50..LE201312-201611

45286BCOVER, STEERING COLUMN, UPR

main45286-0E030-C0iGSU55..LE..ARL;ASU50,GSU50..LE201312-201611

BLACK,TRIM2#

main45286-0E030-C0iGSU55..LE..ARL;ASU50,GSU50..LE201312-201611

BLACK,TRIM0#,2#

main45286-0E030-C0iGSU55..LE..RUS201611

BLACK,TRIM0#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-0E030-C0iGSU55..LE..ARL;ASU50,GSU50..LE201312-201611

BLACK,TRIM2#

main45287-0E040-C0iASU50,GSU5#..LIMD201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK,TRIM2#

main45287-0E040-C0iASU50,GSU5#..LIMD201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLACK,TRIM0#,2#

main45287-0E040-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main45287-0E040-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

main45287-0E040-C0iASU50,GSU5#..LIMD201611

LEATHER PACKAGE,BLACK,TRIM0#,2#

main45287-0E040-C0iGSU55..LE..RUS201611

LEATHER PACKAGE,BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-08010iASU50,GSU5#201312-201611

45897ABOLT, TILT STEERING PAWL SET

main45897-0T010iASU50,GSU5#201312-201611

80960MOTOR ASSY, POWER STEERING

main80960-0E070iASU50,GSU55..RUS201312-201611

main80960-0E080iGSU5#..ARL201312-201611

8401

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-06020iASU50,GSU5#201312-201611

NO.1

sub8965A-06040

main8965A-06030iASU50,GSU5#201312-201611

NO.2

sub8965A-06050

F1901WIRE SUB-ASSY, COMPUTER

mainF19010E010iASU50,GSU55..RUS201312-201611

mainF19010E020iGSU5#..ARL201312-201611

9008011545

main90080-11545

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

90178A0024

main90178-A0024

9046081004

main90460-81004

20 parts on this diagram · 2 diagrams in section
