FRONT AXLE HUB

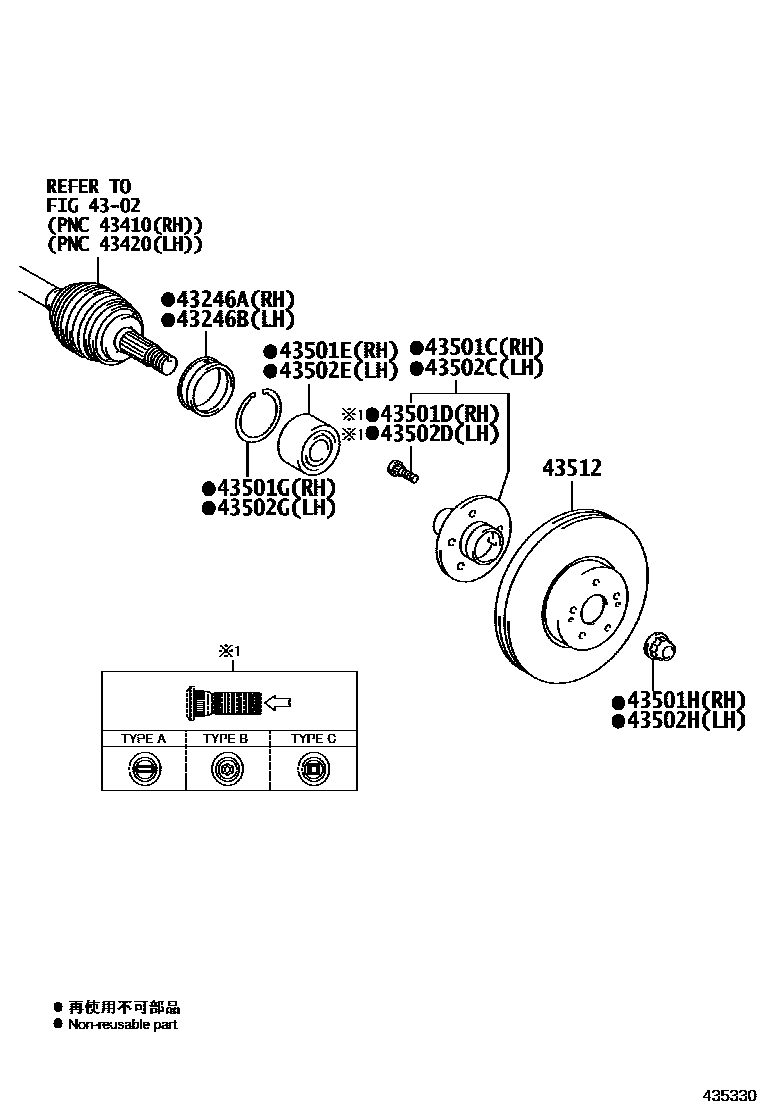

Parts diagram

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-48010i201312-201407

main43246-48011i201408-201911

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-48010i201312-201407

main43246-48011i201408-201611

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0E010i201312-201611

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i201312-201611

TYPE A

main90942-02049i201611

TYPE A:REFER ILLUST.

main90942-02081i201312-201611

TYPE B

main90942-02081i201611

TYPE B:REFER ILLUST.

main90942-02082i201611

TYPE C:REFER ILLUST.

main90942-02082i201312-201611

TYPE C

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-A0002i201312-201611

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-79002i201312-201611

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90080-17238i201312-201611

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0E010i201312-201611

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i201312-201611

TYPE A

main90942-02049i201611

TYPE A:REFER ILLUST.

main90942-02081i201611

TYPE B:REFER ILLUST.

main90942-02081i201312-201611

TYPE B

main90942-02082i201611

TYPE C:REFER ILLUST.

main90942-02082i201312-201611

TYPE C

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-A0002i201312-201611

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-79002i201312-201611

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90080-17238i201312-201611

43512DISC, FRONT

main43512-0E030i201312-201611

14 parts on this diagram · 1 diagram in section
