DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
LEATHER PACKAGE
42601WHEEL, DISC
19X7.5J,#,TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST.
18X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),TYPE E:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE,TYPE F:REFER ILLUST.
18X7.5J,#,TYPE F:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE,TYPE E:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE & BLACK PACKAGE,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
19X7.5J,#,TIRE & DISK WHEEL-245/55R19 CHROME PAINTED,TYPE D:REFER ILLUST.
18X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),TYPE C:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),TYPE E:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
18X7.5J,#,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE F:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE,TYPE E:REFER ILLUST.
19X7.5J,#,TYPE E:REFER ILLUST.
19X7.5J,#,LEATHER PACKAGE & BLACK PACKAGE,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
sub90942-A1009
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
LEATHER PACKAGE
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
LEATHER PACKAGE
42611GVALVE (FOR TUBELESS TIRE)
LEATHER PACKAGE & BLACK PACKAGE
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
LEATHER PACKAGE
42611WCAP, TIRE VALVE (FOR SPARE)
LEATHER PACKAGE

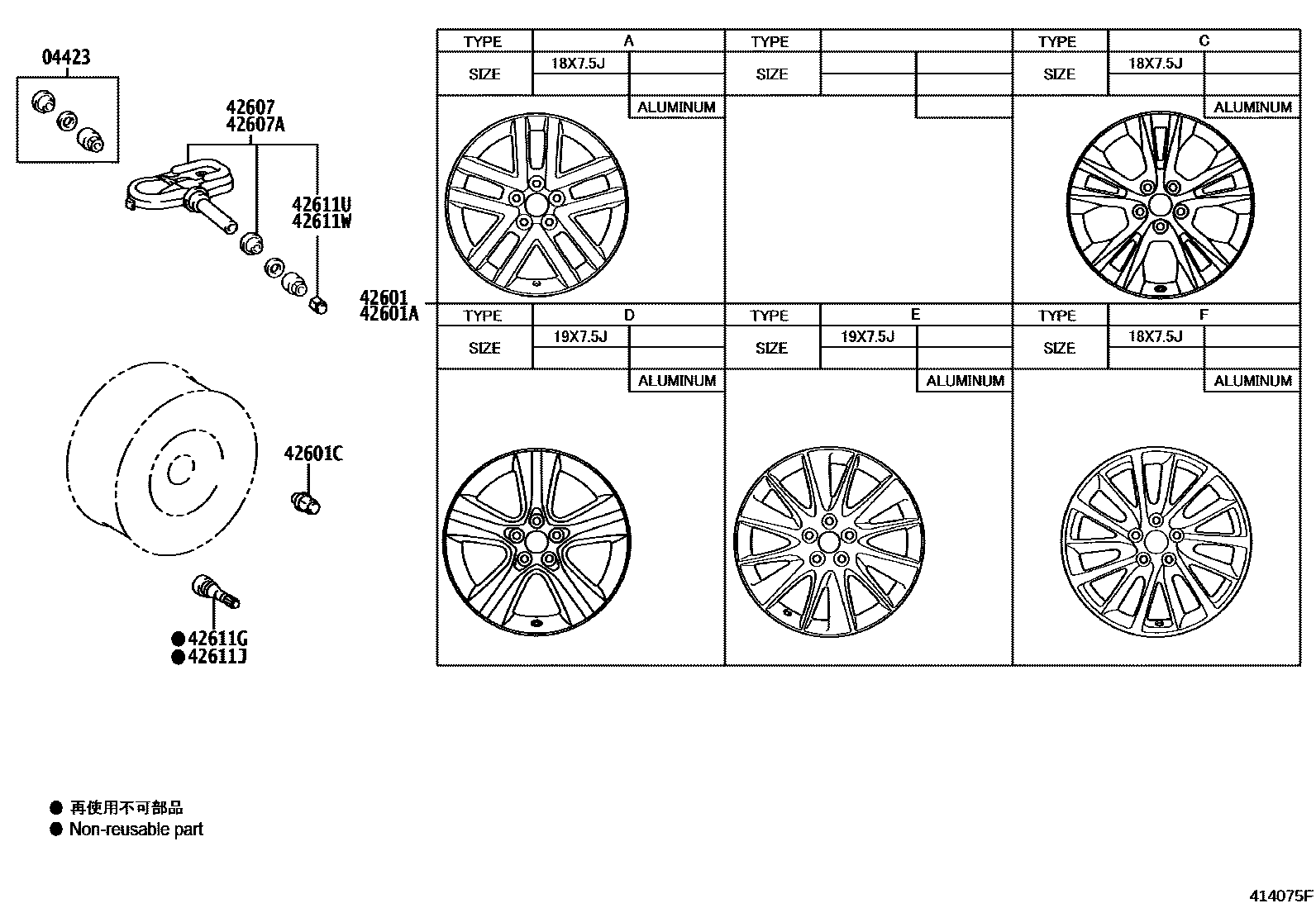

10 parts on this diagram · 2 diagrams in section
