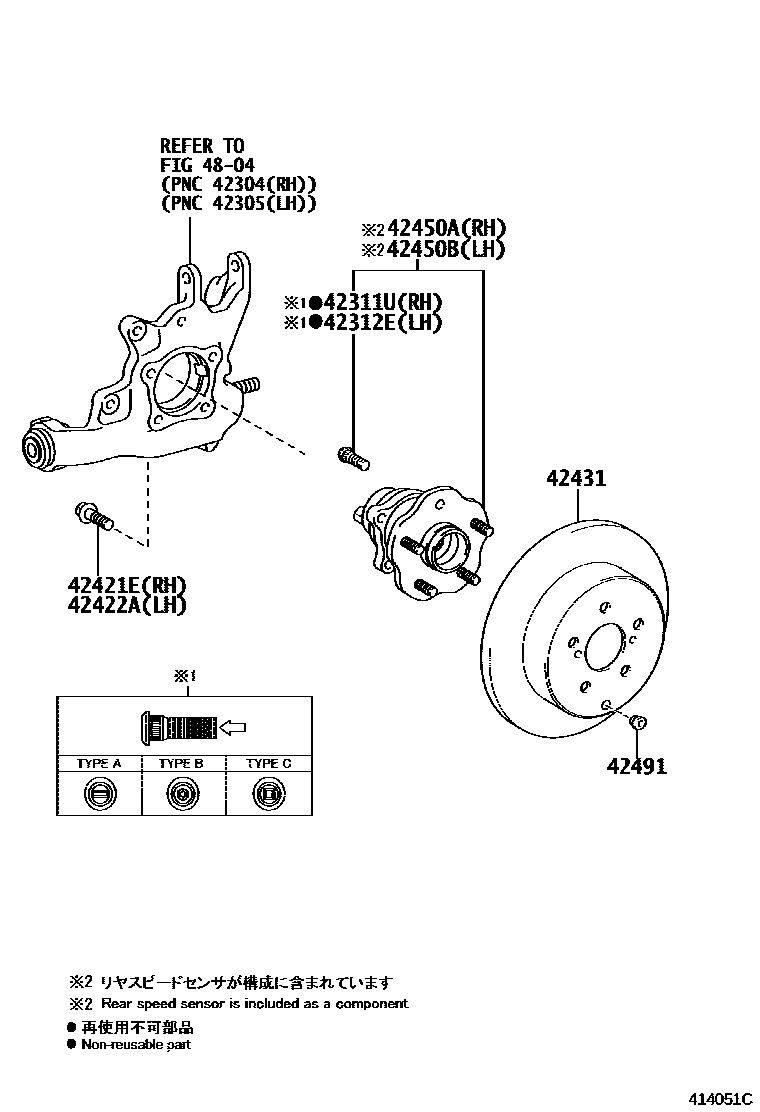

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iASU50,GSU5#201312-201611

TYPE A:REFER ILLUST.

main90942-02081×5iASU50,GSU5#201611

TYPE B:REFER ILLUST.

main90942-02082×5iASU50,GSU5#201312-201611

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iASU50,GSU5#201611

TYPE A:REFER ILLUST.

main90942-02081×5iASU50,GSU5#201611

TYPE B:REFER ILLUST.

main90942-02082×5iASU50,GSU5#201312-201611

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-14097×4iASU50,GSU5#201312-201611

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-14097×4iASU50,GSU5#201312-201611

42431DISC, REAR

main42431-0E020×2iASU50,GSU5#201312-201611

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0E050iASU50,GSU50201312-201611

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0E050iASU50,GSU50201312-201611

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iASU50,GSU5#201312-201611

4804

9 parts on this diagram · 3 diagrams in section
