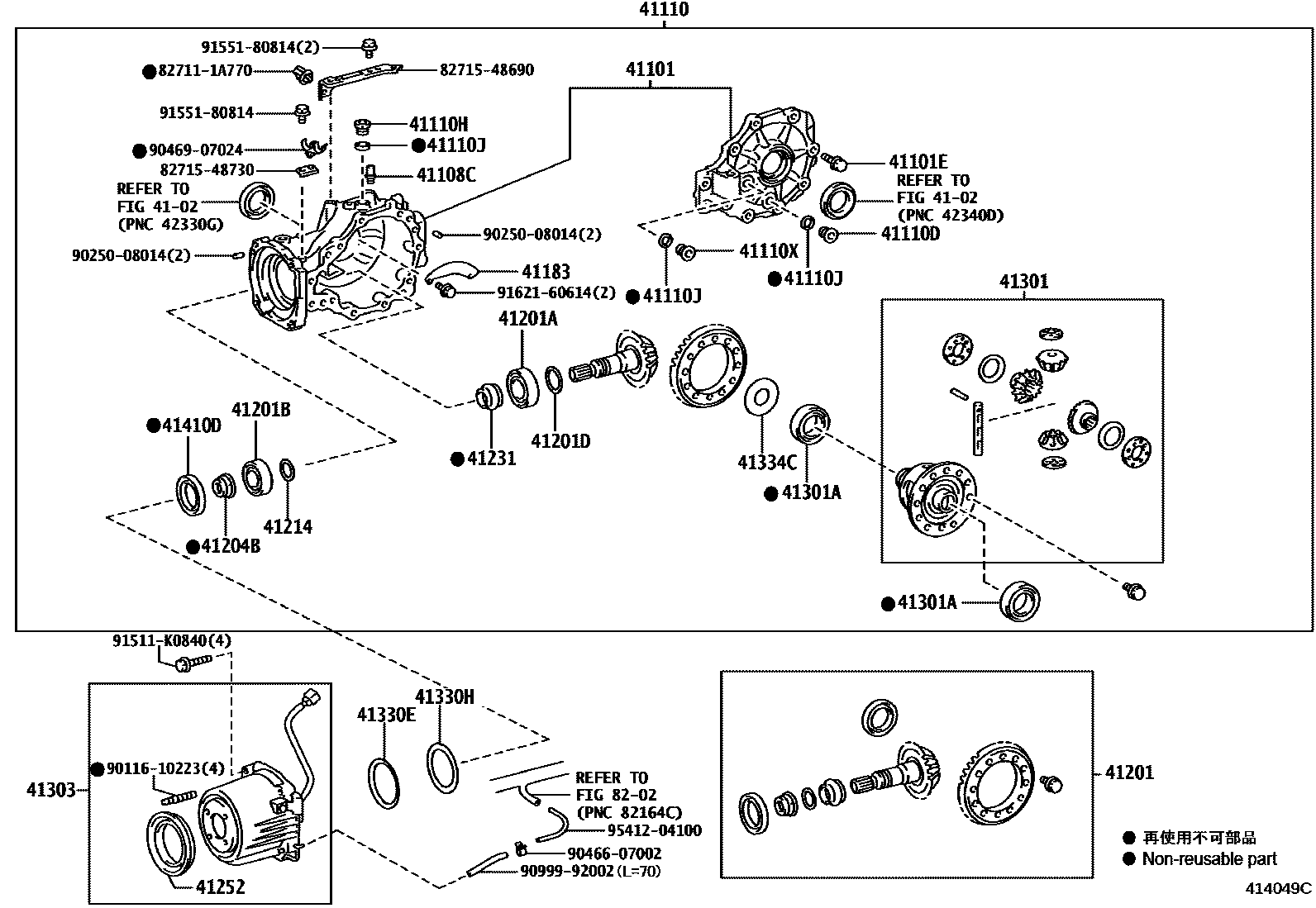

REAR AXLE HOUSING & DIFFERENTIAL
4102
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:18=2.277
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110XPLUG (FOR DIFFERENTIAL INSPECTION)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.70,MARK 41
T=1.71,MARK 42
T=1.72,MARK 43
T=1.73,MARK 44
T=1.74,MARK 45
T=1.75,MARK 46
T=1.76,MARK 47
T=1.77,MARK 48
T=1.78,MARK 49
T=1.79,MARK 50
T=1.80,MARK 51
T=1.81,MARK 52
T=1.82,MARK 53
T=1.83,MARK 54
T=1.84,MARK 55
T=1.85,MARK 56
T=1.86,MARK 57
T=1.87,MARK 58
T=1.88,MARK 59
T=1.89,MARK 60
T=1.90,MARK 61
T=1.91,MARK 62
T=1.92,MARK 63
T=1.93,MARK 64
T=1.94,MARK 65
T=1.95,MARK 70
T=1.96,MARK 71
T=1.97,MARK 72
T=1.98,MARK 73
T=1.99,MARK 74
T=2.00,MARK 75
T=2.01,MARK 76
T=2.02,MARK 77
T=2.03,MARK 78
T=2.04,MARK 79
T=2.05,MARK 80
T=2.06,MARK 81
T=2.07,MARK 82
T=2.08,MARK 83
T=2.09,MARK 84
T=2.10,MARK 85
T=2.11,MARK 86
T=2.12,MARK 87
T=2.13,MARK 88
T=2.14,MARK 89
T=2.15,MARK 90
T=2.16,MARK 91
T=2.17,MARK 92
T=2.18,MARK 93
T=2.19,MARK 94
T=2.20,MARK 95
T=2.21,MARK 96
T=2.22,MARK 97
T=2.23,MARK 98
T=2.24,MARK 99
T=2.25,MARK 00
41204BNUT (FOR REAR DRIVE PINION)
OD=41.6
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=1.75,MARK 75
T=1.78,MARK 76
T=1.81,MARK 77
T=1.84,MARK 78
T=1.87,MARK 79
T=1.90,MARK 80
T=1.93,MARK 81
T=1.96,MARK 82
T=1.99,MARK 83
T=2.02,MARK 84
T=2.05,MARK 85
T=2.08,MARK 86
T=2.11,MARK 88
T=2.14,MARK 89
T=2.17,MARK 90
T=2.20,MARK 91
T=2.23,MARK 92
T=2.26,MARK 93
T=2.29,MARK 94
T=2.32,MARK 95
T=2.35,MARK 96
T=2.38,MARK 97
T=2.41,MARK 98
T=2.44,MARK 99
T=2.47,MARK 00
T=2.50,MARK 01
T=2.53,MARK 02
T=2.56,MARK 03
T=2.59,MARK 04
T=2.62,MARK 05
T=2.65,MARK 06
T=2.68,MARK 07
T=2.71,MARK 08
T=2.74,MARK 09
T=2.77,MARK 10
T=2.80,MARK 11
T=2.83,MARK 12
T=2.86,MARK 13
T=2.89,MARK 14
41410DSEAL, OIL DIAPHRAGM
8202
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
8271548690BRACKET,WIRING HARNESS CLAMP
main82715-48690
8271548730BRACKET,WIRING HARNESS CLAMP
main82715-48730
9011610223
main90116-10223
9025008014
main90250-08014
9046607002
main90466-07002
9046907024
main90469-07024
9099992002
main90999-92002
91511K0840
main91511-K0840
9155180814
main91551-80814
9162160614
main91621-60614
9541204100
main95412-04100
38 parts on this diagram · 2 diagrams in section
