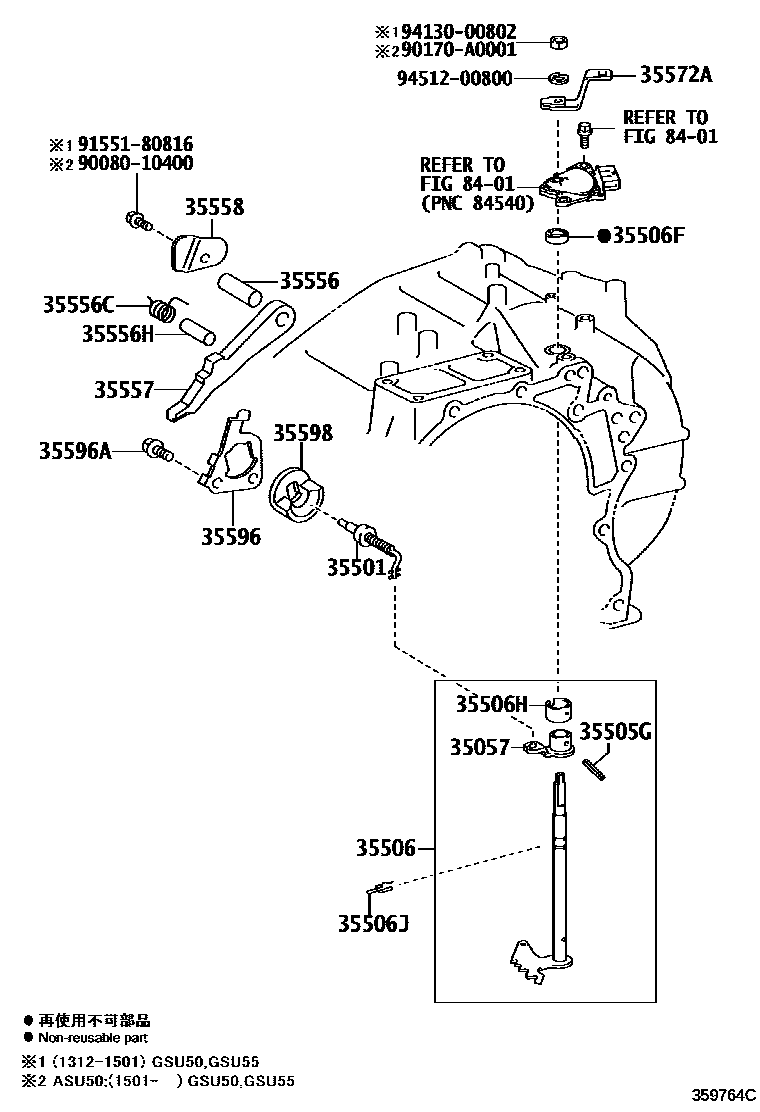

THROTTLE LINK & VALVE LEVER (ATM)
35057LEVER SUB-ASSY,PARKING LOCK
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
NO.2
*349
*325
NO.1,AISIN:SEE 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
(J)
(L)
(J)
(L)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
(J)
(L)
35556SHAFT, PARKING LOCK PAWL
*325
*349
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)
(J)
(L)
35556HSHAFT, PARKING LOCK PAWL
*325
*349
35557PAWL, PARKING LOCK
35558CLAMP, PAWL SHAFT
(L)
(J)
35572ALEVER, TRANSMISSION CONTROL SHAFT
(L)
(J)
35596PLATE, PAWL STOPPER
(L)
(J)
35596ABOLT (FOR PAWL STOPPER PLATE)
*8-1.25PX16-13.5
*8-1.25PX16-13.5,*325
*8-1.25PX16-13.5
*8-1.25PX16-13.5,*349
35598SLEEVE, PARKING LOCK
(L)
(L)
(J)
(J)
8401
9008010400
90170A0001
main90170-A0001
9155180816
9413000802
9451200800
23 parts on this diagram · 3 diagrams in section
