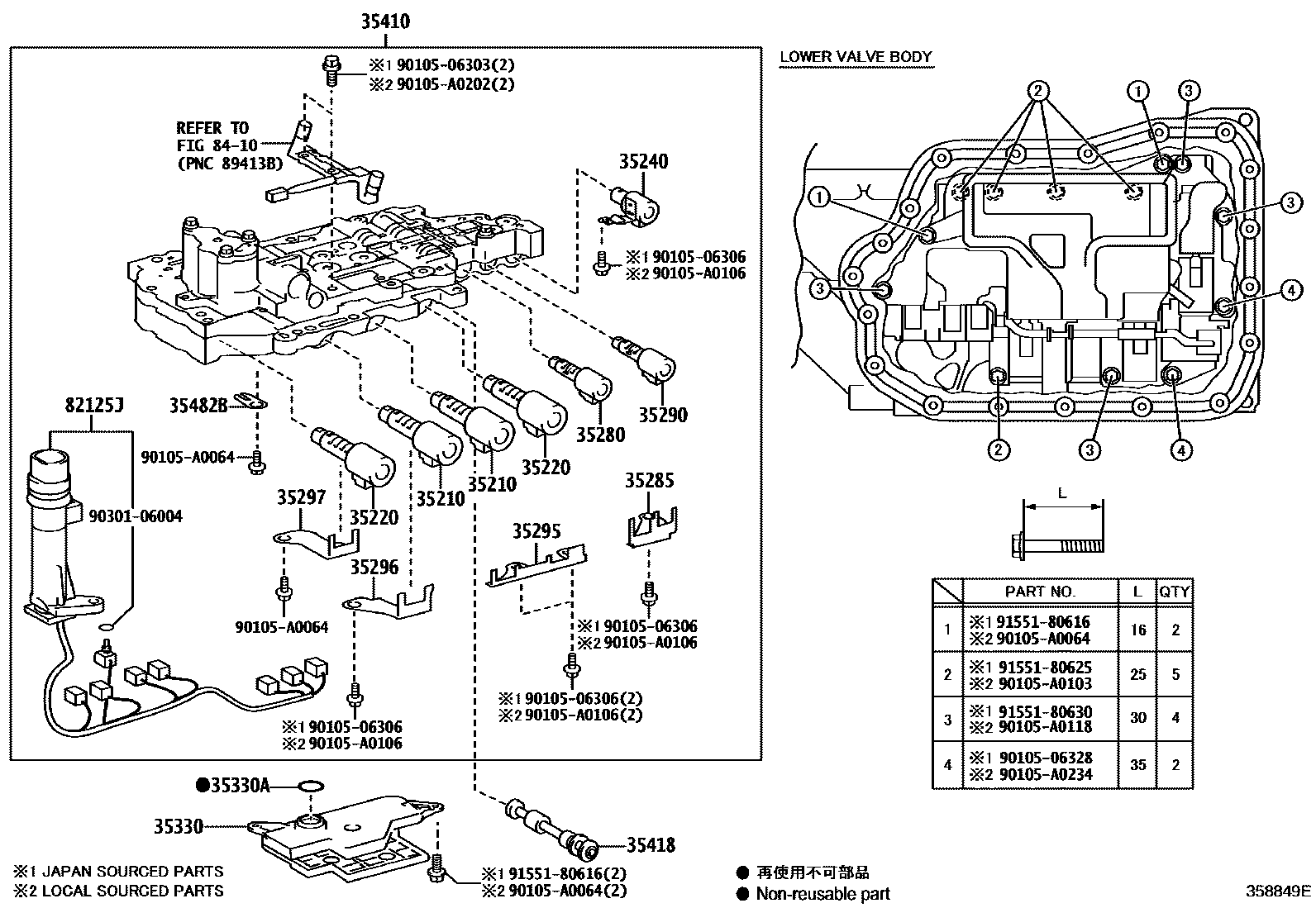

VALVE BODY & OIL STRAINER (ATM)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35220SOLENOID ASSY, CLUTCH CONTROL, NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
(L)
(L)
(J)
(J)
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35295PLATE, SOLENOID LOCK, NO.2
(L)
(J)
35296PLATE, SOLENOID LOCK, NO.3
(L)
(J)
35297PLATE, SOLENOID LOCK, NO.4
(L)
(J)
35330STRAINER ASSY, VALVE BODY OIL
(L)
(J)
35330ARING, O (FOR OIL STRAINER)
*322
*349
*323
*325
35418VALVE, MANUAL
35482BCLAMP, TEMPERATURE SENSOR
(L)
(J)
8410
9010506303
9010506306
9010506328
90105A0064
main90105-A0064
90105A0103
main90105-A0103
90105A0106
main90105-A0106
90105A0118
main90105-A0118
90105A0202
main90105-A0202
90105A0234
main90105-A0234
9030106004
9155180616
9155180625
9155180630
29 parts on this diagram · 4 diagrams in section
