TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

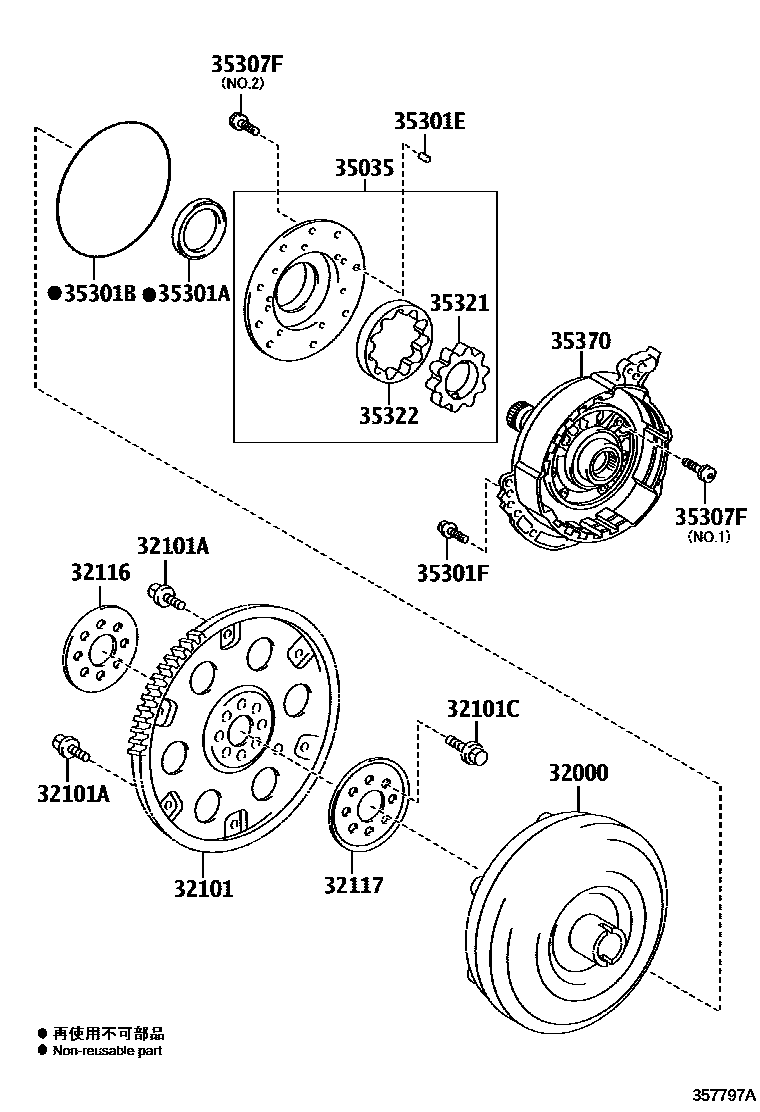

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-06050i201312-201402
sub32000-06051
main32000-06051i201403-201505
sub32000-06052
main32000-06052i201611-201709
(L)
sub32000-33143¥85,900
main32000-06052i201506-201611
sub32000-33143¥85,900
main32000-06070i201808-201911
TMMWV:REFER 35-01
main32000-07022i¥139,000201501-201611
*325
sub32000-33160¥105,000
main32000-33132i¥105,000201312-201501
sub32000-33160¥105,000
main32000-33143i¥85,900201707-201911
(J)
main32000-48060i¥86,400201611-201911
AISIN AW:REFER 35-01
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06050i201312-201611
(L)
main32101-0E010i201312-201611
(L)
main32101-48010i¥13,400201312-201611
(J)
main32101-73010i¥13,400201312-201611
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i¥80201312-201611
*9-1.25PX12.4-7.3,BLACK
main90119-09025i¥80201312-201611
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i¥130201312-201611
*10-1.25PX18-13
main90105-12384i¥100201312-201611
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i¥640201312-201611
main32116-32020i¥1,050201312-201611
32117SPACER, DRIVE PLATE, REAR
main32117-20060i¥840201312-201611
main32117-32020i¥730201312-201611
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-07011i201501-201611
(L)
main35035-0R011i201312-201611
main35035-0R011i201611-201709
*325
main35035-33031i¥16,500201501-201611
(J)
main35035-33031i¥16,500201312-201501
main35035-33043i¥17,800201707
*349
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-43010i¥470201312-201501
main90311-43010i¥470201501-201911
(J)
main90311-51013i¥470201611-201911
main90311-A0010i201501-201709
(L)
main90311-A0010i201312-201611
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-06010i201611-201709
(L)
main35697-06010i201312-201611
main35697-33010i¥280201707
(J)
main35697-33010i¥280201312-201501
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08040i¥100201312-201501
main90250-08040i¥100201501-201611
(J)
main90250-08052i¥100201707
*349
main90250-A0023i201312-201611
main90250-A0023i201501-201611
(L)
main90250-A0023i201611-201709
*325
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-A0120i201611-201709
*8-1.25PX35-22,(L)
main90105-A0120i201312-201611
*8-1.25PX35-22
main91551-80835i¥80201312-201501
*8-1.25PX35-22
main91551-80835i¥80201707
*8-1.25PX35-22,(J)
35307FBOLT (FOR STATOR SHAFT)
main90148-60064i¥70201501-201611
(J),NO.1
main90148-60064i¥70201312-201501
NO.1
main90148-60065i¥70201312-201501
NO.2
main90148-60065i¥70201501-201611
(J),NO.2
main90148-60067i¥70201707
NO.1,*349
main90148-60068i¥70201707
NO.2,*349
main90148-A0010i201501-201611
(L),NO.2
main90148-A0010i201611-201709
NO.2,*325
main90148-A0010i201312-201611
NO.2
main90148-A0011i201501-201611
(L),NO.1
main90148-A0011i201611-201709
NO.1,*325
main90148-A0011i201312-201611
NO.1
35321GEAR, FRONT OIL PUMP DRIVE
main35321-06160i201808
T=16.66,(L)
main35321-0R010i201501-201611
T=11.567,MARK 1,(L)
main35321-0R020i201501-201611
T=11.567,MARK 2,(L)
main35321-0R030i201501-201611
T=11.567,MARK 3,(L)
main35321-0R040i201501-201611
T=11.567,MARK 4,(L)
main35321-0R050i201501-201611
T=11.567,MARK 5,(L)
main35321-0R060i201312-201611
T=11.567,MARK 1
main35321-0R060i201611-201709
T=11.567,MARK 1,(L)
main35321-0R070i201611-201709
T=11.567,MARK 2,(L)
main35321-0R070i201312-201611
T=11.567,MARK 2
main35321-0R080i201312-201611
T=11.567,MARK 3
main35321-0R080i201611-201709
T=11.567,MARK 3,(L)
main35321-0R090i201611-201709
T=11.567,MARK 4,(L)
main35321-0R090i201312-201611
T=11.567,MARK 4
main35321-0R100i201312-201611
T=11.567,MARK 5
main35321-0R100i201611-201709
T=11.567,MARK 5,(L)
main35321-33111i¥2,670201312-201501
T=11.567,MARK 1
main35321-33111i¥2,670201501-201611
T=11.567,MARK 1,(J)
main35321-33121i¥2,670201501-201611
T=11.567,MARK 2,(J)
main35321-33121i¥2,670201312-201501
T=11.567,MARK 2
main35321-33131i¥2,670201501-201611
T=11.567,MARK 3,(J)
main35321-33131i¥2,670201312-201501
T=11.567,MARK 3
main35321-33141i¥2,670201501-201611
T=11.567,MARK 4,(J)
main35321-33141i¥2,670201312-201501
T=11.567,MARK 4
main35321-33151i¥2,670201501-201611
T=11.567,MARK 5,(J)
main35321-33151i¥2,670201312-201501
T=11.567,MARK 5
main35321-48110i¥2,490201802-201905
T=16.66
main35321-48110i¥2,490201611-201905
T=16.66,(J)
main35321-73010i¥3,330201707
T=11.567,MARK 1,(J)
main35321-73020i¥3,330201707
T=11.567,MARK 2,(J)
main35321-73030i¥3,330201707
T=11.567,MARK 3,(J)
main35321-73040i¥3,330201707
T=11.567,MARK 4,(J)
main35321-73050i¥3,330201707
T=11.567,MARK 5,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-06160i201808
T=16.66,(L)
main35322-0R010i201501-201611
T=11.567,MARK 1,(L)
main35322-0R020i201501-201611
T=11.567,MARK 2,(L)
main35322-0R030i201501-201611
T=11.567,MARK 3,(L)
main35322-0R040i201501-201611
T=11.567,MARK 4,(L)
main35322-0R050i201501-201611
T=11.567,MARK 5,(L)
main35322-0R060i201611-201709
T=11.567,MARK 1,(L)
main35322-0R060i201312-201611
T=11.567,MARK 1
main35322-0R070i201312-201611
T=11.567,MARK 2
main35322-0R070i201611-201709
T=11.567,MARK 2,(L)
main35322-0R080i201312-201611
T=11.567,MARK 3
main35322-0R080i201611-201709
T=11.567,MARK 3,(L)
main35322-0R090i201611-201709
T=11.567,MARK 4,(L)
main35322-0R090i201312-201611
T=11.567,MARK 4
main35322-0R100i201611-201709
T=11.567,MARK 5,(L)
main35322-0R100i201312-201611
T=11.567,MARK 5
main35322-33110i¥2,490201501-201611
T=11.567,MARK 1,(J)
main35322-33110i¥2,490201312-201501
T=11.567,MARK 1
main35322-33120i¥2,490201312-201501
T=11.567,MARK 2
main35322-33120i¥2,490201501-201611
T=11.567,MARK 2,(J)
main35322-33130i¥2,490201312-201501
T=11.567,MARK 3
main35322-33130i¥2,490201501-201611
T=11.567,MARK 3,(J)
main35322-33140i¥2,490201501-201611
T=11.567,MARK 4,(J)
main35322-33140i¥2,490201312-201501
T=11.567,MARK 4
main35322-33150i¥2,490201312-201501
T=11.567,MARK 5
main35322-33150i¥2,490201501-201611
T=11.567,MARK 5,(J)
main35322-48110i¥2,490201802-201905
T=16.66
main35322-48110i¥2,490201611-201905
T=16.66,(J)
main35322-73010i¥3,330201707
T=11.567,MARK 1,(J)
main35322-73020i¥3,330201707
T=11.567,MARK 2,(J)
main35322-73030i¥3,330201707
T=11.567,MARK 3,(J)
main35322-73040i¥3,330201707
T=11.567,MARK 4,(J)
main35322-73050i¥3,330201707
T=11.567,MARK 5,(J)
35370SHAFT ASSY, STATOR
main35370-06040i201808
TMMWV:REFER 35-01
main35370-07010i201501-201611
(L)
main35370-0R011i201611-201709
*325
main35370-0R011i201312-201611
main35370-33031i¥16,500201312-201501
main35370-33031i¥16,500201501-201611
(J)
main35370-33043i¥16,500201707
*349
main35370-48030i¥19,800201611-201905
TOYOTA:REFER 35-01
sub35370-48040¥14,900
main35370-48040i¥14,900201611-201802
AISIN AW:REFER 35-01
main35370-48040i¥14,900201802-201905
