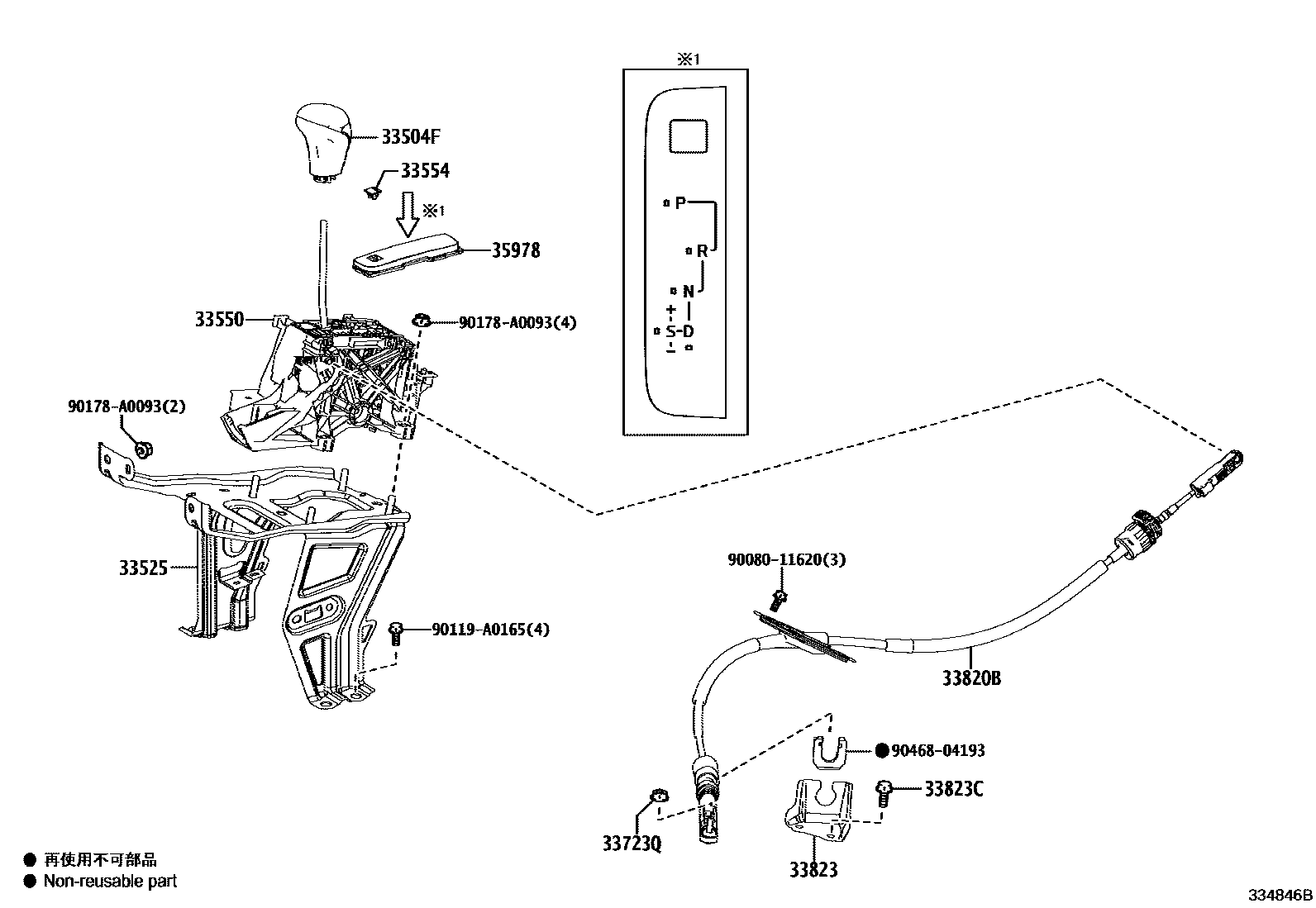

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0E130iASU50,GSU55..LE..RUS201404-201408

main33504-0E130-C1iASU50,GSU5#..LE201312-201404

BLACK,TRIM2#

sub33504-0E130

main33504-0E130-C2iGSU5#..LE..ARL201404-201611

BLACK,TRIM2#

sub33504-0E130

main33504-0E140-C1iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM0#,2#

main33504-0E140-C1iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

main33504-0E140-C1iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,BLACK,TRIM2#

33525SUPPORT, SHIFT LEVER

main58123-0E030iASU50,GSU55..RUS201312-201611

main58123-0E040iGSU5#..ARL201312-201611

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-0E120iASU50,GSU55..LE..RUS201312-201611

main33550-0E130iGSU55..RUS;ASU50..LIMD201611

LEATHER PACKAGE

main33550-0E130iASU50,GSU55..LIMD..RUS201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON)

main33550-0E140iGSU5#..LE..ARL201312-201611

main33550-0E150iGSU5#..LIMD..ARL201312-201611

WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

main33550-0E150iGSU5#..LIMD..ARL201611

LEATHER PACKAGE

33554CAP, SHIFT LEVER

main33554-0E080-C0iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM0#,2#

main33554-0E080-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main33554-0E080-C0iASU50,GSU5#201611

BLACK

33723QNUT (FOR CONNECTING ROD SWIVEL)

main90080-17229iASU50,GSU5#201312-201611

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0E080iGSU5#201611

main33820-0E100iGSU5#201312-201611

main33820-0E110iASU50201312-201611

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0E020iASU50,GSU5#201312-201611

main33823-0E090iGSU5#201611

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-A0234iASU50,GSU5#201312-201611

35978INDICATOR, SHIFT POSITION

main35978-0E010iASU50,GSU55..RUS201312-201611

main35978-0E020iGSU5#..ARL201312-201611

9008011620

main90080-11620

90119A0165

main90119-A0165

90178A0093

main90178-A0093

9046804193

main90468-04193

13 parts on this diagram · 5 diagrams in section
