ALTERNATOR

0001 112V 150A 0002 112V 150A 0003 112V 150A 0004 112V 180A

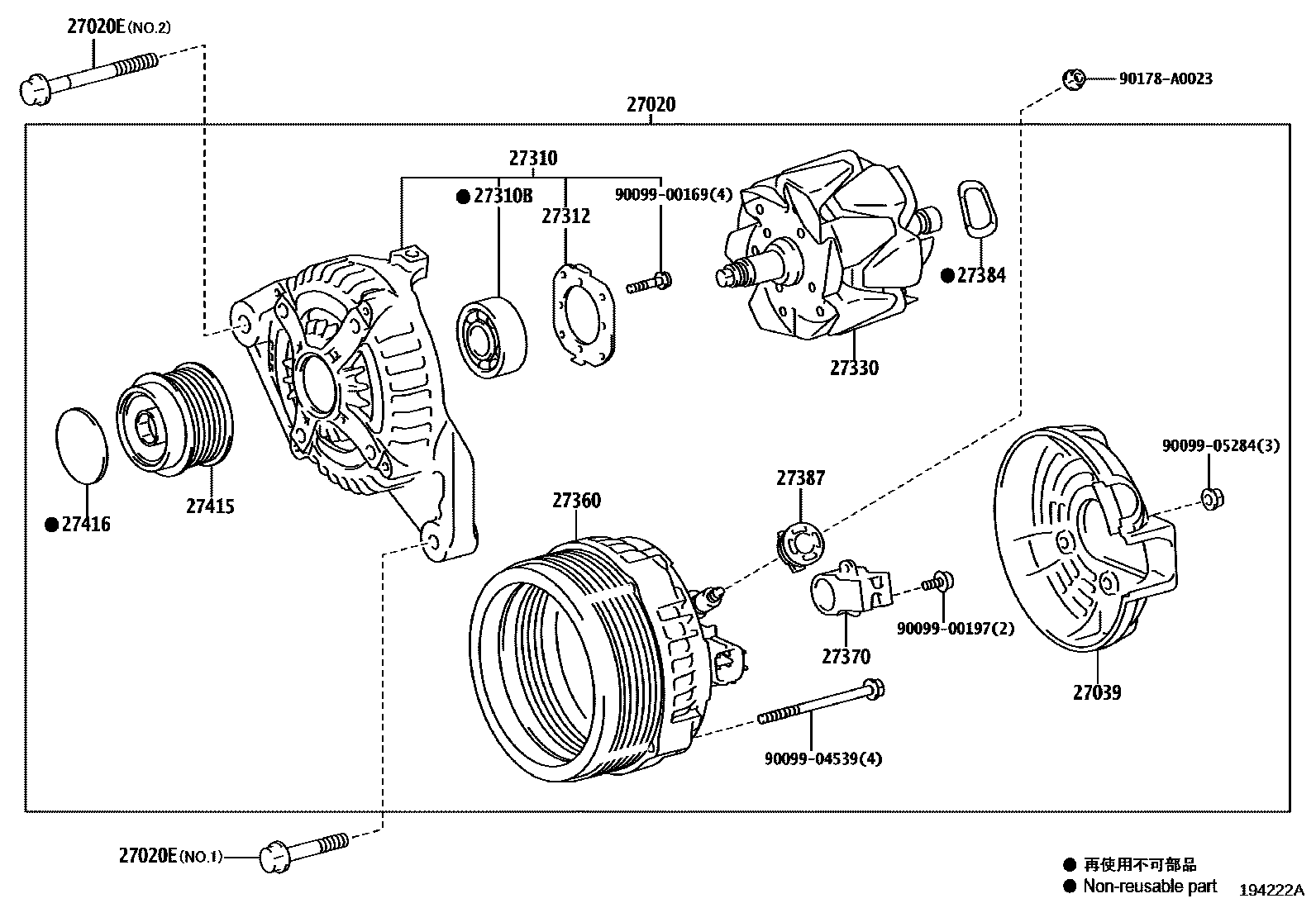

27020ALTERNATOR ASSY

main27060-0P241i2GRFE..GSU5#201312-201611

12V 150A

main27060-0P420i2GRFKS..GSU5#201611

12V 180A

sub27060-31410

main27060-0V080i1ARFE..ASU50201312-201611

12V 150A

sub27060-36061

27020EBOLT(FOR ALTERNATOR)

main90105-A0107i1ARFE,2GRFE..ASU50,GSU5#201312-201611

NO.1

main90105-A0107i2GRFKS..GSU5#201611

main90105-A0129i2GRFE..GSU5#201312-201611

NO.2

main90105-A0230i1ARFE..ASU50201312-201611

NO.2

main90105-A0230i1ARFE..ASU50201611

27039COVER, ALTERNATOR REAR END

main27039-0P470i2GRFKS..GSU5#201611

main27039-0T040i1ARFE..ASU50201312-201611

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P140i2GRFE..GSU5#201312-201611

main27310-0P470i2GRFKS..GSU5#201611

main27310-0V010i1ARFE..ASU50201312-201611

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main90099-10241i2GRFKS..GSU5#201611

27312PLATE, RETAINER

main27312-42010i2GRFKS..GSU5#201611

main27312-72100i1ARFE,2GRFE..ASU50,GSU5#201312-201611

27330ROTOR ASSY, ALTERNATOR

main27330-0A110i1ARFE..ASU50201312-201611

main27330-0P470i2GRFKS..GSU5#201611

27360COIL ASSY, ALTERNATOR

main27360-0P240i2GRFE..GSU5#201312-201611

sub27360-31370

main27360-0P470i2GRFKS..GSU5#201611

main27360-0V030i1ARFE..ASU50201312-201611

sub27360-36091

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0P020i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main27370-0V160i2GRFKS..GSU5#201611

27384WASHER

main27384-0A020i1ARFE..ASU50201312-201611

main27384-38130i2GRFKS..GSU5#201611

27387INSULATOR, TERMINAL

main27387-0V060i1ARFE,2GRFE..ASU50,GSU5#201312-201611

main27387-38130i2GRFKS..GSU5#201611

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P030i2GRFKS..GSU5#201611

main27415-0W021i1ARFE..ASU50201312-201611

main27415-0W131i2GRFE..GSU5#201312-201611

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1ARFE,2GRFE..ASU50,GSU5#201312-201611

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905284

main90099-05284

90178A0023

main90178-A0023

18 parts on this diagram · 4 diagrams in section
