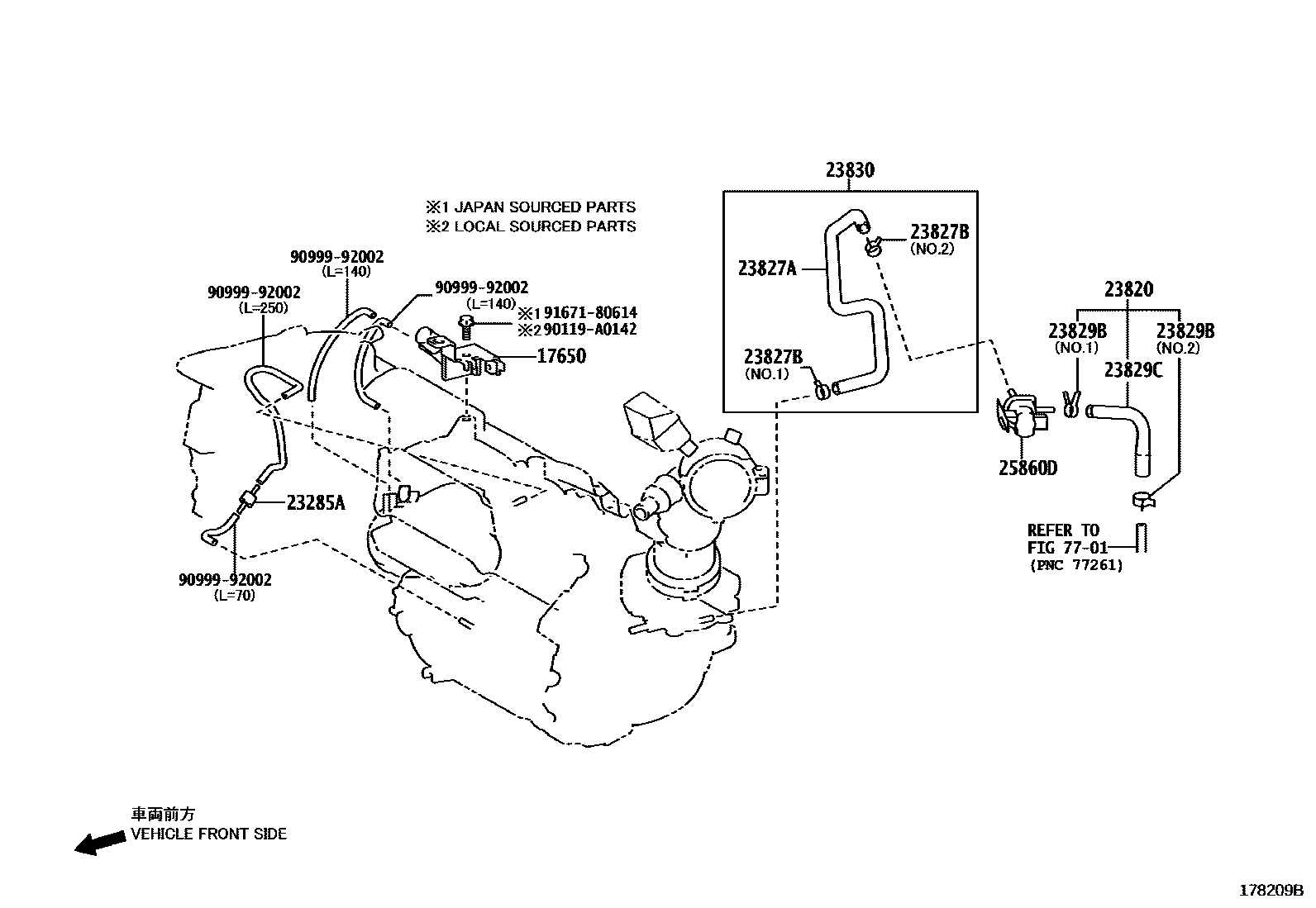

VACUUM PIPING
17650VALVE ASSY, VACUUM SWITCHING
*535
*524
23285AVALVE, CHECK, NO.1
23820HOSE ASSY, FUEL VAPOR FEED
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1
NO.1:REFER ILLUST.
NO.2
(L),NO.1
NO.2
NO.3
(J),NO.1
NO.1
23829CHOSE, FUEL VAPOR FEED, NO.2
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
NO.2
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
7701
90119A0142
main90119-A0142
9099992002
main90999-92002
9167180614
main91671-80614
14 parts on this diagram · 3 diagrams in section
