WATER PUMP

0001 1 0002 1 0003 1

1603

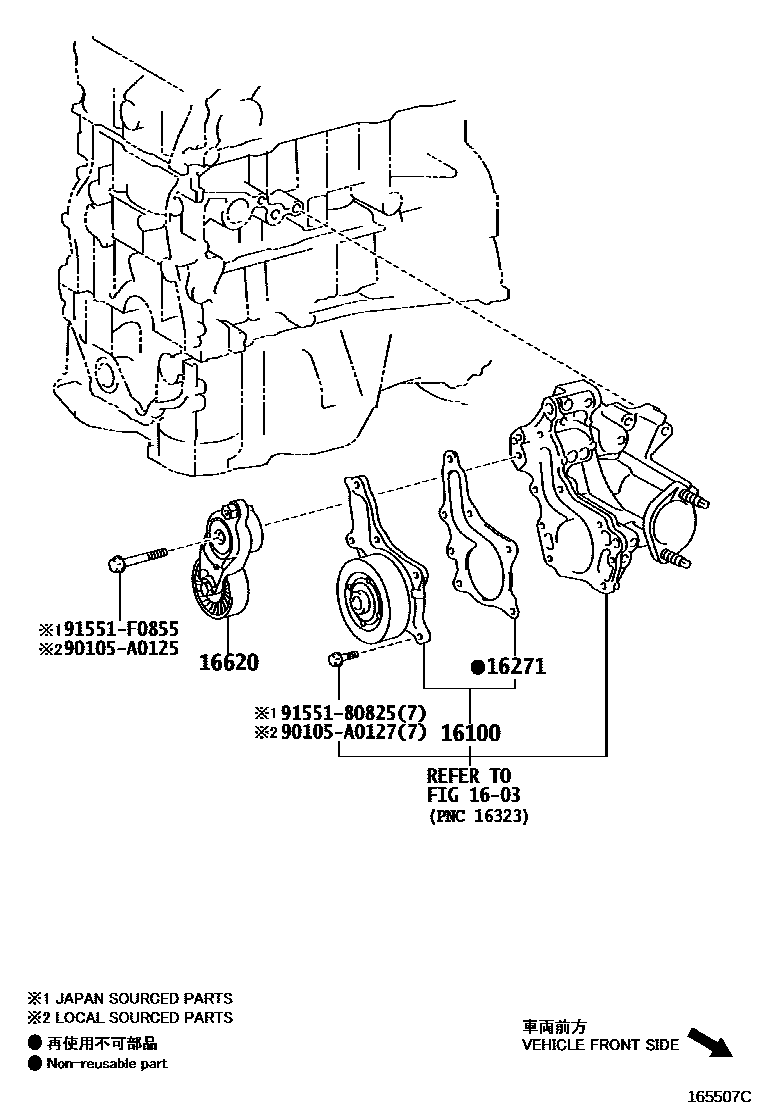

16100PUMP ASSY, ENGINE WATER

main16100-09441i2GRFE..GSU5#201312-201608

(L)

sub16100-09442

main16100-09442i2GRFE..GSU5#201608-201611

(L)

main16100-09515i1ARFE..ASU50201312-201611

main16100-09515i1ARFE..ASU50201611

*535

main16100-09690i2GRFKS..GSU5#201611

main16100-39456i2GRFE..GSU5#201312-201611

(J)

main16100-39515i1ARFE..ASU50201810

*524

sub16100-39516

16271GASKET, WATER PUMP

main16271-0P010i2GRFE..GSU5#201312-201611

(L)

main16271-0P030i2GRFKS..GSU5#201611

main16271-31030i2GRFE..GSU5#201312-201611

(J)

main16271-36010i1ARFE..ASU50201810

*524

main16271-36010i1ARFE..ASU50201312-201611

main16271-36010i1ARFE..ASU50201611

*535

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P010i2GRFKS..GSU5#201611-201706

main16620-0P030i2GRFKS..GSU5#201707

main16620-0V021i1ARFE..ASU50201312-201405

(L)

sub16620-0V022

main16620-0V022i1ARFE..ASU50201611

(L),*535

main16620-0V022i1ARFE..ASU50201405-201611

(L)

main16620-31040i2GRFE..GSU5#201312-201611

main16620-36010i1ARFE..ASU50201312-201402

(J)

sub16620-36011

main16620-36011i1ARFE..ASU50201402-201509

(J)

sub16620-36012

main16620-36012i1ARFE..ASU50201510-201611

(J)

sub16620-36013

main16620-36012i1ARFE..ASU50201611-201712

(J),*535

sub16620-36013

main16620-36013i1ARFE..ASU50201801

(J),*535

main16620-36013i1ARFE..ASU50201811

*524

90105A0125

main90105-A0125

90105A0127

main90105-A0127

9155180825

main91551-80825

91551F0855

main91551-F0855

8 parts on this diagram · 3 diagrams in section
