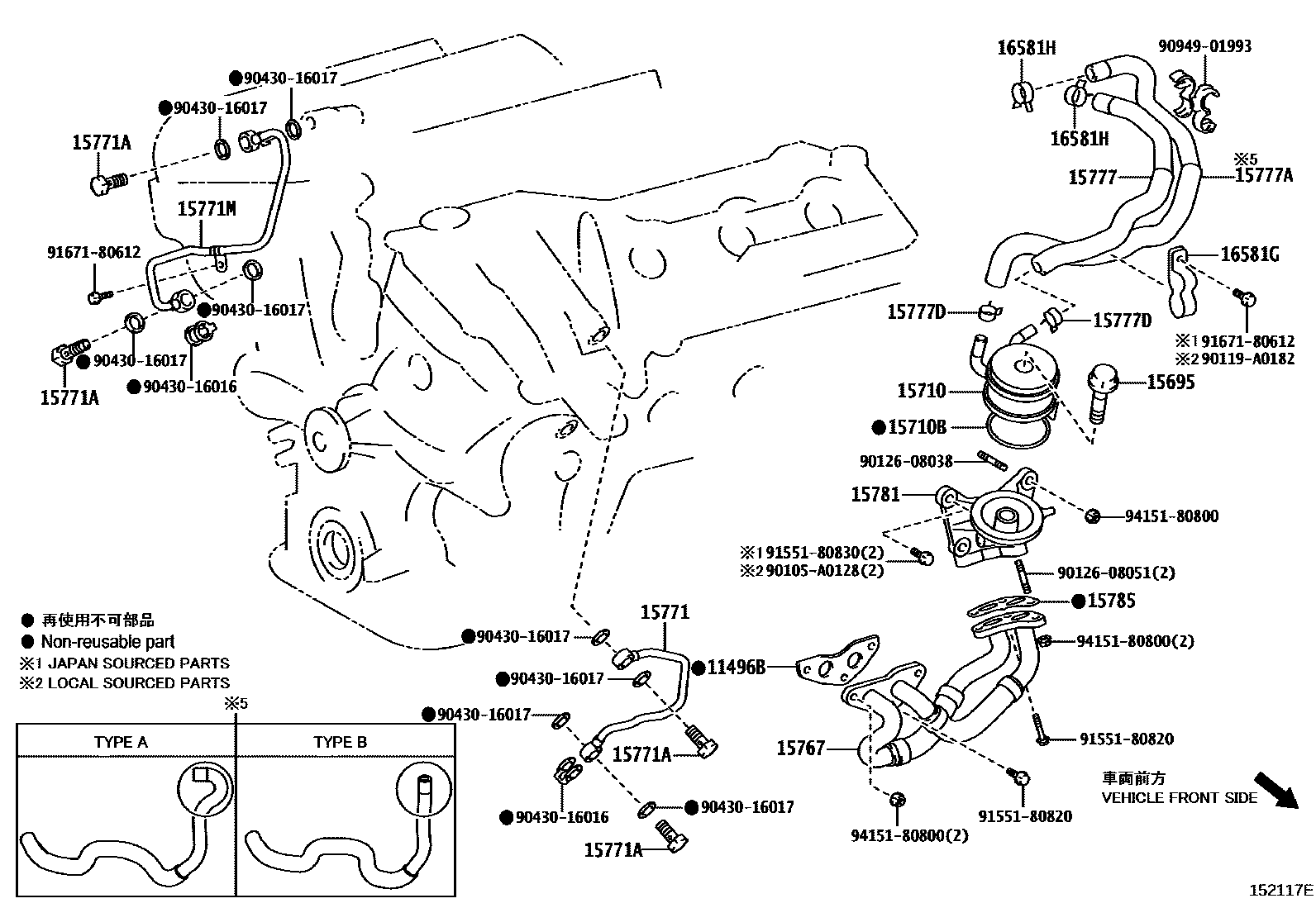

ENGINE OIL COOLER

0001 1 0002 1

11496BGASKET, OIL HOLE COVER

main11496-0P010i2GRFKS..GSU5#201611

main11496-31010i2GRFE..GSU5#201312-201611

15695BOLT, OIL COOLER UNION

main15695-31010i2GRFE..GSU5#201312-201611

15710COOLER ASSY, OIL

main15710-0P010i2GRFKS..GSU5#201611

main15710-31021i2GRFE..GSU5#201312-201611

15710BRING, O(FOR OIL COOLER)

main15785-31050i2GRFKS..GSU5#201806

main90301-67004i2GRFE..GSU5#201312-201611

main96723-35035i2GRFKS..GSU5#201611-201805

sub15785-31050

15767PIPE, OIL COOLER

main15767-0P010i2GRFKS..GSU5#201611-201912

sub15767-0P011

main15767-31020i2GRFE..GSU5#201312-201611

15771PIPE, OIL, NO.1

main15771-31010i2GRFE..GSU5#201312-201611

15771AUNION(FOR OIL PIPE)

main90401-16043i2GRFE..GSU5#201312-201611

15771MPIPE, OIL

main15772-31030i2GRFE..GSU5#201312-201611

15777HOSE, OIL COOLER

main16281-31030i2GRFE..GSU5#201312-201611

15777AHOSE, OIL COOLER

main16282-31020i2GRFE..GSU5#201312-201611

TYPE A:REFER ILLUST.,TYPE A:REFER ILLUST.

main16282-31050i2GRFE..GSU5#201312-201611

TYPE B:REFER ILLUST.,TYPE B:REFER ILLUST.

15777DCLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)

main96136-42101i2GRFE..GSU5#201312-201611

15781BRACKET, OIL COOLER, NO.1

main15781-0P010i2GRFKS..GSU5#201611

main15781-31010i2GRFE..GSU5#201312-201611

15785GASKET, OIL COOLER

main15785-0P010i2GRFKS..GSU5#201611

main15785-31010i2GRFE..GSU5#201312-201611

16581GCLAMP, HOSE(FOR OIL COOLER HOSE)

main16581-31020i2GRFE..GSU5#201312-201611

16581HCLIP, HOSE(FOR OIL COOLER HOSE)

main96136-42101i2GRFE..GSU5#201312-201611

90105A0128

main90105-A0128

90119A0182

main90119-A0182

9012608038

main90126-08038

9012608051

main90126-08051

9043016016

main90430-16016

9043016017

main90430-16017

9094901993

main90949-01993

9155180820

main91551-80820

9155180830

main91551-80830

9167180612

main91671-80612

9415180800

main94151-80800

26 parts on this diagram · 2 diagrams in section
