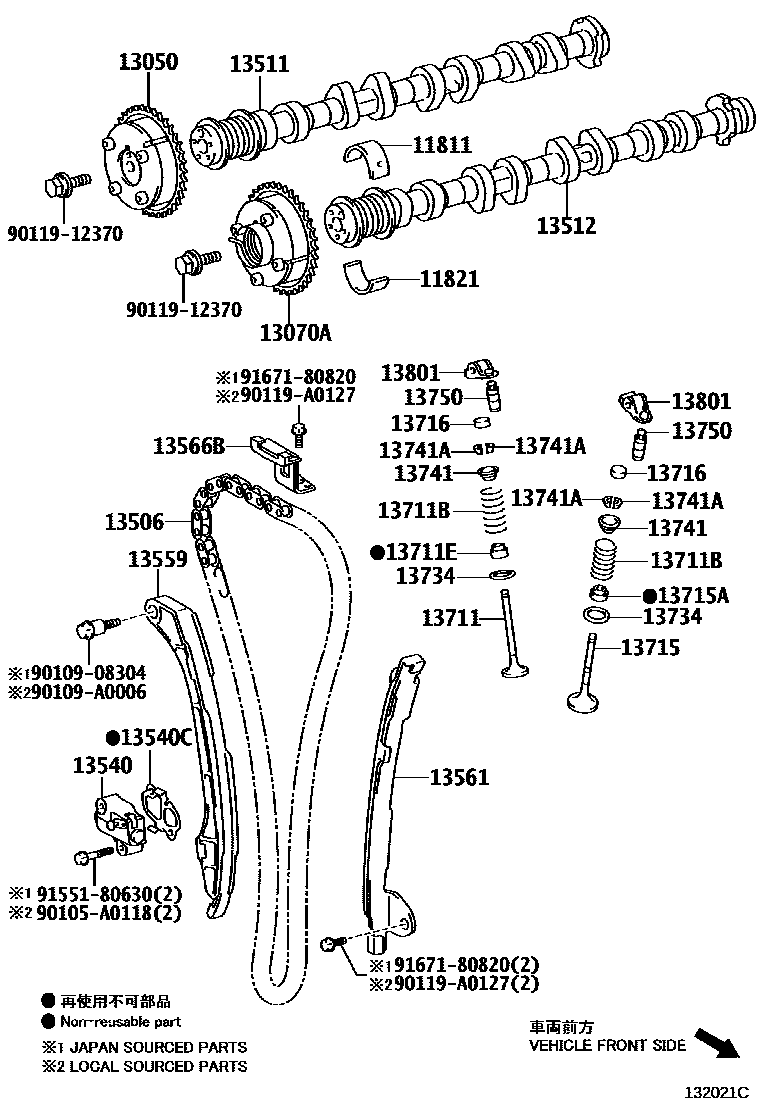

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
(L)
(L),*535
(J)
(J),*535
*524
11821BEARING, CAMSHAFT, NO.2
(L)
(L),*535
(J),*535
*524
(J)
13050GEAR ASSY, CAMSHAFT TIMING
*535
(J)
*524
13070GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH
(J)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*535
*524
13506CHAIN SUB-ASSY
(L)
*535
(J)
*524
13540CGASKET(FOR CHAIN TENSIONER)
*535
*524
13559SLIPPER, CHAIN TENSIONER
(L)
*535
(J)
*524
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
*535
(J)
*524
13566BGUIDE, TIMING CHAIN
*535
*524
13711VALVE, INTAKE
(L)
(J)
(J),*535
*524
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(J),PNC 13801=TYPE B
(J)
(J),*535
*524
(J),PNC 13801=TYPE A
*371,(J)
(J)
(L),PNC 13801=TYPE A
*371,(L)
(L)
(L),*535
(L),PNC 13801=TYPE B
(L)
13711ESEAL, INTAKE VALVE STEM OIL
*535
(L)
*524
(J)
13715VALVE, EXHAUST
(L)
(L),*535
(L)
(J)
(J)
(J),*535
*524
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
*535
(J)
*524
13716CAP, VALVE STEM
(L)
*524
(J)
*535
13734SEAT, VALVE SPRING
*535
(L)
(J)
*524
13741RETAINER, VALVE SPRING
(L),PNC 13801=TYPE A
(L)
(L),PNC 13801=TYPE B
(L)
(L),*535
(L)
(J),*535
(J)
(J)
*524
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
*524
(J),*535
(L),*535
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L),TYPE A:REF ILL.
*535
(L)
(L),TYPE B:REF ILL.
(J)
(J)
*524
90105A0118
main90105-A0118
9010908304
main90109-08304
90109A0006
main90109-A0006
9011912370
main90119-12370
90119A0127
main90119-A0127
9155180630
main91551-80630
9167180820
main91671-80820
31 parts on this diagram · 5 diagrams in section
