HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR 0006 1SENSOR

8401

8603

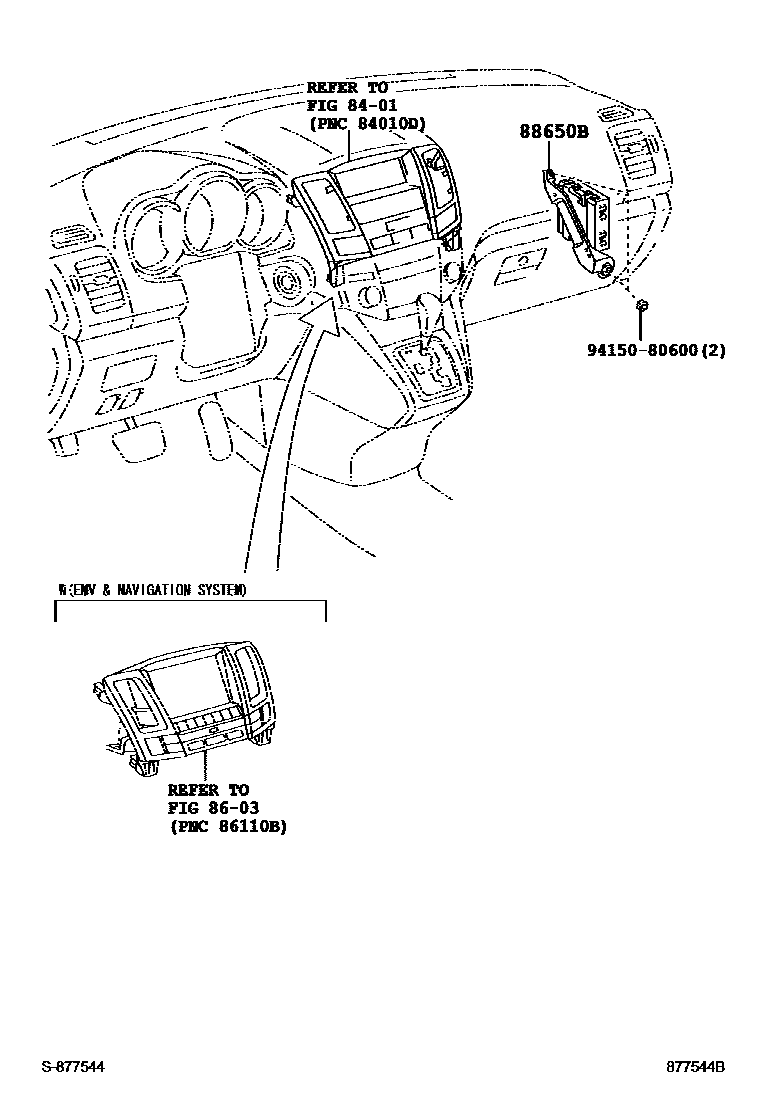

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-48140iMHU38..LHD200503-200608

sub88650-48440

main88650-48141iMHU38..LHD200608-200812

main88650-48150iMHU38..RHD200503-200608

sub88650-48450

main88650-48151iMHU38..RHD200608-200812

9415080600

main94150-80600

4 parts on this diagram · 6 diagrams in section
