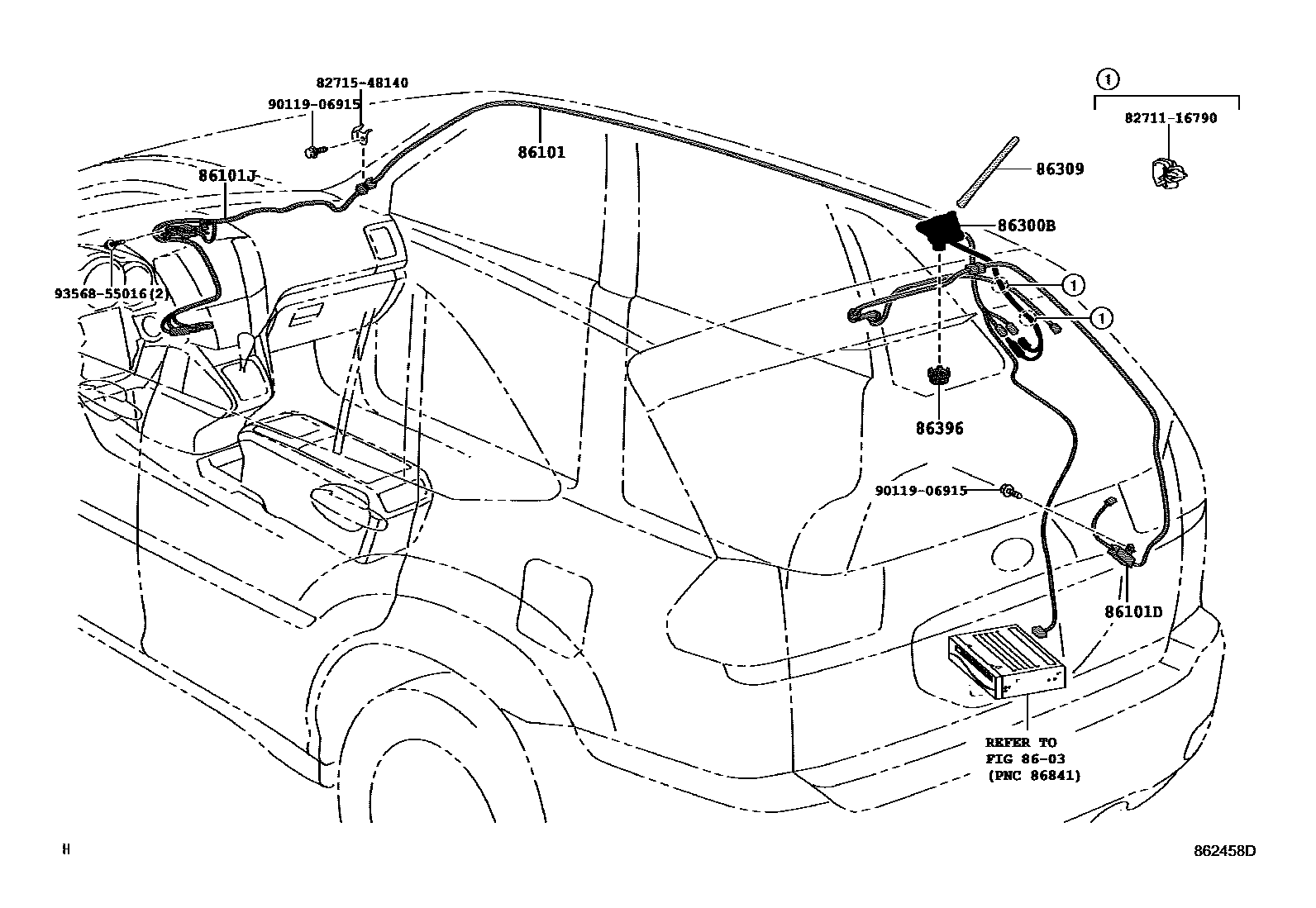

ANTENNA
8603
86101CORD SUB-ASSY, ANTENNA
EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)
SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
SUN ROOF & MOON ROOF-W(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86300BANTENNA ASSY, AMPLIFIER, NO.1
86309POLE SUB-ASSY, PILLAR ANTENNA
86396NUT, ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271548140BRACKET,WIRING HARNESS CLAMP
main82715-48140
9011906915
main90119-06915
9356855016
main93568-55016
11 parts on this diagram · 2 diagrams in section
