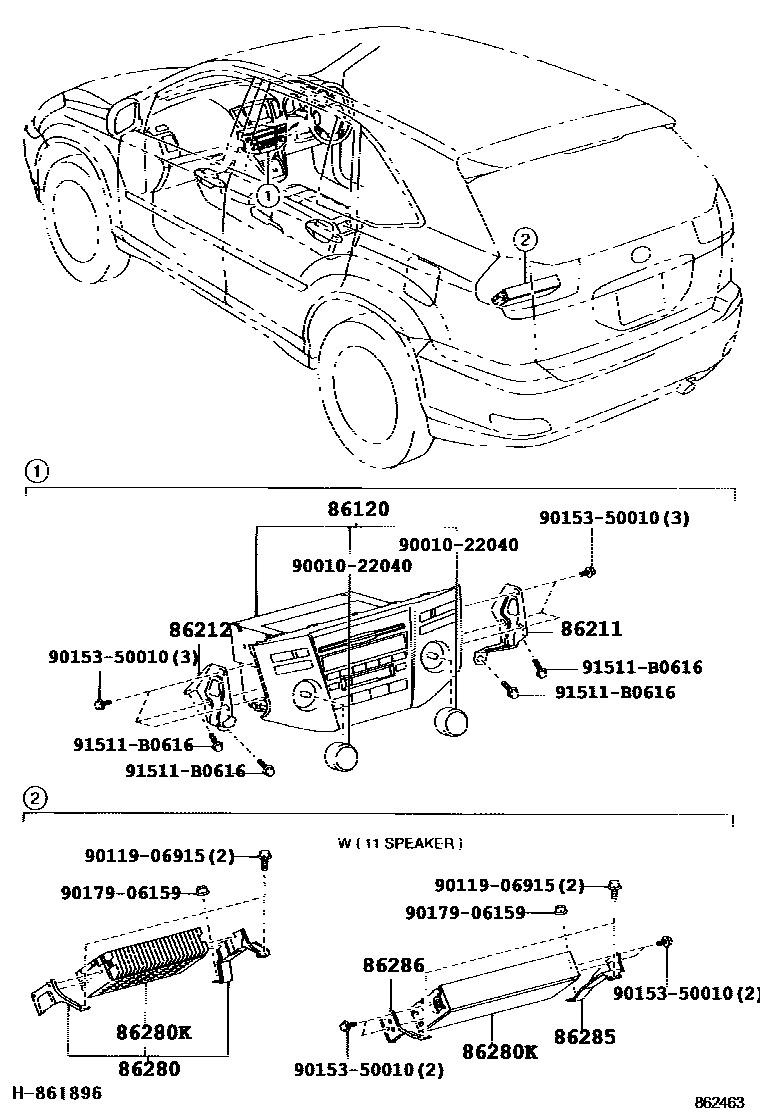

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PIONEER,ID=P3934,EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
PIONEER,ID=P3936,EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
PIONEER,ID=P3935,AUDIO-MARK LEVINSON 11SPEAKER RDS RHD&EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
PIONEER,ID=P3937,AUDIO-MARK LEVINSON 11SPEAKER RDS LHD&EMV & NAVIGATION SYSTEM-W(03EMV & 03NAVIGATION)
PIONEER,ID=P3938
PIONEER,ID=P3939
PIONEER,ID=P3940,AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
PIONEER,ID=P3941,AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
PIONEER,ID=P3805
PIONEER,ID=P3806,AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
PIONEER,ID=P3500,AUDIO-DVDCH/CST RDS ML11SP L&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P3804
PIONEER,ID=P3807,AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
PIONEER,ID=P3501,AUDIO-DVDCH/CST RDS ML11SP R&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P2811,SINGAPOLE SPEC&AUDIO-AMFM CDCH ML 11SP LHD
PIONEER,ID=P2811,THAILAND SPEC&AUDIO-AMFM CDCH ML 11SP LHD
PIONEER,ID=P2811,TAIWAN SPEC&AUDIO-AMFM CDCH ML 11SP LHD
PIONEER,ID=P2811,HONGKONG SPEC&AUDIO-AMFM CDCH ML 11SP LHD
PIONEER,ID=P2509,CHINA SPEC&AUDIO-DVDCH/CST ML 11SP LHD&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P2508,TAIWAN SPEC&AUDIO-DVDCH/CST ML 11SP LHD&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P2810,AUSTRALIA SPEC&AUDIO-AM/FM/CDCH 8SPEAKER RHD
PIONEER,ID=P2810,NEW ZEALAND SPEC&AUDIO-AM/FM/CDCH 8SPEAKER RHD
PIONEER,ID=P2813,AUSTRALIA SPEC&AUDIO-MARK LEVINSON 11SP RHD
PIONEER,ID=P2813,NEW ZEALAND SPEC&AUDIO-MARK LEVINSON 11SP RHD
PIONEER,ID=P2586,AUSTRALIA SPEC&AUDIO-DVDCH/CST ML 11SP RHD&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P2586,NEW ZEALAND SPEC&AUDIO-DVDCH/CST ML 11SP RHD&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P2820,CHINA SPEC&AUDIO-AMFM CDCH ML 11SP LHD
PIONEER,ID=P2526,MOSCOW SPEC&AUDIO-DVDCH/CST RDS ML11SP L&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
86280KAMPLIFIER ASSY, STEREO COMPONENT
AUDIO-DVDCH/CST ML 11SP LHD
AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-MARK LEVINSON 11SP RHD
AUDIO-DVDCH/CST RDS ML11SP R
AUDIO-DVDCH/CST ML 11SP RHD
AUDIO-AMFM CDCH ML 11SP LHD
AUDIO-DVDCH/CST RDS ML11SP L
SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
86285BRACKET, AMPLIFIER, NO.1
SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-MARK LEVINSON 11SP RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-DVDCH/CST RDS ML11SP R
AUDIO-DVDCH/CST ML 11SP RHD
AUDIO-AMFM CDCH ML 11SP LHD
AUDIO-DVDCH/CST ML 11SP LHD
AUDIO-DVDCH/CST RDS ML11SP L
86286BRACKET, AMPLIFIER, NO.2
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
SEAT COVER MATERIAL-LEATHER&AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS RHD
AUDIO-MARK LEVINSON 11SPEAKER RDS LHD
AUDIO-MARK LEVINSON 11SP RHD
AUDIO-DVDCH/CST RDS ML11SP R
AUDIO-DVDCH/CST ML 11SP RHD
AUDIO-AMFM CDCH ML 11SP LHD
AUDIO-DVDCH/CST ML 11SP LHD
AUDIO-DVDCH/CST RDS ML11SP L
9001022040
main90010-22040
9011906915
main90119-06915
9015350010
main90153-50010
9017906159
main90179-06159
91511B0616
main91511-B0616
12 parts on this diagram · 5 diagrams in section
