WINDSHIELD WIPER

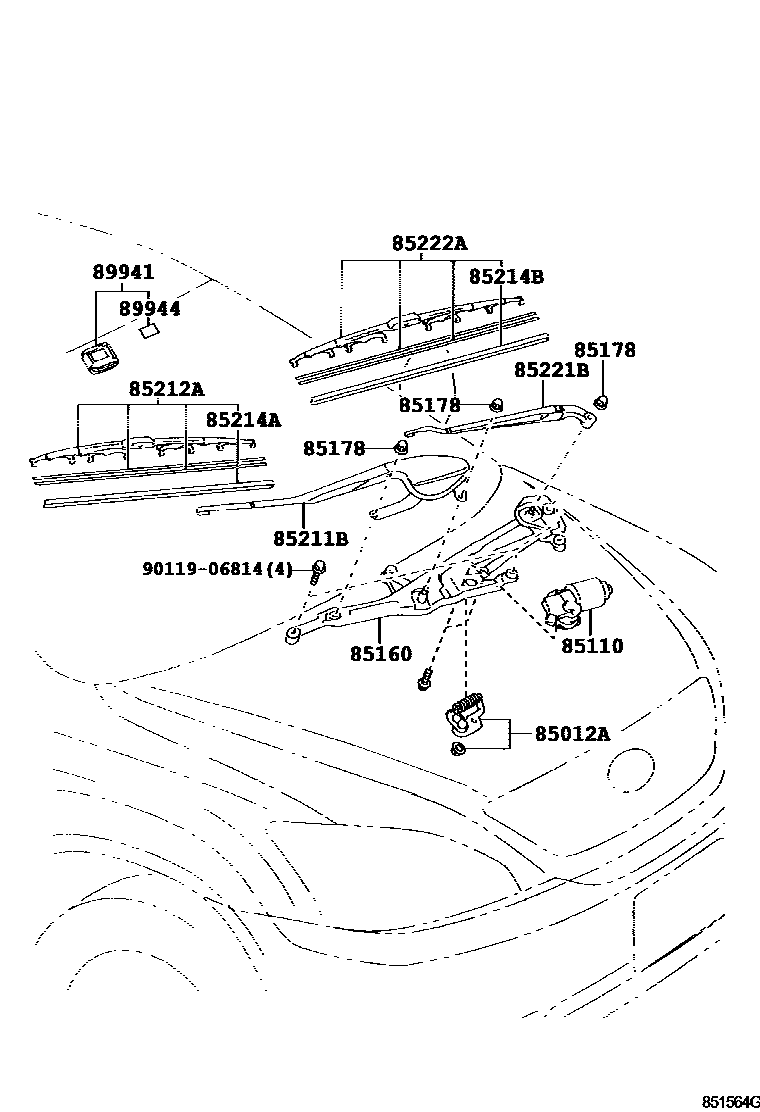

Parts diagram
85012ACRANK SUB-ASSY, FRONT WIPER
main85012-28010i200503-200812
main85012-58010i200503-200812
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-48100i200608-200812
NEW ZEALAND SPEC
main85110-48100i200608-200812
AUSTRALIA SPEC
main85110-48120i200503-200708
main85110-48130i200503-200708
sub85110-48160
main85110-48150i200708-200812
main85110-48160i200708-200812
85160LINK ASSY, WINDSHIELD WIPER
main85150-48090i200608-200812
NEW ZEALAND SPEC
main85150-48090i200608-200812
AUSTRALIA SPEC
main85150-48120i200503-200708
sub85150-48140
main85150-48130i200503-200708
sub85150-48150
main85150-48140i200708-200812
main85150-48150i200708-200812
85178NUT (FOR FRONT WIPER ARM SETTING)
main90176-10005i200503-200812
85211BARM, FRONT WIPER, RH
main85211-48070i200608-200812
NEW ZEALAND SPEC&LUXURY PACKAGE
main85211-48070i200608-200812
AUSTRALIA SPEC&LUXURY PACKAGE
main85211-48090i200503-200812
main85211-48100i200503-200812
85212ABLADE, FR WIPER, RH
main85212-48080i200608-200812
NEW ZEALAND SPEC&LUXURY PACKAGE
main85212-48080i200608-200812
AUSTRALIA SPEC&LUXURY PACKAGE
main85212-48100i200503-200812
main85212-48110i200503-200812
85214ARUBBER, WIPER, RH
main85214-44140i200503-200812
main85214-48010i200503-200812
85214BRUBBER, WIPER, LH
main85214-44140i200503-200812
main85214-48010i200503-200812
85221BARM, FRONT WIPER, LH
main85221-48070i200608-200812
NEW ZEALAND SPEC&LUXURY PACKAGE
main85221-48070i200608-200812
AUSTRALIA SPEC&LUXURY PACKAGE
main85221-48090i200503-200812
main85221-48100i200503-200812
85222ABLADE, FR WIPER, LH
main85222-48070i200608-200812
AUSTRALIA SPEC&LUXURY PACKAGE
main85222-48070i200608-200812
NEW ZEALAND SPEC&LUXURY PACKAGE
main85222-48090i200503-200812
main85222-48100i200503-200812
89941SENSOR, RAIN
main89941-48031i200608-200708
LUXURY PACKAGE
main89941-48031i200608-200708
LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48031i200608-200708
W(WINDSHIELD WIPER DEICER)
main89941-48033i200708-200811
LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48033i200708-200811
W(WINDSHIELD WIPER DEICER)
main89941-48033i200708-200811
LUXURY PACKAGE
main89941-48040i200503-200608
LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
sub89941-48031
main89941-48040i200503-200608
LUXURY PACKAGE
sub89941-48031
main89941-48040i200503-200608
W(WINDSHIELD WIPER DEICER)
sub89941-48031
main89941-48060i200810-200812
THAILAND SPEC&LUXURY PACKAGE
main89941-48060i200810-200812
THAILAND SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48060i200810-200812
CHINA SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48060i200810-200812
HONGKONG SPEC&LUXURY PACKAGE
main89941-48060i200810-200812
HONGKONG SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48060i200810-200812
SINGAPOLE SPEC&LUXURY PACKAGE
main89941-48060i200810-200812
SINGAPOLE SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48060i200810-200812
TAIWAN SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48060i200811-200812
LUXURY PACKAGE
main89941-48060i200811-200812
W(WINDSHIELD WIPER DEICER)
main89941-48060i200811-200812
LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89941-48060i200809-200812
CHINA SPEC&LUXURY PACKAGE
main89941-48060i200809-200812
AUSTRALIA SPEC&LUXURY PACKAGE
main89941-48060i200809-200812
NEW ZEALAND SPEC&LUXURY PACKAGE
main89941-48060i200809-200812
TAIWAN SPEC&LUXURY PACKAGE
89944TAPE, RAIN SENSOR
main89944-50011i200810-200812
THAILAND SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89944-50011i200503-200812
LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89944-50011i200810-200812
CHINA SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89944-50011i200810-200812
HONGKONG SPEC&LUXURY PACKAGE
main89944-50011i200810-200812
HONGKONG SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89944-50011i200810-200812
SINGAPOLE SPEC&LUXURY PACKAGE
main89944-50011i200810-200812
SINGAPOLE SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89944-50011i200810-200812
TAIWAN SPEC&LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)
main89944-50011i200810-200812
THAILAND SPEC&LUXURY PACKAGE
main89944-50011i200503-200812
LUXURY PACKAGE
main89944-50011i200503-200812
W(WINDSHIELD WIPER DEICER)
main89944-50011i200809-200812
CHINA SPEC&LUXURY PACKAGE
main89944-50011i200809-200812
AUSTRALIA SPEC&LUXURY PACKAGE
main89944-50011i200809-200812
NEW ZEALAND SPEC&LUXURY PACKAGE
main89944-50011i200809-200812
TAIWAN SPEC&LUXURY PACKAGE
9011906814
main90119-06814

13 parts on this diagram · 2 diagrams in section
