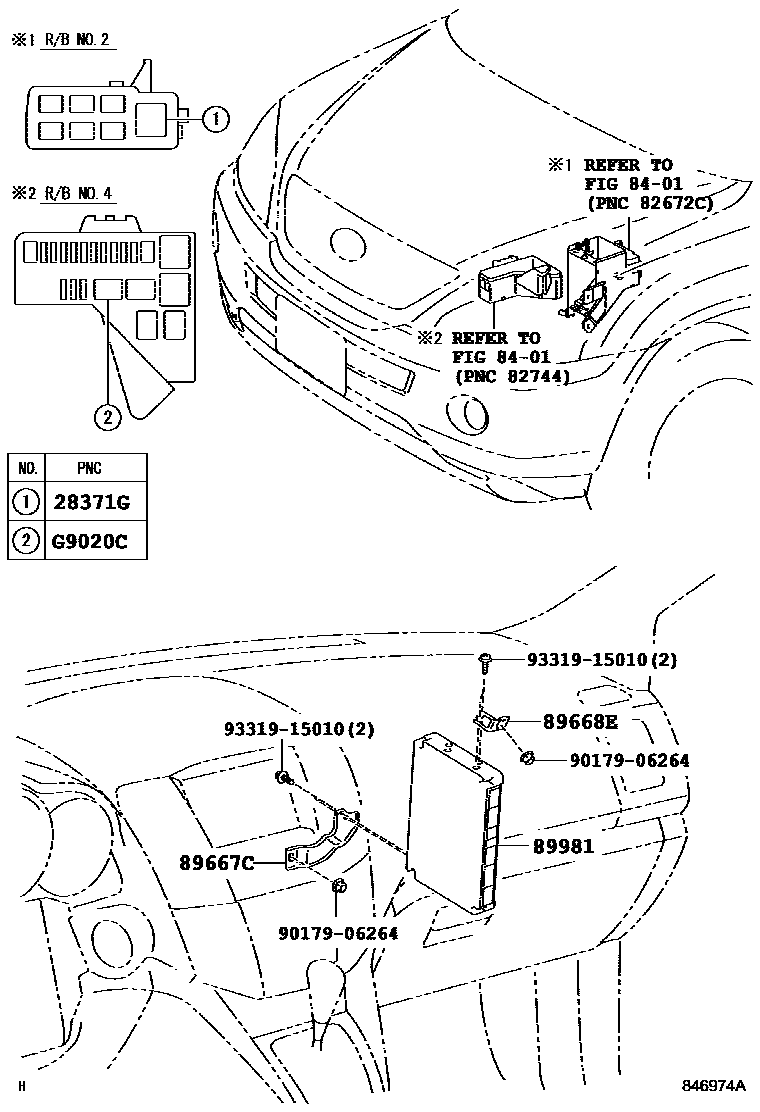

HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-02025i3MZFE..MHU38200503-200812

8401

89667CBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48050iMHU38..RHD200503-200812

main89667-48060iMHU38..LHD200503-200812

89668EBRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48050iMHU38..RHD200503-200812

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-48060iMHU38200503-200608

EXHAUST EMISSION CONTROL-STEP4 WITHOUT(OBD)

main89981-48220iMHU38200608-200708

EXHAUST EMISSION CONTROL-STEP4 WITHOUT(OBD)

main89981-48500iMHU38200708-200812

EXHAUST EMISSION CONTROL-STEP4 WITHOUT(OBD)

main89981-48240iMHU38..LHD200608-200708

THAILAND SPEC

main89981-48250iMHU38..LHD200608-200708

CHINA SPEC

main89981-48330iMHU38..LHD200608-200708

EXHAUST EMISSION CONTROL-STEP4 WITHOUT(OBD)

main89981-48520iMHU38..LHD200708-200812

THAILAND SPEC

main89981-48530iMHU38..LHD200708-200812

CHINA SPEC

G9020CRELAY, OIL PUMP

main90987-02027iMHU38200503-200812

9017906264

main90179-06264

9331915010

main93319-15010

8 parts on this diagram · 1 diagram in section
