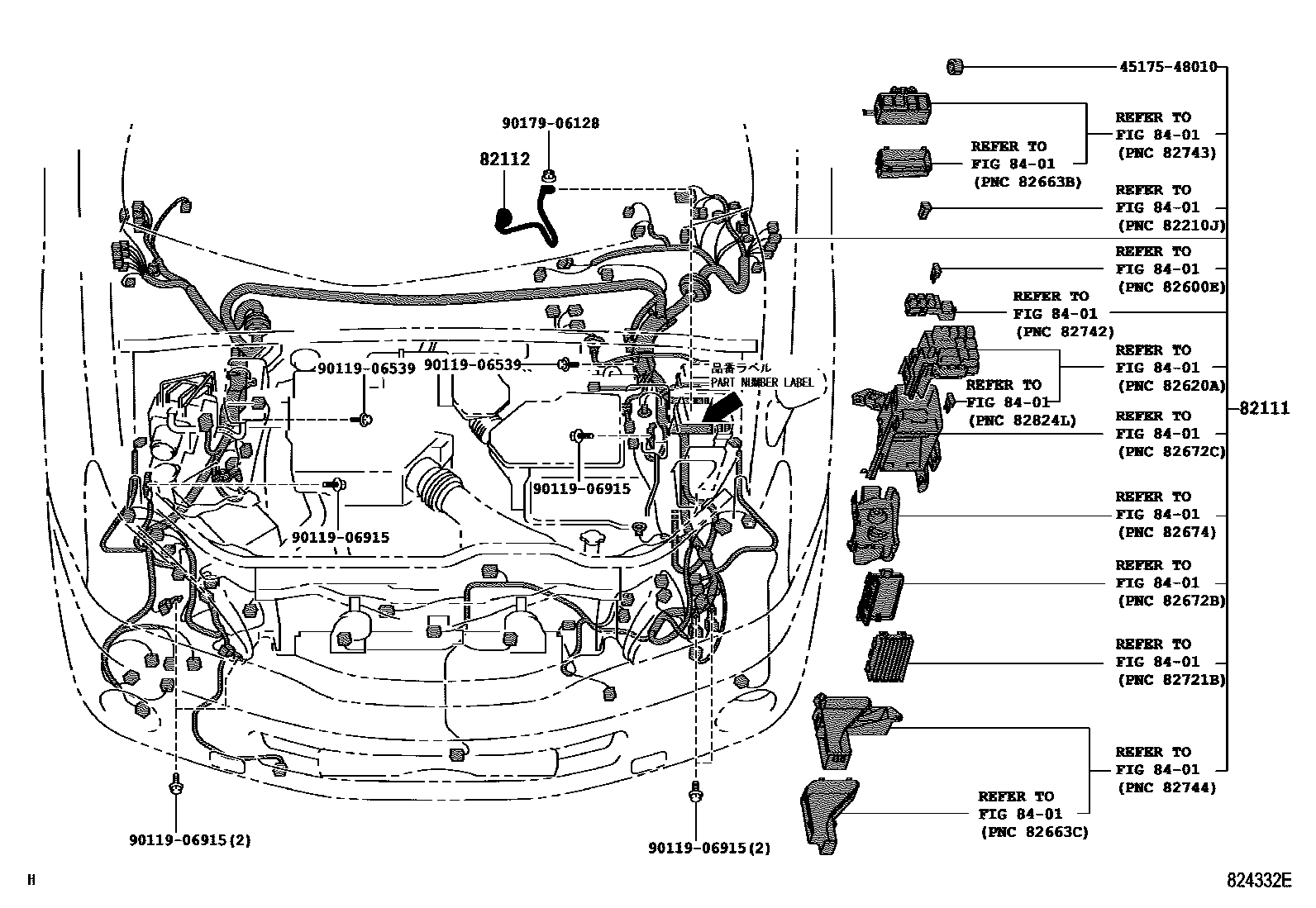

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-48D70i200503-200608

main82111-48D71i200608-200812

main82111-48D80i200503-200608

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main82111-48D81i200708-200812

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main82111-48D81i200608-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main82111-48D90i200503-200608

main82111-48D91i200608-200812

main82111-48E00i200503-200608

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main82111-48E01i200608-200708

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

main82111-48E01i200708-200812

LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), BLUE EXTENSION

main82111-48K80i200608-200708

NEW ZEALAND SPEC&LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS),GREEN EXTENSION

main82111-48K80i200608-200708

AUSTRALIA SPEC&LUXURY PACKAGE&CRUISE CONTROL-WITH&HEADLAMP-DISCHARGE & W(*AFLS), GREEN EXTENSION

82112WIRE, ENGINE ROOM, NO.2

main82112-48010i200503-200812

8401

4517548010RING, CONTACT, NO.2

9011906539

9011906915

9017906128

7 parts on this diagram · 16 diagrams in section
