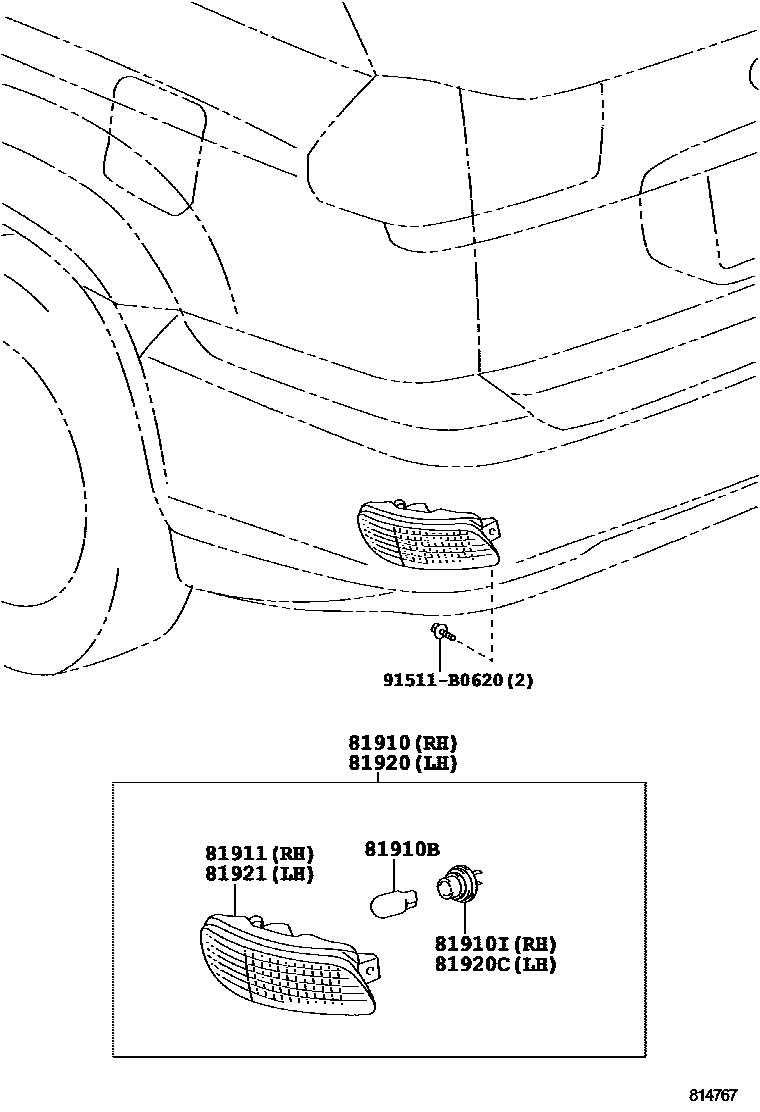

REFLEX REFLECTOR

81910REFLECTOR ASSY, REFLEX, RH

main81910-48030iMHU38200503-200610

sub81910-48031

main81910-48031iMHU38200611-200812

81910BBULB, REFLEX REFLECTOR

main90981-13043iMHU38200503-200812

12V 21W

81910ISOCKET PLUG, REFLEX REFLECTOR,RH

main90075-99080iMHU38200503-200812

81911LENS, REFLEX REFLECTOR, REAR RH

main81911-48030iMHU38200503-200610

sub81911-48031

main81911-48031iMHU38200611-200812

81920REFLECTOR ASSY, REFLEX, LH

main81920-48030iMHU38200503-200610

sub81920-48031

main81920-48031iMHU38200611-200812

81920CSOCKET PLUG, REFLEX REFLECTOR LH

main90075-99080iMHU38200503-200812

81921LENS, REFLEX REFLECTOR, REAR LH

main81921-48030iMHU38200503-200610

sub81921-48031

main81921-48031iMHU38200611-200812

91511B0620

main91511-B0620

8 parts on this diagram · 1 diagram in section
