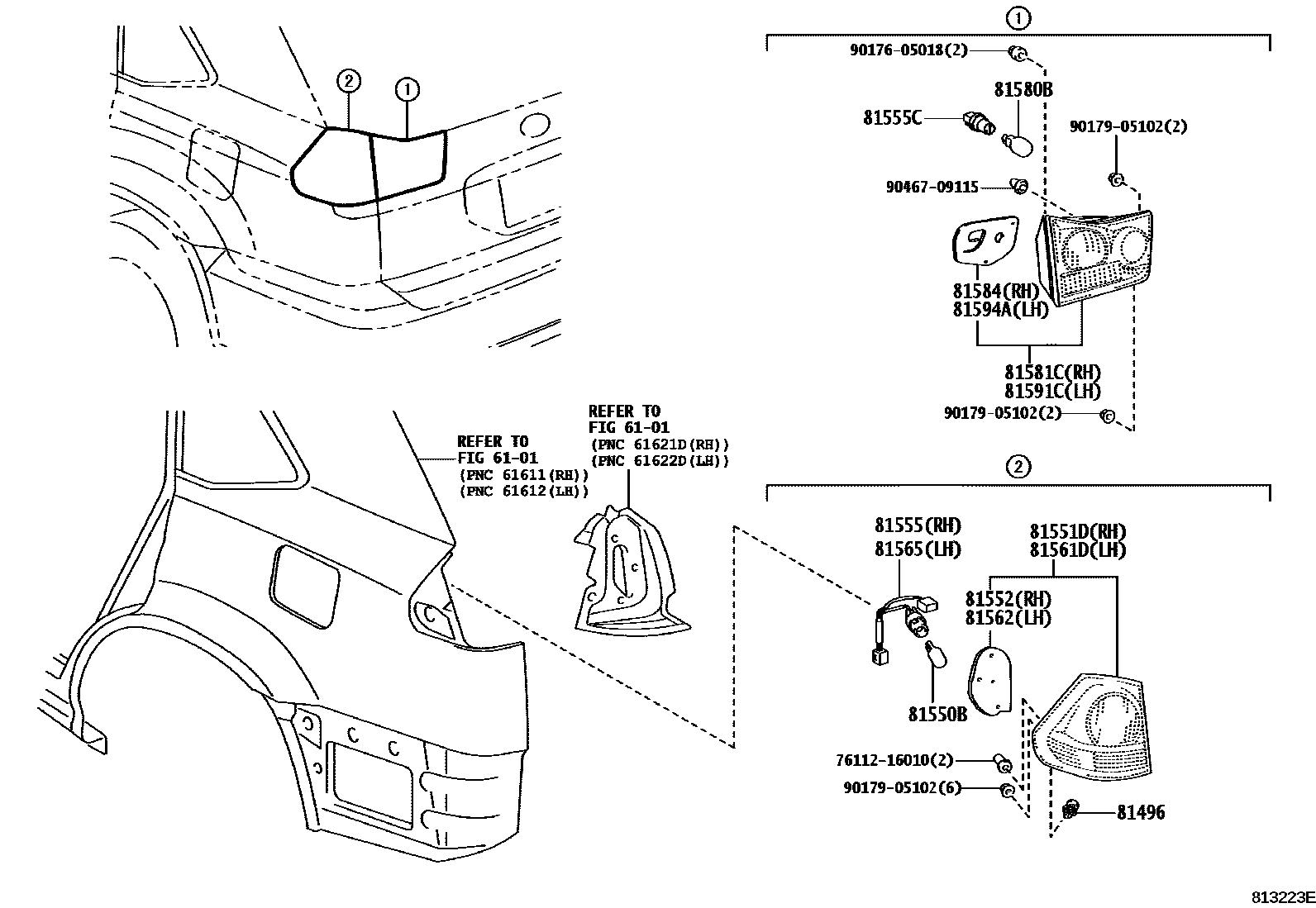

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iMHU38¥100200503-200812

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15011iMHU38¥300200503-200812

12V 21W,AMBER

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48140iMHU38¥36,600200503-200610

sub81551-48141¥36,600

main81551-48141iMHU38¥36,600200611-200708

main81551-48210iMHU38200708-200812

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-48141iMHU38¥1,010200503-200812

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-48140iMHU38¥2,030200503-200812

81555CSOCKET PLUG, NO.2

main90075-60063iMHU38¥980200503-200812

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48140iMHU38¥36,600200503-200610

sub81561-48141¥36,600

main81561-48141iMHU38¥36,600200611-200708

main81561-48210iMHU38200708-200812

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-48141iMHU38¥1,010200503-200812

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-48140iMHU38¥2,030200503-200812

81580BBULB (FOR REAR LAMP)

main90981-11059iMHU38¥200200503-200812

12V 16W

81581CLENS AND BODY, REAR LAMP, RH

main81581-48060iMHU38¥29,700200503-200610

sub81581-48061¥29,600

main81581-48061iMHU38¥29,600200611-200708

main81581-48090iMHU38200708-200812

81584PACKING, REAR LAMP RH

main81584-48051iMHU38¥1,240200503-200812

81591CLENS, REAR LAMP, LH

main81591-48060iMHU38¥29,700200503-200610

sub81591-48061¥29,600

main81591-48061iMHU38¥29,600200611-200708

main81591-48090iMHU38200708-200812

81594AGASKET, REAR LAMP LH

main81594-48051iMHU38¥1,240200503-200812

7611216010

main76112-16010¥60

9017605018

main90176-05018¥70

9017905102

main90179-05102¥90

9046709115

main90467-09115¥160

19 parts on this diagram · 1 diagram in section
