FUEL TANK & TUBE

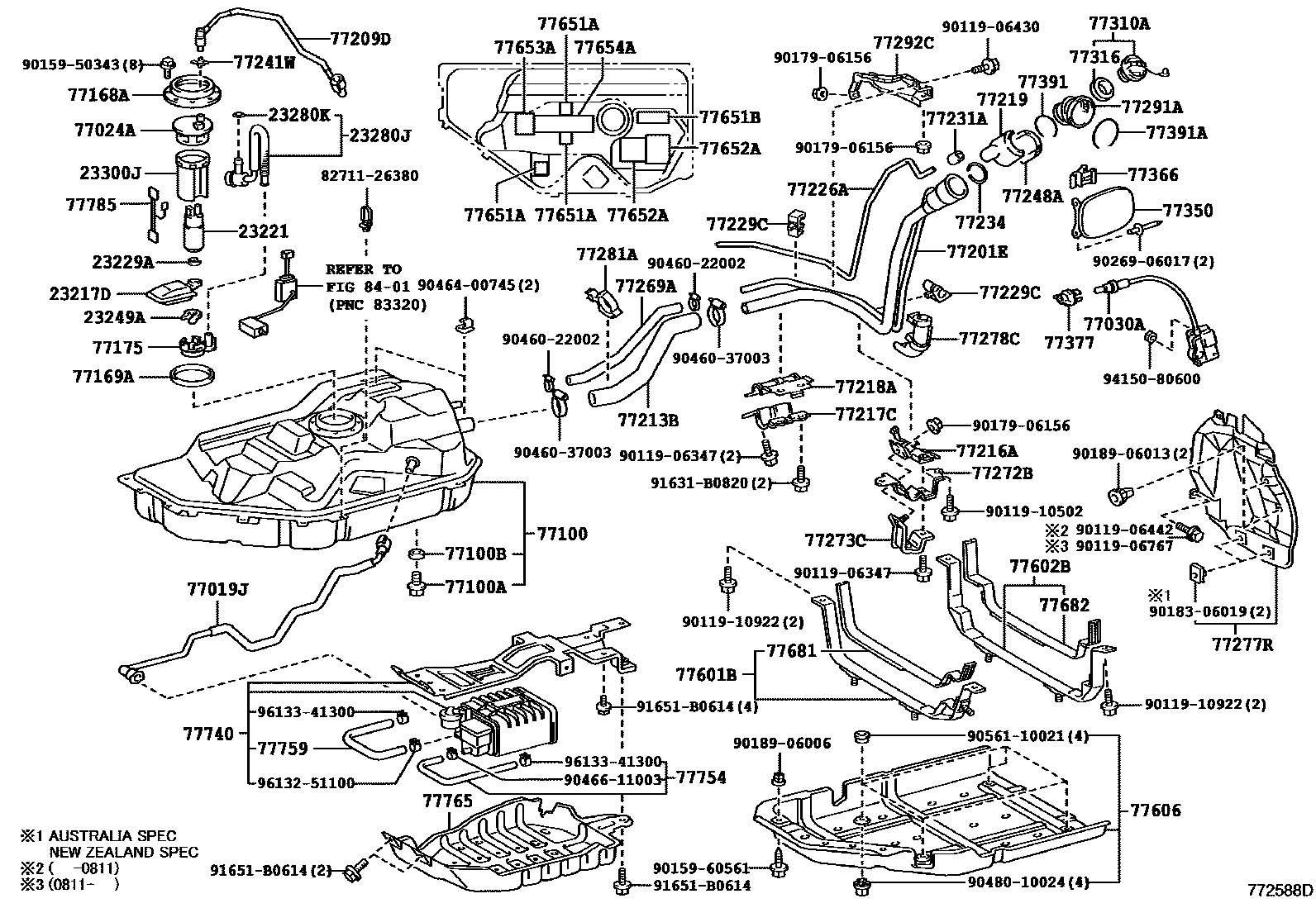

0001 1FUEL TANK 0002 1FUEL TUBE

23217DFILTER, FUEL PUMP

main23217-20060i3MZFE..MHU38¥1,120200503-200812

23221PUMP, FUEL

main23221-20030i3MZFE..MHU38¥40,900200503-200812

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i3MZFE..MHU38¥70200503-200812

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-46180i3MZFE..MHU38¥940200503-200812

23280JREGULATOR ASSY, FUEL PRESSURE

main23020-20010i3MZFE..MHU38¥7,600200503-200812

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i3MZFE..MHU38200503-200812

23300JFILTER ASSY, FUEL

main23300-21010i3MZFE..MHU38¥4,780200503-200812

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-48020iMHU38¥3,420200503-200812

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-48030iMHU38¥3,010200503-200812

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-48020iMHU38¥9,400200503-200812

77100TANK ASSY, FUEL

main77001-48120iMHU38¥50,400200503-200703

sub77001-48121¥50,300

main77001-48121iMHU38¥50,300200704-200812

77100APLUG(FOR FUEL TANK)

main90105-12018iMHU38¥380200503-200812

77100BGASKET(FOR FUEL TANK)

main90430-12245iMHU38¥160200503-200812

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52010iMHU38¥950200503-200812

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iMHU38¥440200503

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30050iMHU38¥1,170200503

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-48160iMHU38¥11,400200503-200812

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-48040iMHU38¥2,760200503-200812

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48080iMHU38¥3,490200503-200812

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48030iMHU38¥1,130200503-200812

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48050iMHU38¥1,480200503-200812

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48070iMHU38..LHD¥1,390200503-200812

main77218-48080iMHU38..RHD¥1,480200503-200812

77219COVER, FUEL TANK FILLER PIPE

main77219-48020iMHU38¥740200503-200812

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-48040iMHU38¥2,290200503-200812

77229CCLAMP, BREATHER TUBE

main77229-48050iMHU38¥300200503-200812

77231ACONNECTOR, FUEL TANK BREATHER TUBE

main77232-48010iMHU38¥380200503-200812

77234SEAL, FUEL TUBE CONNECTOR

main77234-48010iMHU38¥170200503-200812

77241WCLIP, TUBE JOINT

main77241-33011iMHU38¥80200503-200812

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-48010iMHU38¥610200503-200812

77269AHOSE, FUEL TANK BREATHER

main77269-48020iMHU38¥2,690200503-200812

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-48020iMHU38¥2,290200503-200812

77273CSUPPORT, BREATHER TUBE, NO.2

main77273-48020iMHU38¥3,180200503-200812

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-48040iMHU38¥2,690200503-200812

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-48010iMHU38¥900200503-200812

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48050iMHU38¥360200503-200812

77281ACLAMP, FUEL FILLER PIPE

main77281-48060iMHU38¥680200503-200812

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-48020iMHU38¥2,440200503-200812

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-48010iMHU38..LHD¥4,930200503-200812

main77292-48030iMHU38..RHD¥5,900200503-200812

77310ACAP ASSY, FUEL TANK

main77300-28010iMHU38¥1,740200503-200608

main77300-52030iMHU38¥1,560200608-200812

77316GASKET, FUEL TANK CAP

main77316-16010iMHU38¥660200503-200608

main77316-52040iMHU38¥230200608-200812

77350LID ASSY, FUEL FILLER OPENING

main77350-48040iMHU38¥4,040200503-200510

sub77350-48041¥3,570

main77350-48041iMHU38¥3,570200511-200812

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-21010iMHU38¥520200709-200812

main77360-35010iMHU38¥360200503-200708

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iMHU38¥300200503-200812

77391RING, FUEL INLET BOX

main77391-12020iMHU38¥180200503-200812

77391ARING, FUEL INLET BOX

main77391-33010iMHU38¥360200503-200812

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-48050iMHU38¥3,340200503-200812

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48050iMHU38¥3,340200503-200812

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-48080iMHU38¥16,200200503-200812

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iMHU38¥230200503-200812

77651BCUSHION, FUEL TANK

main77651-44010iMHU38¥1,020200503-200812

77652ACUSHION, FUEL TANK, NO.2

main77652-20110iMHU38¥1,040200503-200812

sub77652-33010¥1,030

77653ACUSHION, FUEL TANK, NO.3

main77653-36010iMHU38¥600200503-200812

77654ACUSHION, FUEL TANK, NO.4

main77651-26070iMHU38¥990200503-200812

77681SEAT, FUEL TANK BAND, RH

main77616-48020iMHU38¥460200503-200812

77682SEAT, FUEL TANK BAND, LH

main77616-48030iMHU38¥460200503-200812

77740CANISTER ASSY, CHARCOAL

main77740-48130iMHU38¥10,900200503-200812

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-48060iMHU38¥680200503-200812

77759HOSE, CHARCOAL CANISTER

main77759-48030iMHU38¥650200503-200812

77765PROTECTOR, CHARCOAL CANISTER

main77765-48030iMHU38¥7,100200503-200812

77785HARNESS, FUEL PUMP

main77785-52020iMHU38¥460200503

8401

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380¥120

9011906347

main90119-06347¥80

9011906430

main90119-06430¥120

9011906442

main90119-06442¥120

9011906767

main90119-06767¥60

9011910502

main90119-10502¥150

9011910922

main90119-10922¥170

9015950343

main90159-50343¥60

9015960561

main90159-60561¥70

9017906156

main90179-06156¥140

9018306019

main90183-06019¥80

9018906006

main90189-06006¥100

9018906013

main90189-06013¥70

9026906017

main90269-06017¥140

9046022002

main90460-22002¥530

9046037003

main90460-37003¥190

9046400745

main90464-00745¥200

9046611003

main90466-11003¥100

9048010024

main90480-10024¥100

9056110021

main90561-10021¥70

91631B0820

main91631-B0820¥90

91651B0614

main91651-B0614¥100

9415080600

main94150-80600¥60

9613251100

main96132-51100¥120

9613341300

main96133-41300¥90

86 parts on this diagram · 2 diagrams in section
