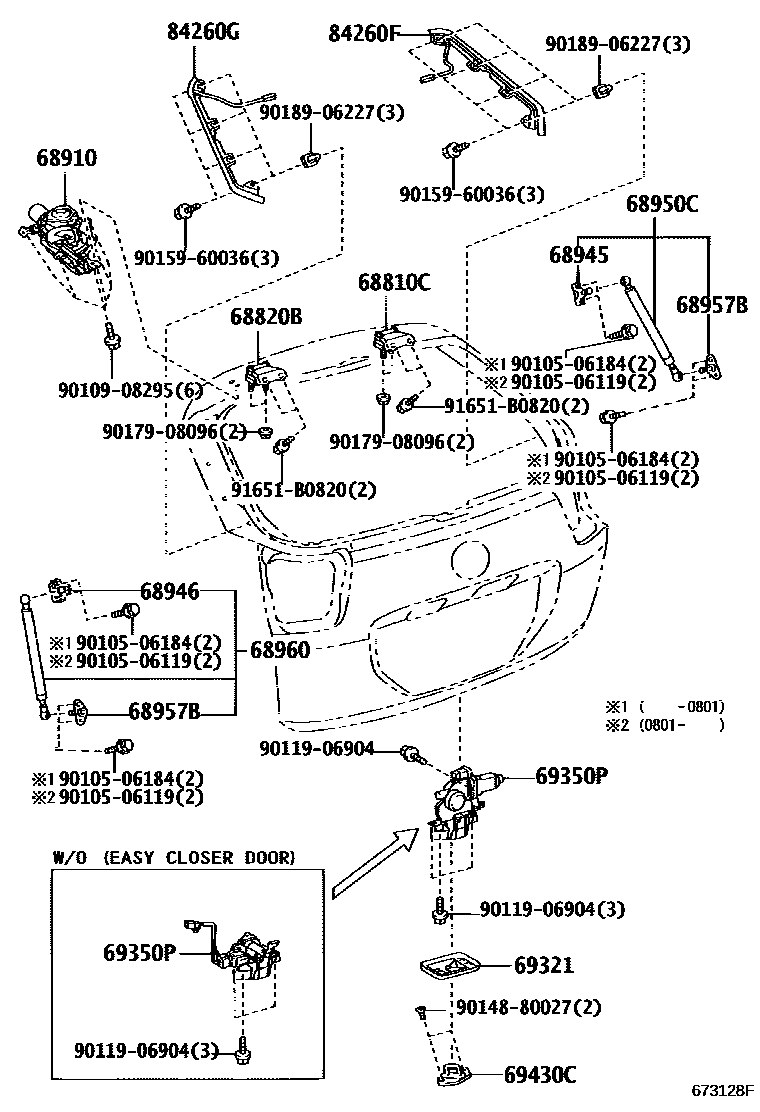

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-48010iMHU38200503-200812

sub68810-48011

68820BHINGE ASSY, BACK DOOR, LH

main68810-48010iMHU38200503-200812

sub68810-48011

68910UNIT ASSY, POWER BACK DOOR

main68910-48010iMHU38200503-200703

W(POWER BACK DOOR)

main68910-48011iMHU38..LHD200704-200706

CHINA SPEC&W(POWER BACK DOOR)

main68910-48012iMHU38..LHD200707-200806

CHINA SPEC&W(POWER BACK DOOR)

main68910-48013iMHU38..LHD200807-200812

CHINA SPEC&W(POWER BACK DOOR)

sub68910-48014

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48030iMHU38200503-200812

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-48030iMHU38200503-200812

68950CSTAY ASSY, BACK DOOR, RH

main68950-49105supersedes 68950-49215iMHU38200503-200505

W(POWER BACK DOOR)

main68950-49185supersedes 68950-49215iMHU38200505-200704

W(POWER BACK DOOR)

main68950-49205supersedes 68950-49215iMHU38200704-200812

W(POWER BACK DOOR)

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-13020×2iMHU38200503-200812

68960STAY ASSY, BACK DOOR, LH

main68960-49105supersedes 68960-49215iMHU38200503-200505

W(POWER BACK DOOR)

main68960-49185supersedes 68960-49215iMHU38200505-200704

W(POWER BACK DOOR)

main68960-49205supersedes 68960-49215iMHU38200704-200812

W(POWER BACK DOOR)

69321COVER, BACK DOOR LOCK

main69321-22020iMHU38200503-200812

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-22010iMHU38..RHD200608-200812

AUSTRALIA SPEC

sub69350-22011

main69350-48030iMHU38..LHD200608-200812

TAIWAN SPEC&W(POWER BACK DOOR)

sub69350-48031

main69350-48050supersedes 69350-48040iMHU38200503-200812

W(POWER BACK DOOR)

sub69350-48051

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48010iMHU38200503-200812

84260FSENSOR ASSY, POWER BACK DOOR, RH

main84260-48010iMHU38200503-200707

W(POWER BACK DOOR)

main84260-48011iMHU38200708-200812

W(POWER BACK DOOR)

84260GSENSOR ASSY, POWER BACK DOOR, LH

main84260-48020iMHU38200503-200707

W(POWER BACK DOOR)

main84260-48021iMHU38200708-200812

W(POWER BACK DOOR)

9010506119

main90105-06119

9010506184

main90105-06184

9010908295

main90109-08295

9011906904

main90119-06904

9014880027

main90148-80027

9015960036

main90159-60036

9017908096

main90179-08096

9018906227

main90189-06227

91651B0820

main91651-B0820

22 parts on this diagram · 1 diagram in section
