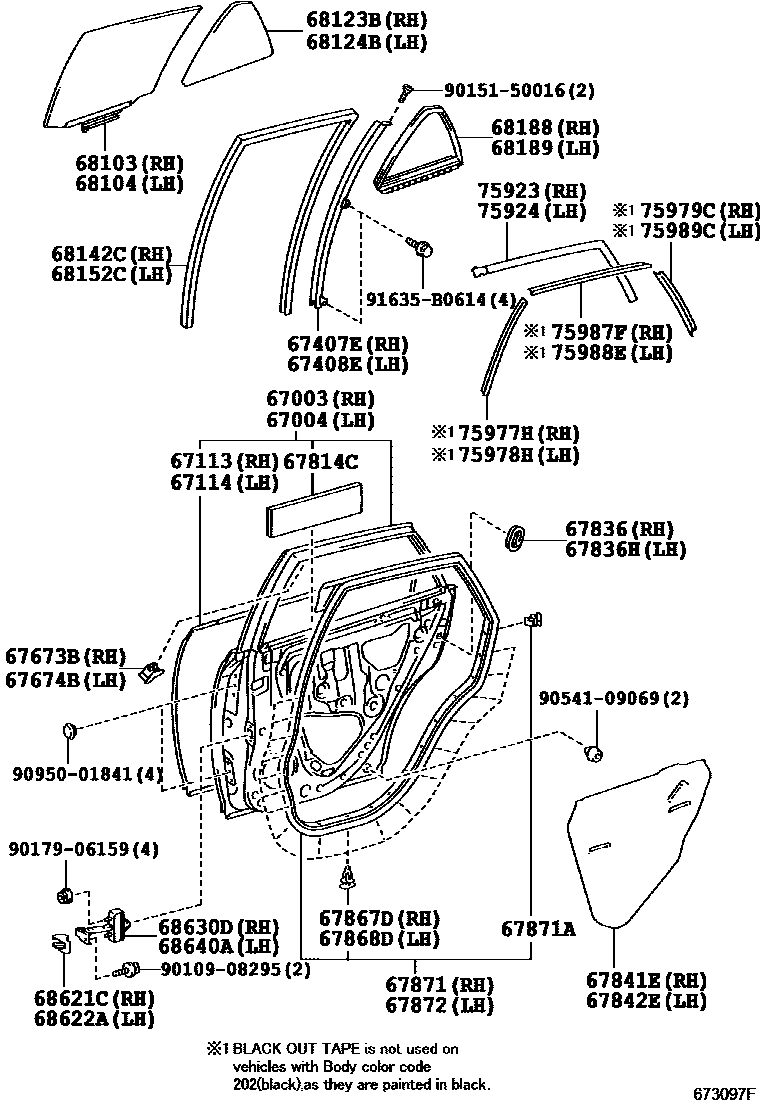

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673BGARNISH, REAR DOOR FRAME, RH
67674BGARNISH, REAR DOOR FRAME, LH
67814CPACKING, DOOR PROTECTOR
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*SERT,T=4.0,DK.GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*SERT,T=4.0,DK.GRAY
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*SERT,T=4.0,DK.GRAY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*SERT,T=4.0,DK.GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH
9010908295
9015150016
9017906159
9054109069
9095001841
91635B0614
44 parts on this diagram · 2 diagrams in section
