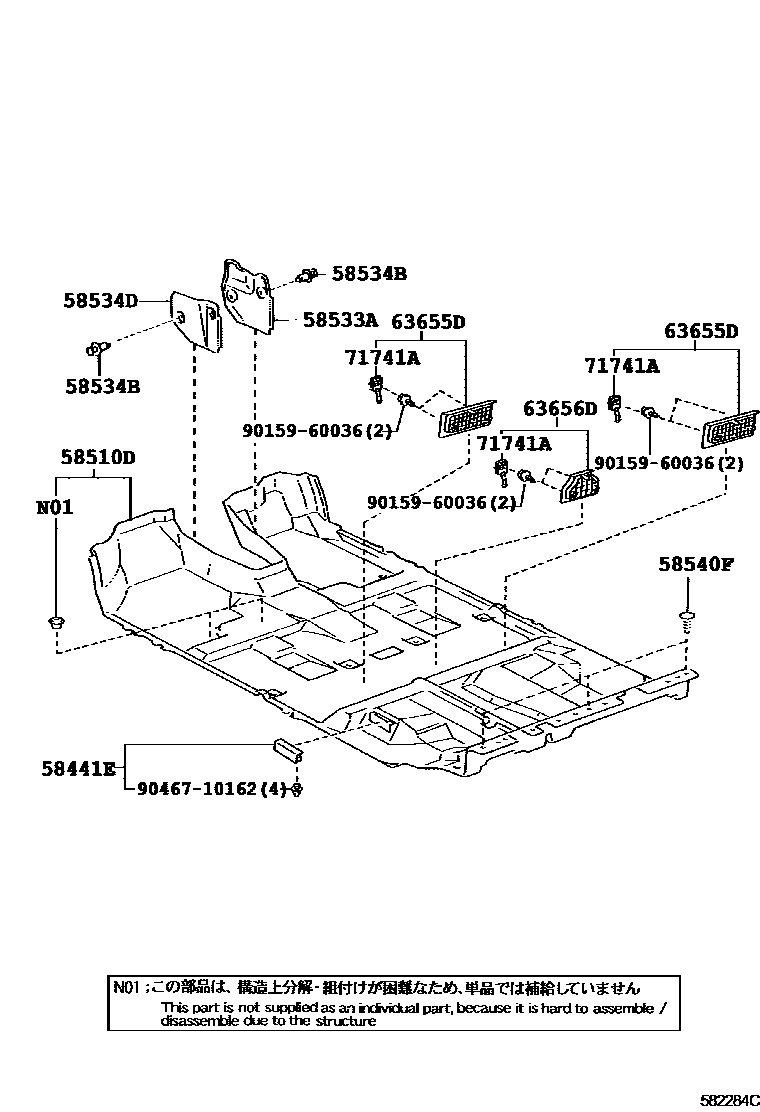

MAT & CARPET
58441ECOVER, BATTERY SERVICE HOLE
58510DCARPET ASSY, FLOOR, FRONT
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58533ACOVER, FLOOR CARPET, CENTER RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
58534DCOVER, FLOOR CARPET, CENTER LH
58540FCLIP(FOR REAR FLOOR CARPET)
63655DCOVER, AIR INTAKE
63656DCOVER, AIR INTAKE, CENTER
71741ACOVER, AIR HOLE
9015960036
main90159-60036
9046710162
main90467-10162
11 parts on this diagram · 1 diagram in section
