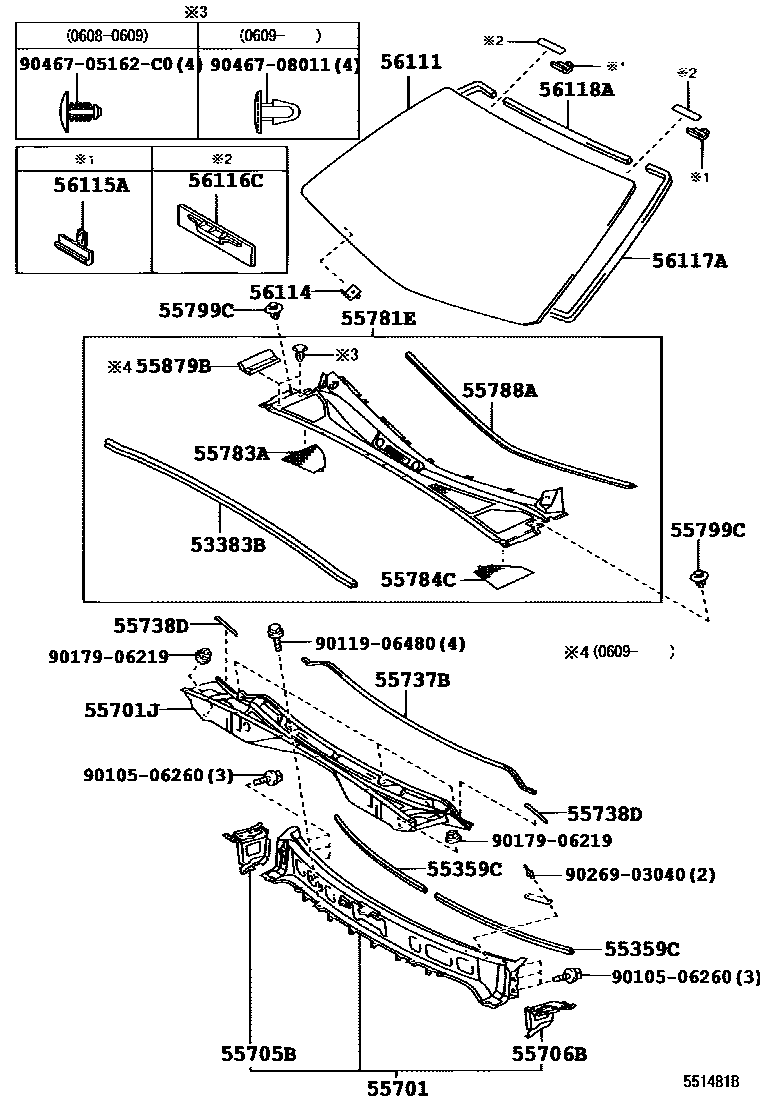

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48031iMHU38200503-200812

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-48020×2iMHU38200503-200812

55701PANEL SUB-ASSY, COWL

main55700-48070iMHU38..RHD200503-200812

main55700-48080iMHU38..LHD200503-200812

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-48030iMHU38..RHD200503-200601

main55701-48040iMHU38..LHD200503-200508

main55701-48060iMHU38..LHD200509-200812

main55701-48070iMHU38..RHD200601-200812

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-48020iMHU38200503-200812

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-48020iMHU38200503-200812

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-48020iMHU38200503-200812

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-48020×2iMHU38200503-200812

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48011iMHU38..RHD200503-200607

main55708-48012iMHU38..RHD200608-200812

main55708-48041supersedes 55708-48031iMHU38..LHD200503-200607

W(WINDSHIELD WIPER DEICER)

main55708-48042supersedes 55708-48032iMHU38..LHD200608-200812

W(WINDSHIELD WIPER DEICER)

55783APAD, COWL TOP SILENCER

main55783-48010iMHU38200503-200812

main55783-48020iMHU38..LHD200503-200812

W(WINDSHIELD WIPER DEICER)

55784CPAD, COWL TOP SILENCER, LH

main55784-48010iMHU38200503-200812

main55784-48020iMHU38..LHD200503-200812

W(WINDSHIELD WIPER DEICER)

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-48040iMHU38200503-200812

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-48020×2iMHU38200503-200812

55879BSEAL, COWL VENT

main55879-48010×2iMHU38200609-200812

56111GLASS, WINDSHIELD

main56101-48180supersedes 56101-48170iMHU38..RHD200503-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE

sub56101-48181

main56101-48200supersedes 56101-48170iMHU38..RHD200503-200512

*LAM,T=5.48,GREEN,LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)

main56101-48201supersedes 56101-48170iMHU38..RHD200601-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)

sub56101-48202

main56101-48220supersedes 56101-48210iMHU38..LHD200503-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE

main56101-48240supersedes 56101-48210iMHU38..LHD200503-200512

*LAM,T=5.48,GREEN,LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)

main56101-48241supersedes 56101-48210iMHU38..LHD200601-200812

*LAM,T=5.48,GREEN,LUXURY PACKAGE&W(WINDSHIELD WIPER DEICER)

56114RETAINER, WINDSHIELD GLASS

main56114-22050iMHU38200503-200812

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iMHU38200503-200812

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iMHU38200503-200812

56117ADAM, WINDOW GLASS ADHESIVE

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

9011906480

main90119-06480

9017906219

main90179-06219

9026903040

main90269-03040

9046705162C0

main90467-05162C0

9046708011

main90467-08011

25 parts on this diagram · 1 diagram in section
