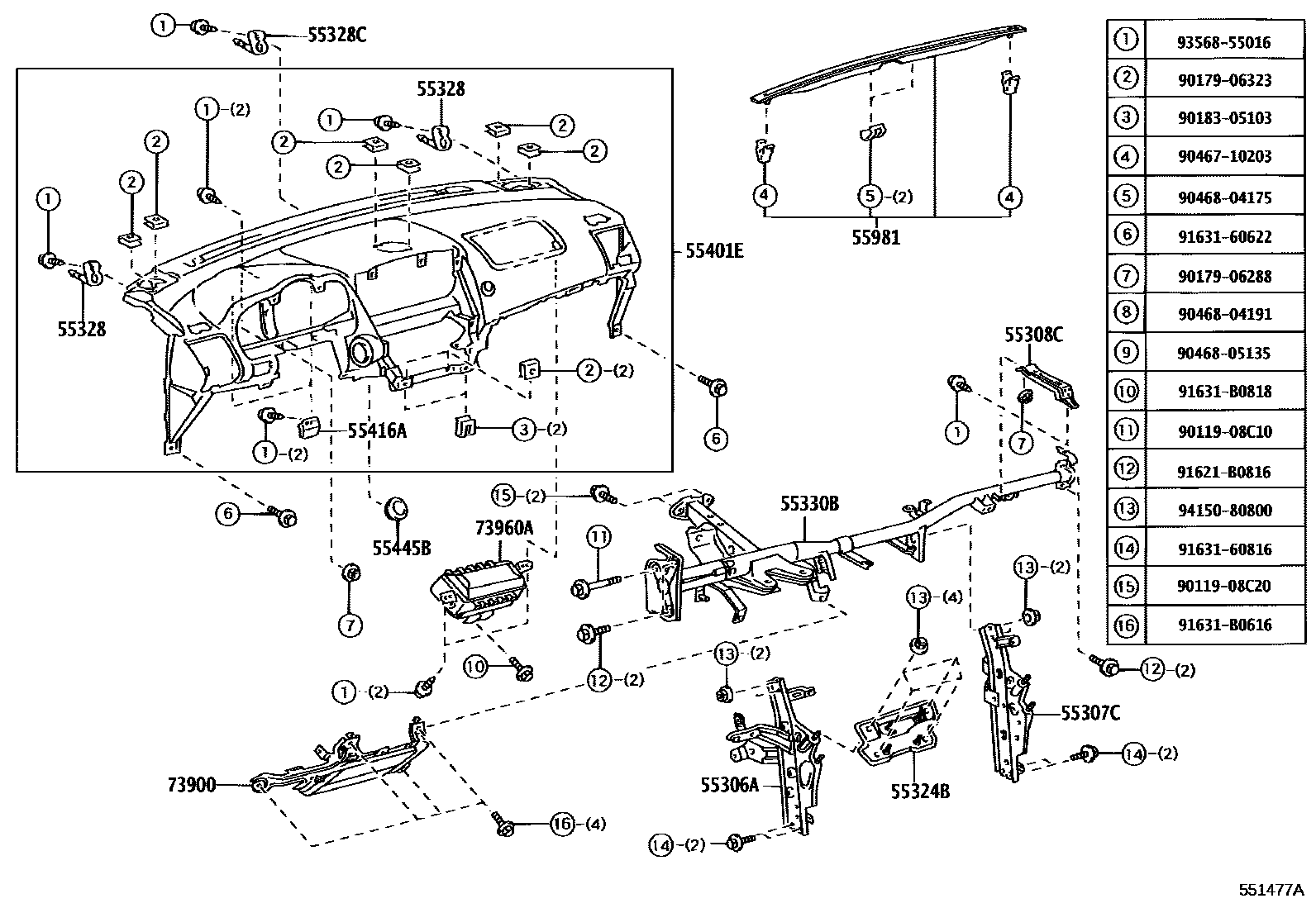

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-48050iMHU38..RHD200503-200812

main55306-48060iMHU38..LHD200503-200812

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-48050iMHU38..RHD200503-200812

main55307-48060iMHU38..LHD200503-200812

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-48050iMHU38..RHD200503-200812

main55308-48060iMHU38..LHD200503-200812

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-48030iMHU38..RHD200503-200812

main55324-48040iMHU38..LHD200503-200812

55328PIN, INSTRUMENT PANEL, NO.1

main55328-48040×2iMHU38200503-200812

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-48040iMHU38200503-200812

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-48120iMHU38..RHD200503-200812

main55330-48130iMHU38..LHD200503-200812

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-48080-B0supersedes 55401-48070-B0iMHU38..RHD200608-200812

AUDIO-DVDCH/CST ML 11SP RHD,SADDLE GRAY,TRIM0#

main55401-48080-C0supersedes 55401-48070-C0iMHU38..RHD200608-200812

AUDIO-DVDCH/CST RDS ML11SP R,BLACK,TRIM1#,2#

main55401-48100-B0supersedes 55401-48090-B0iMHU38..LHD200503-200812

AUDIO-MARK LEVINSON 11SPEAKER RDS LHD,SADDLE GRAY,TRIM0#

main55401-48100-C0supersedes 55401-48090-C0iMHU38..LHD200608-200812

AUDIO-AMFM CDCH ML 11SP LHD,BLACK,TRIM1#,2#

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iMHU38200503-200812

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-51020-B7iMHU38200503-200812

SADDLE GRAY,TRIM0#

main55445-51020-C0iMHU38200503-200812

BLACK,TRIM1#,2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-48020-B0iMHU38200503-200812

SADDLE GRAY,TRIM0#

main55981-48020-C0iMHU38200503-200812

BLACK,TRIM1#,2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-48010-A0iMHU38..RHD200503-200812

IVORY,TRIM0#

main73900-48010-B0iMHU38..RHD200503-200812

LT.GRAY,TRIM1#

main73900-48010-C0iMHU38..RHD200503-200812

BLACK,TRIM2#

main73900-48020-A0iMHU38..LHD200503-200812

IVORY,TRIM0#

main73900-48020-B0iMHU38..LHD200503-200812

LT.GRAY,TRIM1#

main73900-48020-C0iMHU38..LHD200503-200812

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-48010iMHU38..RHD200503-200812

main73960-48020iMHU38..LHD200503-200812

9011908C10

main90119-08C10

9011908C20

main90119-08C20

9017906288

main90179-06288

9017906323

main90179-06323

9018305103

main90183-05103

9046710203

main90467-10203

9046804175

main90468-04175

9046804191

main90468-04191

9046805135

main90468-05135

91621B0816

main91621-B0816

9163160622

main91631-60622

9163160816

main91631-60816

91631B0616

main91631-B0616

91631B0818

main91631-B0818

9356855016

main93568-55016

9415080800

main94150-80800

29 parts on this diagram · 8 diagrams in section
