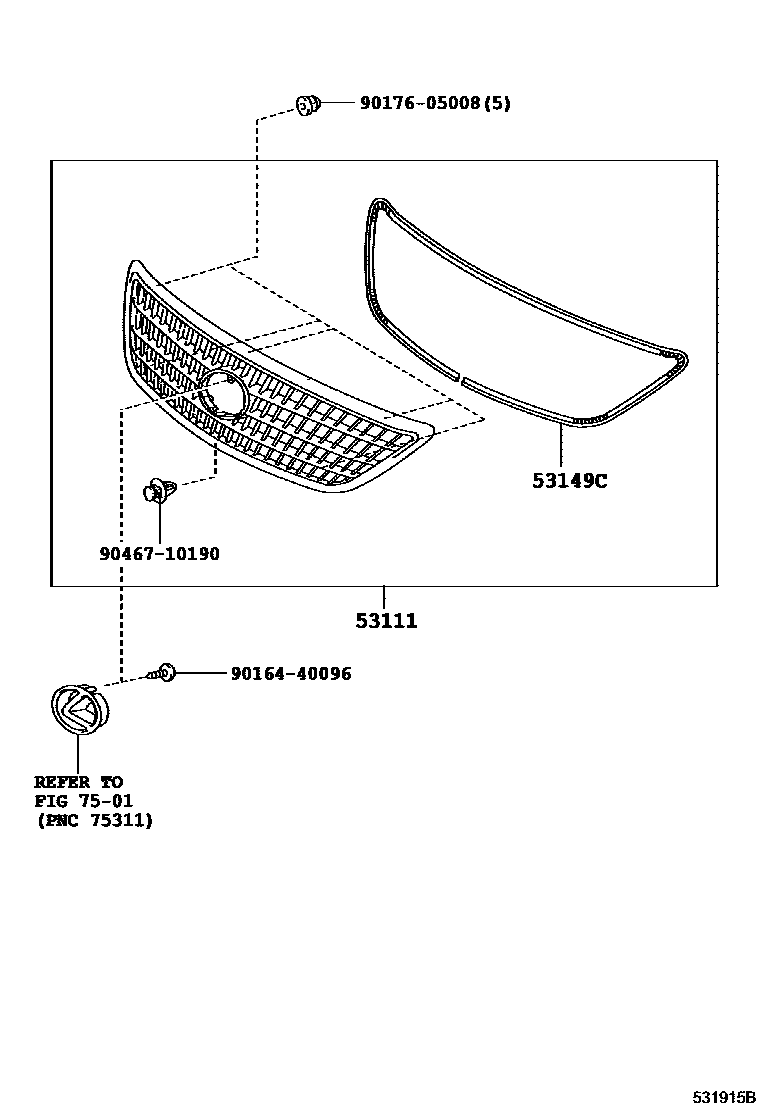

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-48110iMHU38200503-200708

PLATED

sub53101-48221

main53101-48220iMHU38..RHD200708-200709

PLATED,AUSTRALIA SPEC&TOWING PACKAGE-1500KG

sub53101-48140

sub53101-48221

sub53101-48300

main53101-48220iMHU38..RHD200708-200709

PLATED,NEW ZEALAND SPEC&TOWING PACKAGE-1500KG

sub53101-48140

sub53101-48221

sub53101-48300

main53101-48220iMHU38..RHD200708-200709

PLATED,TOWING PACKAGE-2000KG

sub53101-48140

sub53101-48221

sub53101-48300

main53101-48220iMHU38200709-200812

PLATED

sub53101-48140

sub53101-48221

sub53101-48300

main53101-48300iMHU38..LHD200802-200812

PLATED,MOSCOW SPEC

main53101-48300iMHU38..LHD200802-200812

PLATED,MOSCOW SPEC&TOWING PACKAGE-2000KG

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-48020iMHU38200503-200707

sub53149-48021

main53149-48021iMHU38..RHD200708-200709

AUSTRALIA SPEC&TOWING PACKAGE-1500KG

main53149-48021iMHU38..RHD200708-200709

NEW ZEALAND SPEC&TOWING PACKAGE-1500KG

main53149-48021iMHU38..RHD200708-200709

TOWING PACKAGE-2000KG

main53149-48021iMHU38200709-200812

7501

9016440096

main90164-40096

9017605008

main90176-05008

9046710190

main90467-10190

6 parts on this diagram · 1 diagram in section
