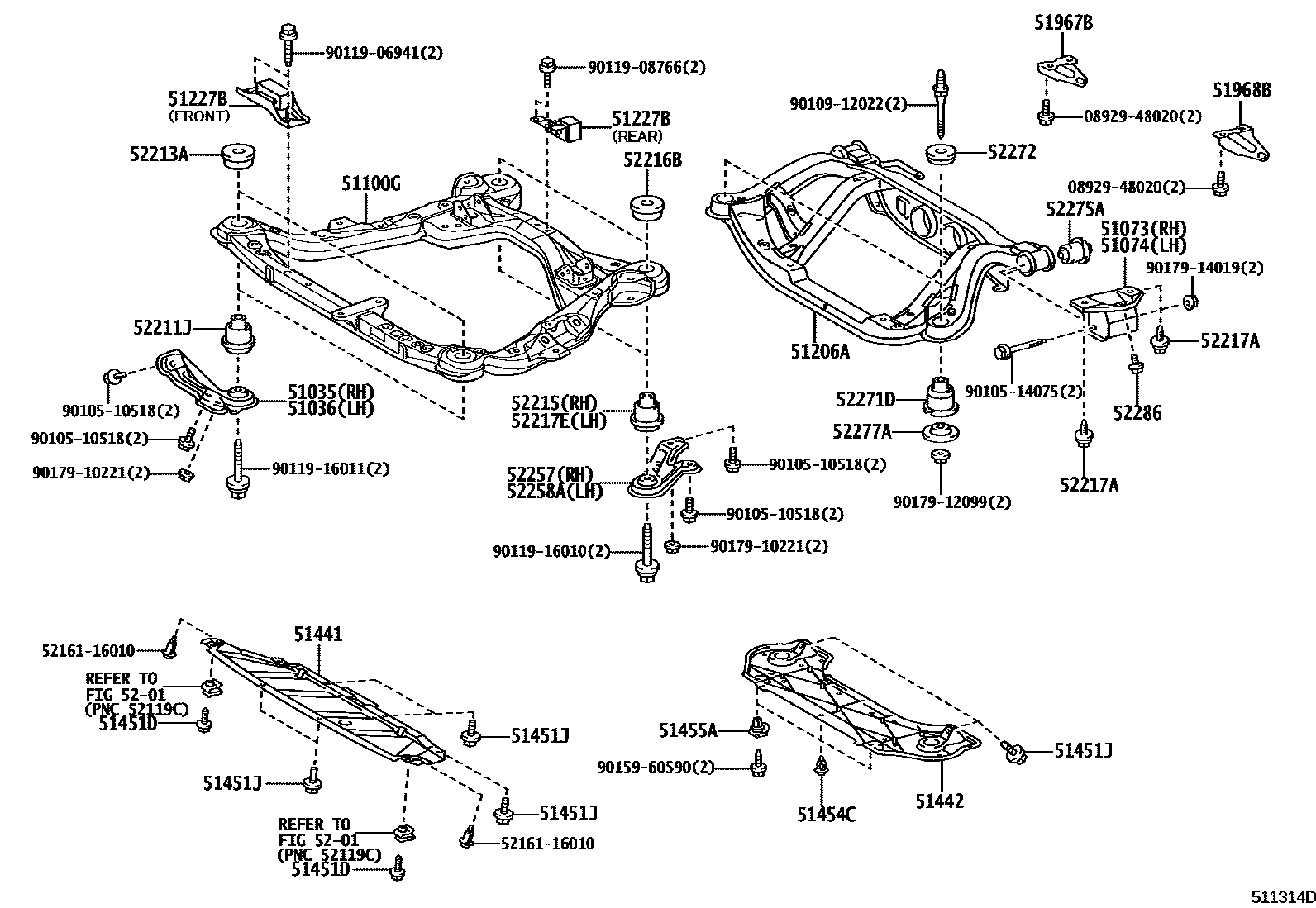

SUSPENSION CROSSMEMBER & UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iMHU38¥6,700200503-200812

sub51035-48021¥6,700

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iMHU38¥6,700200503-200812

sub51036-48021¥6,700

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-48010iMHU38¥7,500200503-200812

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-48010iMHU38¥7,400200503-200812

51100GFRAME ASSY, FRONT

main51100-48040iMHU38¥86,900200503-200703

sub51100-48060¥86,900

main51100-48060iMHU38¥86,900200704-200806

sub51100-48061¥86,900

main51100-48061iMHU38¥86,900200807-200812

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48050iMHU38¥78,900200503-200812

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48040iMHU38¥6,000200503-200812

REAR

main51227-48090iMHU38¥6,200200503-200812

FRONT

51441COVER, ENGINE UNDER, NO.1

main51440-48040iMHU38¥7,500200503-200812

51442COVER, ENGINE UNDER, NO.2

main51442-48020iMHU38¥9,500200503-200812

sub51442-48021¥9,500

51451DSCREW, NO.1

main90159-60444iMHU38¥100200503-200812

51451JBOLT, NO.1

main90119-06699iMHU38¥70200503-200812

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-48010iMHU38¥240200503-200812

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010iMHU38¥320200503-200812

51967BHOOK, TRANSPORT, REAR RH

main51967-48020iMHU38¥2,730200503-200812

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iMHU38¥1,940200503-200812

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iMHU38¥4,930200503-200812

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iMHU38¥2,330200503-200812

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iMHU38¥6,200200503-200812

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iMHU38¥1,860200503-200812

52217ABOLT, BODY MOUNTING

main52217-48010iMHU38¥230200503-200812

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iMHU38¥5,900200503-200812

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iMHU38¥3,690200503-200812

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48030iMHU38¥5,400200503-200704

main51024-48040iMHU38¥4,430200705-200812

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010iMHU38¥4,570200503-200812

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iMHU38¥810200503-200812

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-48010iMHU38¥4,930200503-200812

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-32010iMHU38¥1,350200503-200812

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-48010iMHU38¥230200503-200812

0892948020

main08929-48020

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010¥120

9010510518

main90105-10518¥140

9010514075

main90105-14075¥610

9010912022

main90109-12022¥610

9011906941

main90119-06941¥80

9011908766

main90119-08766¥160

9011916010

main90119-16010¥780

9011916011

main90119-16011¥780

9015960590

main90159-60590¥60

9017910221

main90179-10221¥90

9017912099

main90179-12099¥310

9017914019

main90179-14019¥130

42 parts on this diagram · 1 diagram in section
