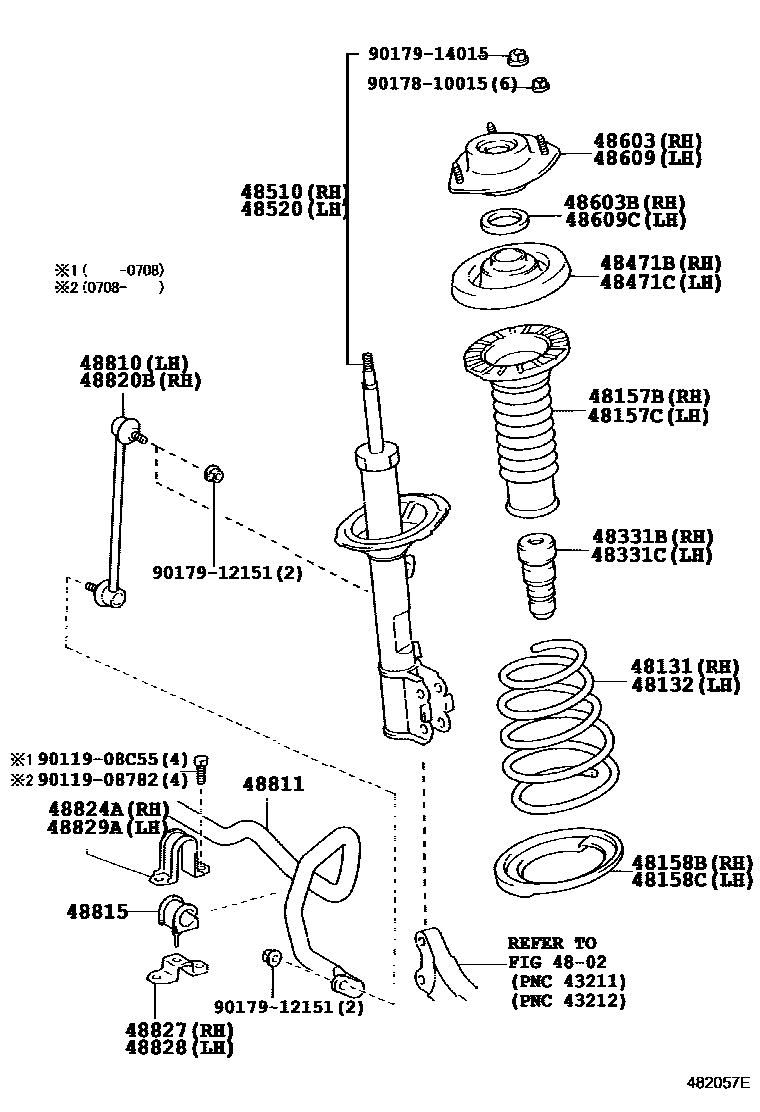

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-48140
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-48140
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908782
main90119-08782
9011908C55
main90119-08C55
9017810015
main90178-10015
9017912151
main90179-12151
9017914015
main90179-14015
30 parts on this diagram · 1 diagram in section
