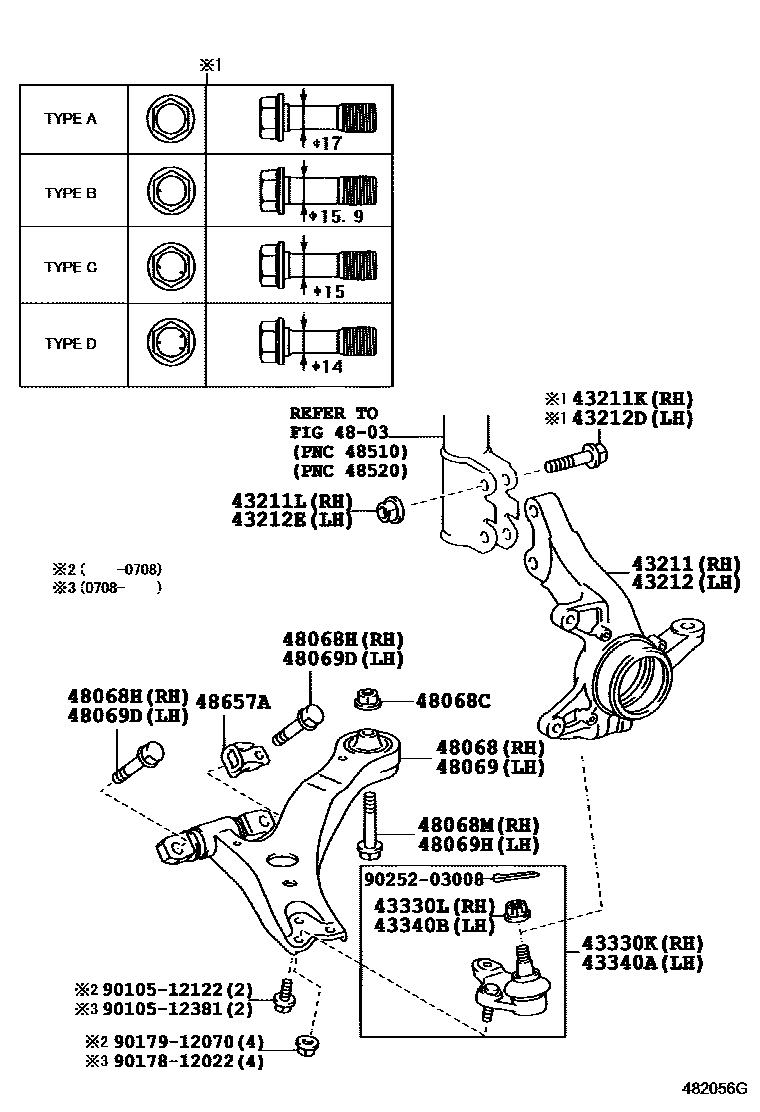

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=17,TYPE A:REFER ILLUST.
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=17,TYPE A:REFER ILLUST.
OD=15.9,TYPE B:REFER ILLUST.
OD=15,TYPE C:REFER ILLUST.
OD=14,TYPE D:REFER ILLUST.
43212ENUT (FOR STEERING KNUCKLE LH)
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
sub48068-58010
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
sub48069-58010
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48657ASTOPPER, FRONT LOWER ARM BUSH
9010512122
main90105-12122
9010512381
main90105-12381
9017812022
main90178-12022
9017912070
main90179-12070
9025203008
main90252-03008
24 parts on this diagram · 1 diagram in section
