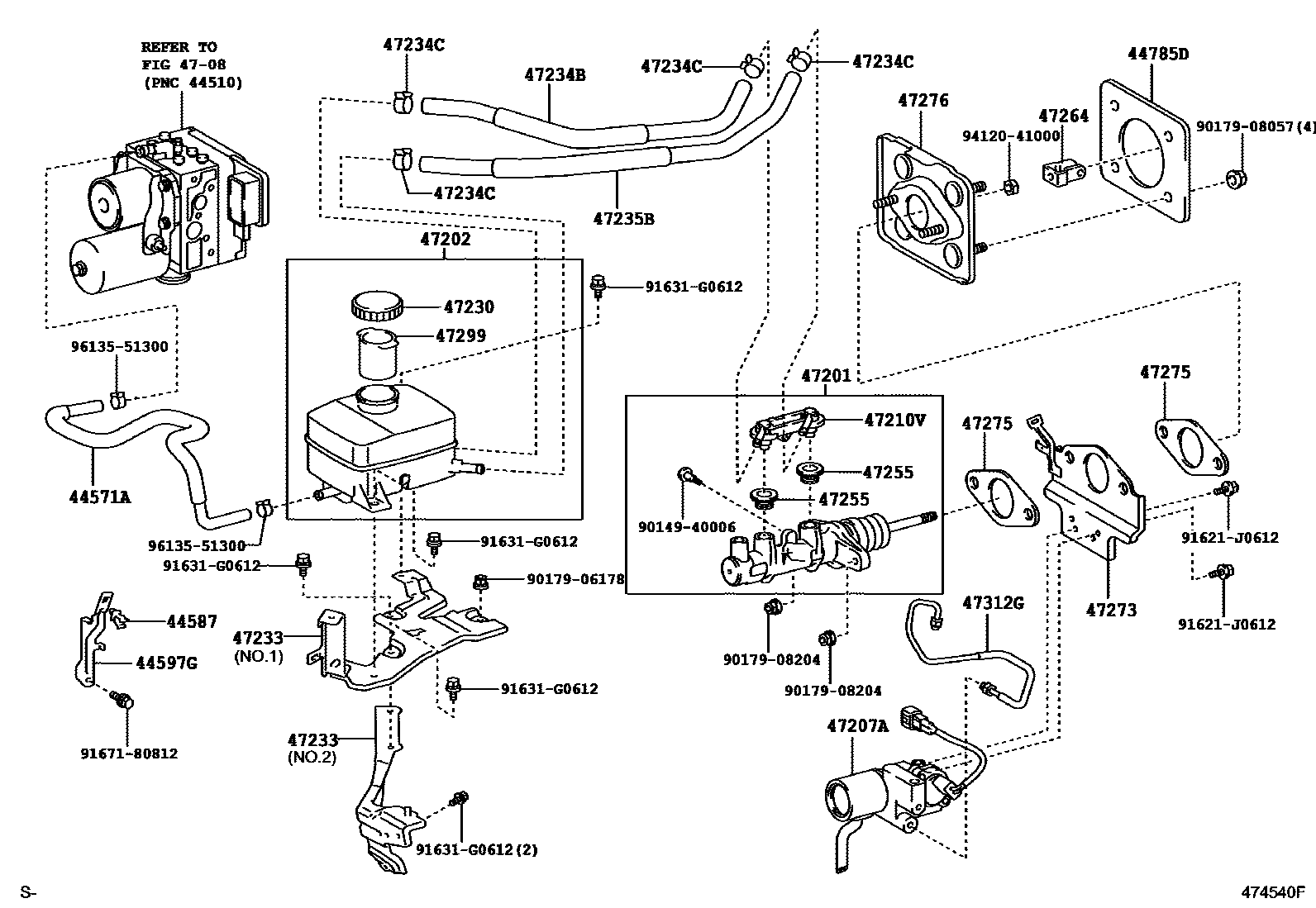

BRAKE MASTER CYLINDER
44571AHOSE, BRAKE ACTUATOR, NO.1
44587CLAMP, BRAKE ACTUATOR HOSE
44597GBRACKET, BRAKE ACTUATOR, NO.7
44785DGASKET, BRAKE MASTER CYLINDER
4708
47201CYLINDER SUB-ASSY, BRAKE MASTER
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR
47210VUNION(FOR BRAKE MASTER CYLINDER)
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
sub47230-11010
47234BTUBE, RESERVOIR, NO.1
NO.1
NO.2
47234CCLIP(FOR RESERVOIR TUBE NO.1)
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
NO.1
NO.2
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47273BRACKET, BRAKE STROKE SIMULATOR
47275GASKET, BRAKE MASTER CYLINDER
47276BRACKET, BRAKE MASTER CYLINDER
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47312GTUBE, BRAKE STROKE SIMULATOR
9014940006
main90149-40006
9017906178
main90179-06178
9017908057
main90179-08057
9017908204
main90179-08204
91621J0612
main91621-J0612
91631G0612
main91631-G0612
9167180812
main91671-80812
9412041000
main94120-41000
9613551300
main96135-51300
30 parts on this diagram · 2 diagrams in section
