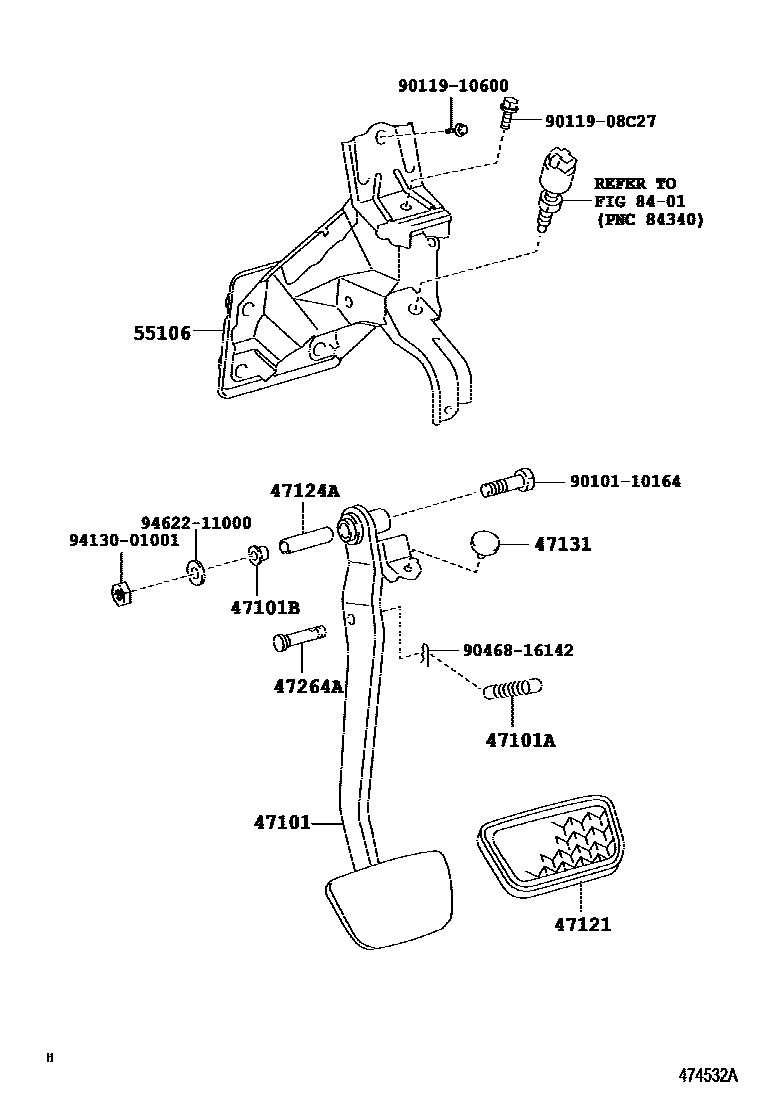

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-48090iMHU38..RHD200503-200812

main47101-48100iMHU38..LHD200503-200812

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14052iMHU38200503-200812

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMHU38200503-200812

47121PAD, BRAKE PEDAL

main47121-50020iMHU38200503-200812

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10105iMHU38200503-200812

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMHU38200503-200812

47264APIN(FOR PUSH ROD)

main90249-10064iMHU38200503-200812

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48101iMHU38..RHD200503-200803

sub55106-48102

main55106-48102iMHU38..RHD200804-200812

main55106-48111iMHU38..LHD200503-200803

sub55106-48112

main55106-48112iMHU38..LHD200804-200812

8401

9010110164

main90101-10164

9011908C27

main90119-08C27

9011910600

main90119-10600

9046816142

main90468-16142

9413001001

main94130-01001

9462211000

main94622-11000

15 parts on this diagram · 1 diagram in section
