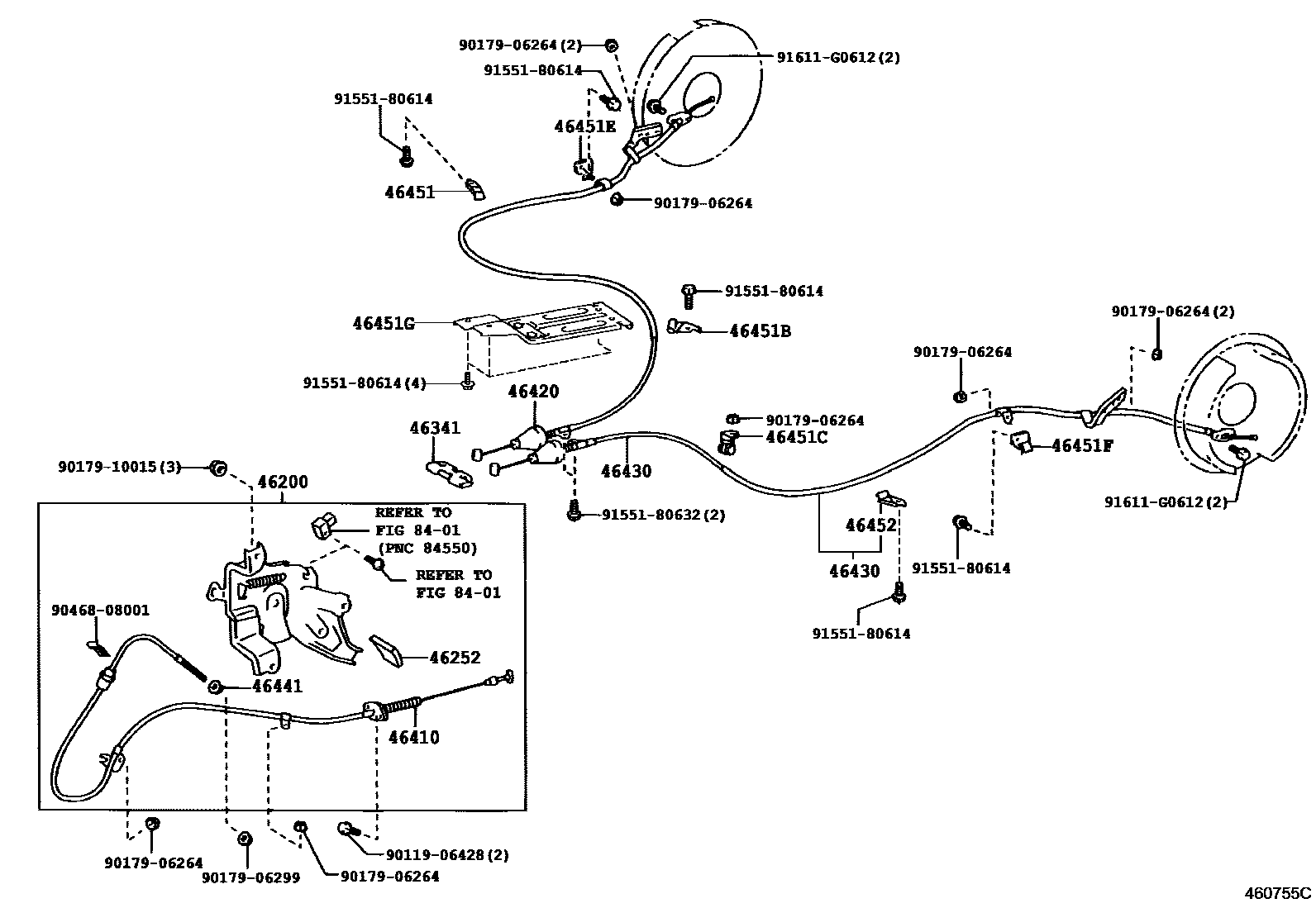

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-48070iMHU38..RHD200503-200812

main46200-48080iMHU38..LHD200503-200812

46252PAD, PARKING PEDAL

main46252-68010iMHU38200503-200812

46341EQUALIZER, PARKING BRAKE

main46341-48010iMHU38200503-200812

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-48070iMHU38..RHD200503-200812

main46410-48080iMHU38..LHD200503-200812

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-48100iMHU38200503-200710

sub46420-48180

main46420-48180iMHU38200711-200812

sub46420-48181

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-48100iMHU38200503-200710

sub46430-48180

main46430-48180iMHU38200711-200812

sub46430-48181

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iMHU38200503-200812

46451BRACKET, CABLE SUPPORT

main46451-48110iMHU38200503-200812

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-48100iMHU38200503-200812

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-48130iMHU38200503-200812

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-48080iMHU38200503-200812

46451FBRACKET, CABLE SUPPORT

main46451-48090iMHU38200503-200812

46451GBRACKET, CABLE SUPPORT

main46451-48140iMHU38200503-200812

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-48120iMHU38200503-200812

8401

9011906428

main90119-06428

9017906264

main90179-06264

9017906299

main90179-06299

9017910015

main90179-10015

9046808001

main90468-08001

9155180614

main91551-80614

9155180632

main91551-80632

91611G0612

main91611-G0612

23 parts on this diagram · 3 diagrams in section
