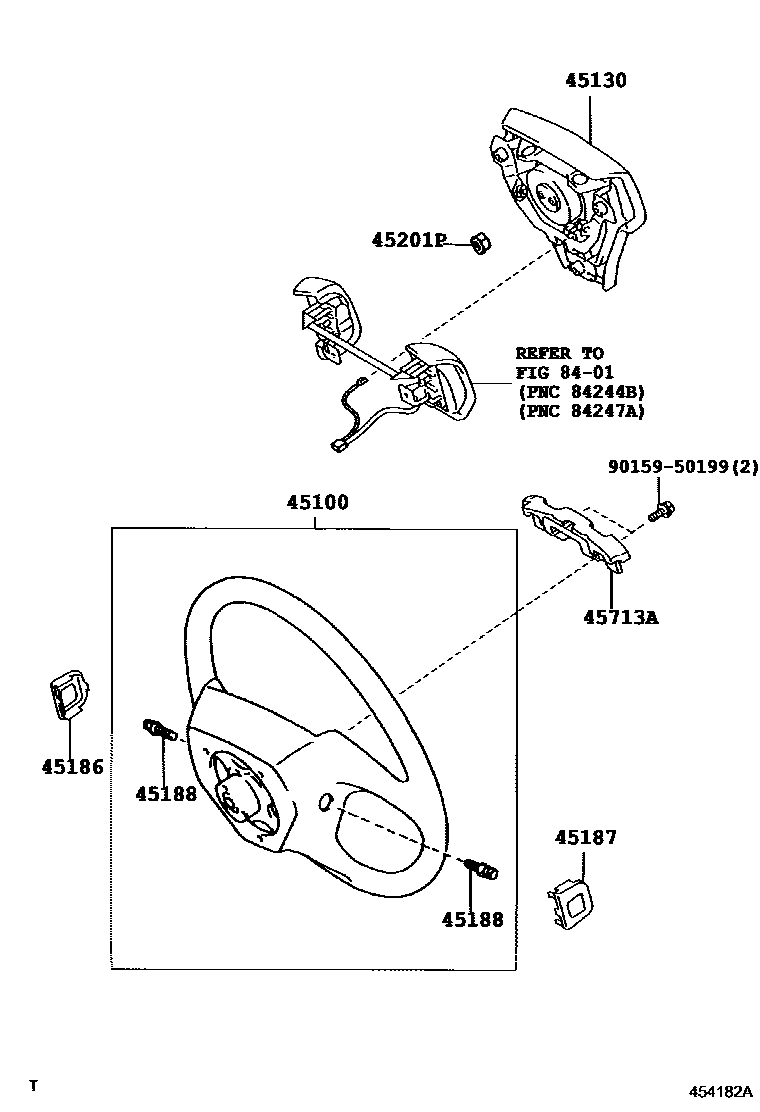

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48380-B0iMHU38200503-200812

3-SPOKE,LEATHER,SADDLE GRAY,TRIM0#

main45100-48380-C0iMHU38200503-200812

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

45130BUTTON ASSY, HORN

main45130-48110-B0iMHU38200503-200812

SADDLE GRAY,TRIM0#

main45130-48110-C0iMHU38200503-200812

BLACK,TRIM1#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-48010-B0iMHU38200503-200812

SADDLE GRAY,TRIM0#

sub45186-48010

main45186-48010-C0iMHU38200503-200812

BLACK,TRIM1#,2#

sub45186-48010

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48020-B1iMHU38200503-200812

SADDLE GRAY,TRIM0#

sub45187-48020

main45187-48020-C0iMHU38200503-200812

BLACK,TRIM1#,2#

sub45187-48020

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iMHU38200503-200812

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iMHU38200503-200812

45713ADAMPER, STEERING SHAKE

main45713-48060iMHU38200503-200812

8401

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
