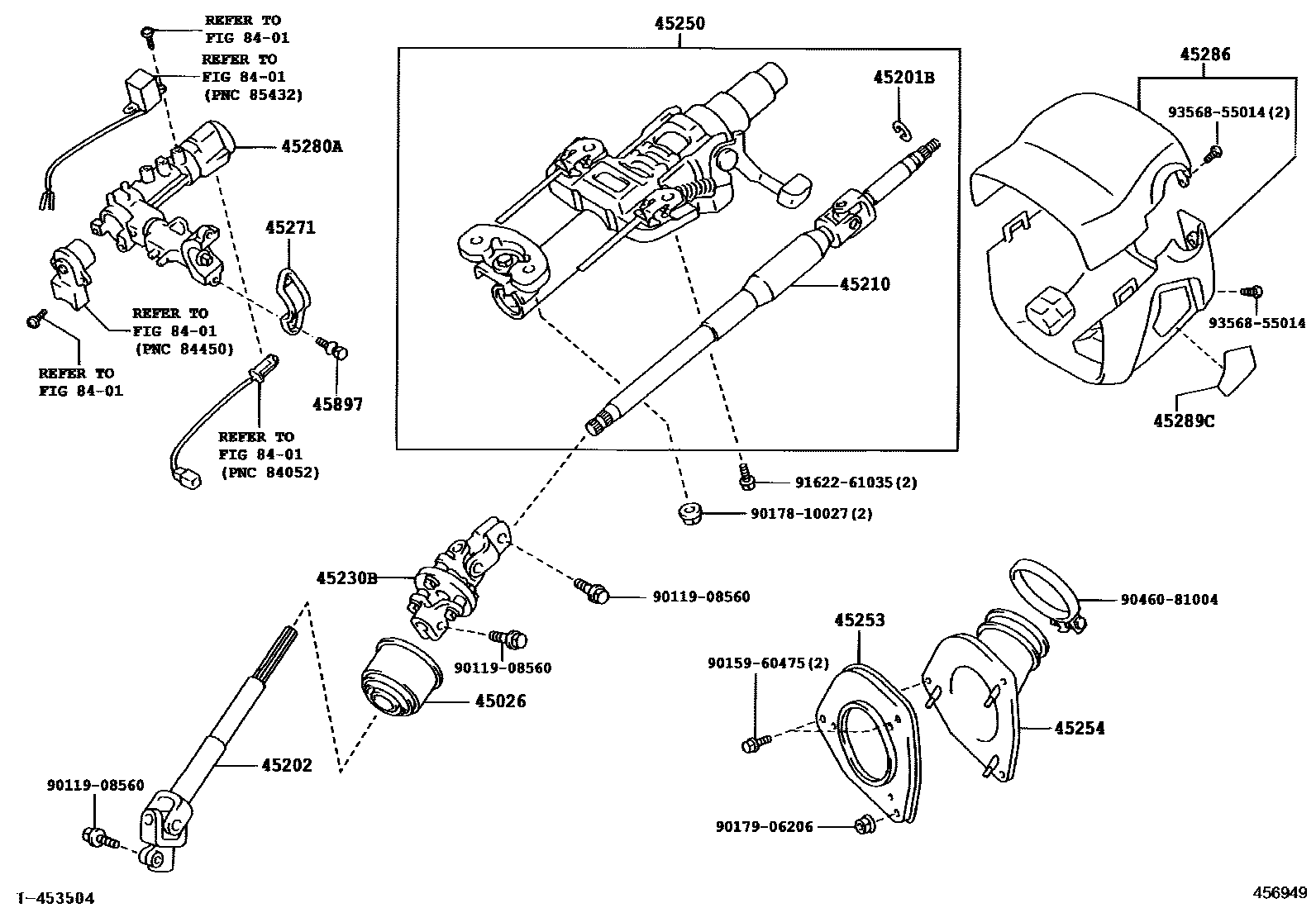

STEERING COLUMN & SHAFT

0001 1TILT STEERING 0002 1TILT & TELESCOPIC STEERING

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48050iMHU38200503-200812

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17004iMHU38200503-200812

T=1.20

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48070iMHU38..RHD200503-200812

main45202-48080iMHU38..LHD200503-200812

45210SHAFT ASSY, STEERING MAIN

main45210-48020iMHU38200503-200812

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-48050iMHU38200503-200812

45250COLUMN ASSY, STEERING

main45250-48050iMHU38200503-200812

45253COVER, STEERING COLUMN HOLE

main45253-48030iMHU38..RHD200503-200812

main45253-48040iMHU38..LHD200503-200812

45254SHIELD, STEERING COLUMN HOLE

main45254-48030iMHU38..RHD200503-200812

main45254-48040iMHU38..LHD200503-200812

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iMHU38200503-200812

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-48040iMHU38200503-200812

45286COVER, STEERING COLUMN

main45286-48900-B0iMHU38200503-200812

SADDLE GRAY,TRIM0#

sub45286-48900

main45286-48900-C0iMHU38200503-200812

BLACK,TRIM1#,2#

sub45286-48900

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-48010-B0iMHU38200503-200812

SADDLE GRAY,TRIM0#

main45289-48010-C0iMHU38200503-200812

BLACK,TRIM11,12,2#

45897BOLT, STEERING LOCK SET

main45897-12020iMHU38200503-200812

8401

9011908560

main90119-08560

9015960475

main90159-60475

9017810027

main90178-10027

9017906206

main90179-06206

9046081004

main90460-81004

9162261035

main91622-61035

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
