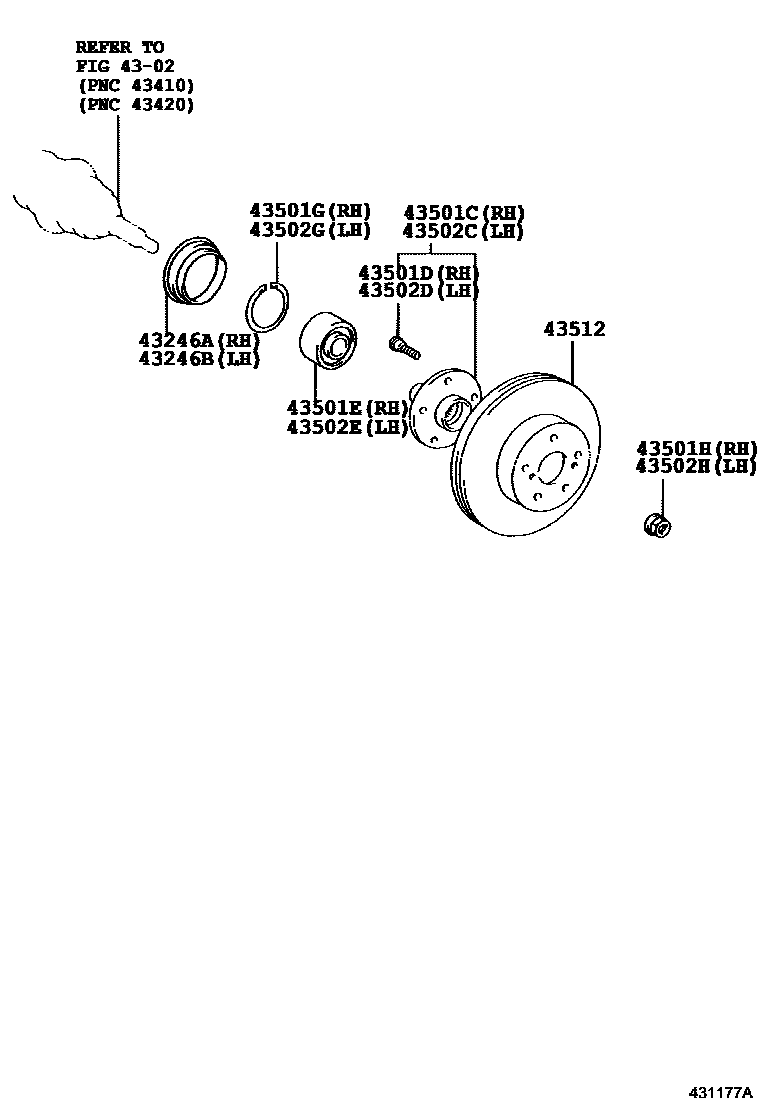

FRONT AXLE HUB

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iMHU38200503-200812

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iMHU38200503-200812

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28100iMHU38200503-200812

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMHU38200503-200812

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-45003iMHU38200503-200812

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iMHU38200503-200812

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMHU38200503-200812

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28100iMHU38200503-200812

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMHU38200503-200812

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-45003iMHU38200503-200812

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iMHU38200503-200812

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMHU38200503-200812

43512DISC, FRONT

main43512-48081iMHU38200505-200812

main43512-48100iMHU38200503-200505

sub43512-48081

14 parts on this diagram · 1 diagram in section
