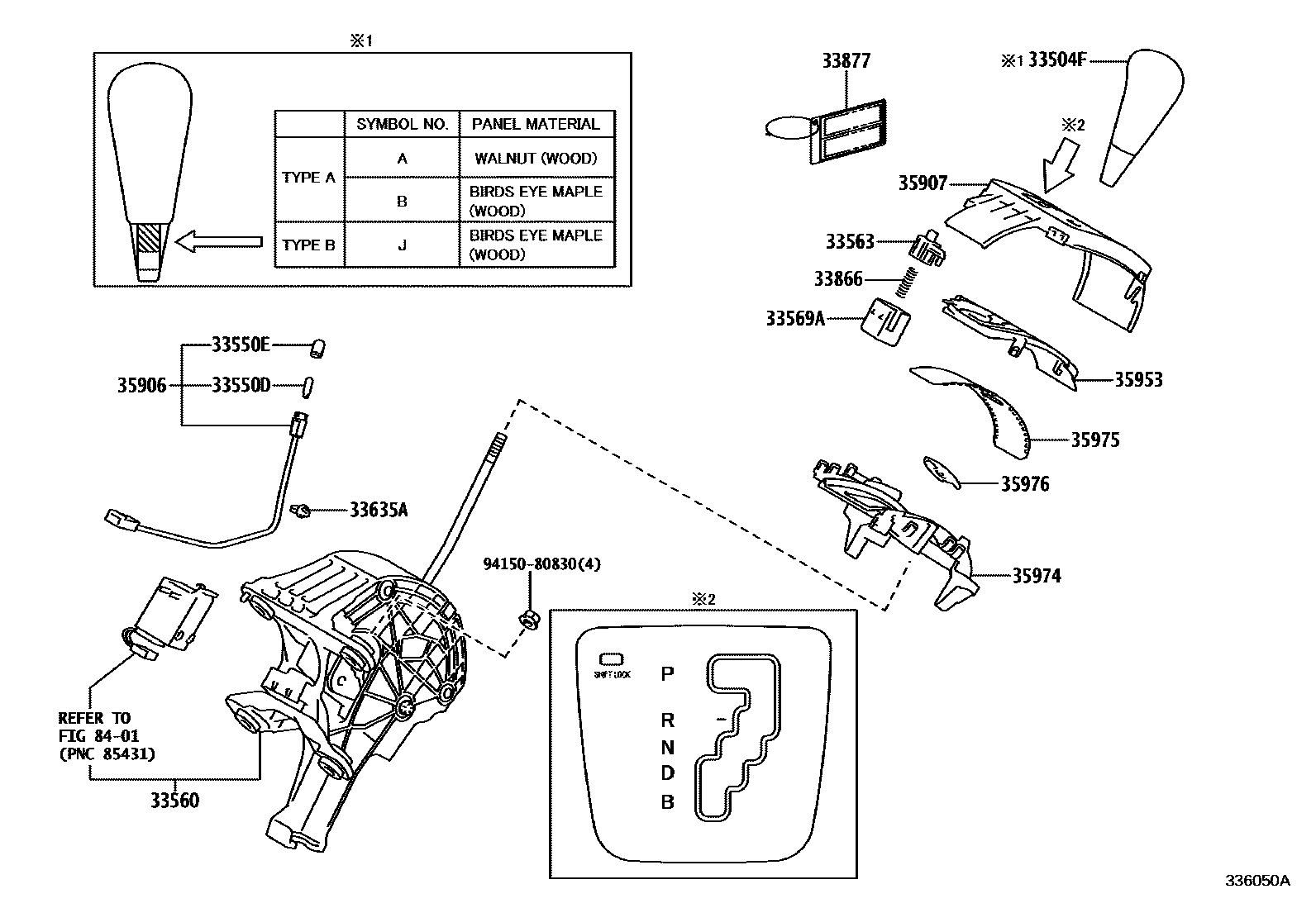

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
SADDLE GRAY,TRIM0#
BLACK,TRIM1#,2#
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33563BUTTON, SHIFT LOCK RELEASE
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33866SPRING, SHIFT LOCK RELEASE
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35906WIRE SUB-ASSY, INDICATOR LAMP
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35953GUIDE, POSITION INDICATOR LIGHT
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
9415080830
main94150-80830
17 parts on this diagram · 3 diagrams in section
