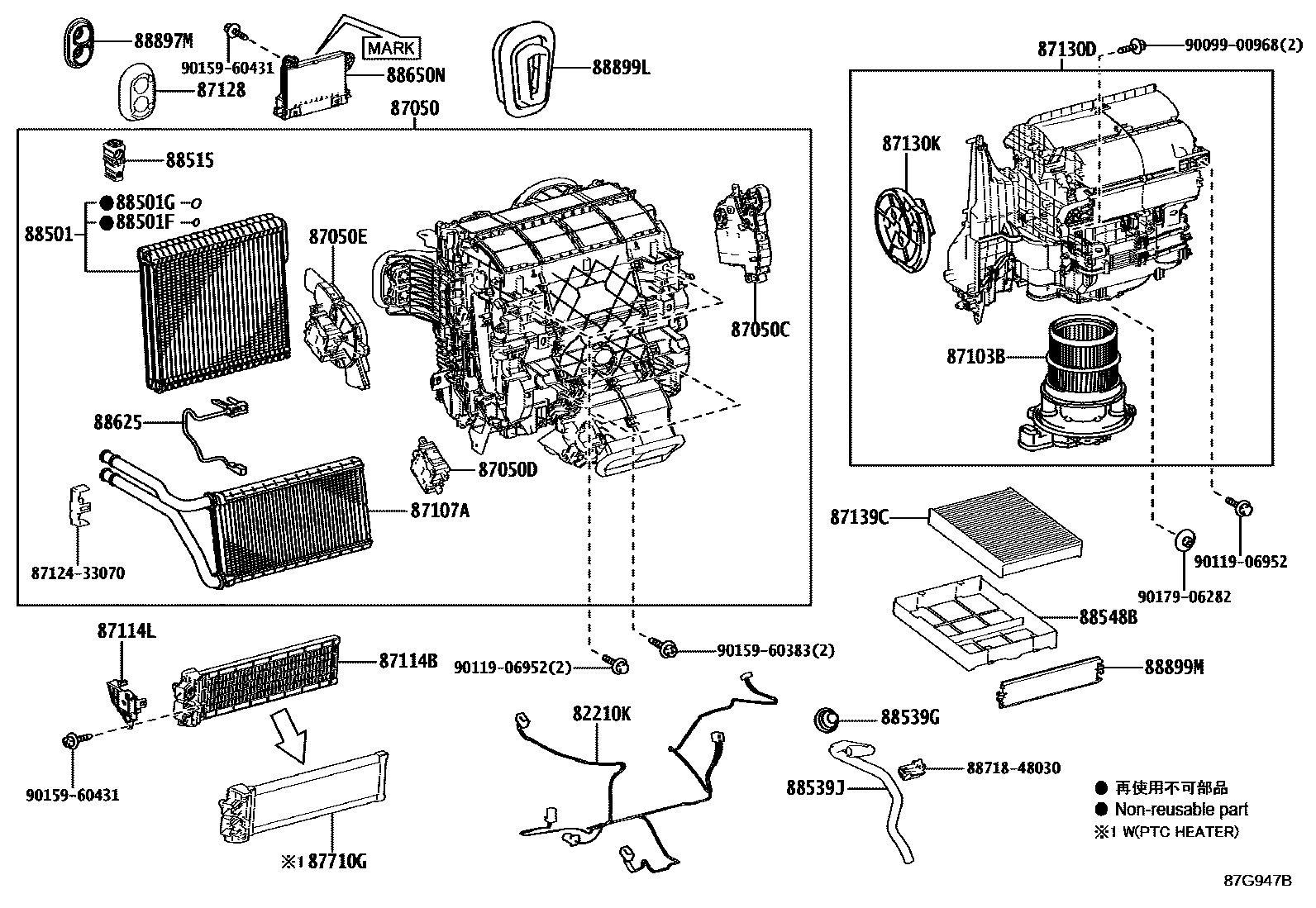

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1FRONT 0006 1FRONT 0007 1REAR 0008 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48060iGGL26,GYL26..LHD201908

main82212-48070iGYL26..RHD201908

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48580iGGL26201908

main87050-48650iGYL26..LHD201803-201908

main87050-48660iGYL26..RHD201803-201908

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iGGL26,GYL26201712-201908

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48200iGGL26,GYL26..LHD201908

main87106-48210iGYL26..RHD201803-201908

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-28230iGYL26..RHD201803-201908

main87106-48240iGGL26,GYL26..LHD201712-201908

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42120iGGL26,GYL26..LHD202107

main87103-42130iGYL26..RHD202107

main87103-58070iGYL26..RHD201803-201908

main87103-58080iGGL26,GYL26..LHD201712-201908

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48120iGGL26,GYL26..LHD201908

main87107-48130iGYL26..RHD201803-201908

87114BCOVER, HEATER

main87114-58050iGGL26201908

PTC HEATER-WITHOUT

87114LCOVER, HEATER, NO.2

main87114-48120iGYL26..RHD201803-201908

main87114-48140iGGL26,GYL26..LHD201908

87128GROMMET, HEATER

main87128-58030iGGL26,GYL26..LHD201712-201908

87130DBLOWER ASSY

main87130-48340iGGL26,GYL26..LHD201712-201908

main87130-48341iGGL26,GYL26..LHD202107

main87130-48350iGYL26..RHD201908-202106

main87130-48351iGYL26..RHD202107

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iGYL26..RHD201908

main87106-58050iGGL26,GYL26..LHD201908

87139CFILTER, CLEAN AIR

main87139-48050iGGL26,GYL26201712-201908

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-58010iGGL26,GYL26201712-201908

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48430iGGL26201908

main88501-48440iGYL26..LHD201803-201908

main88501-48460iGYL26..RHD201908

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iGGL26,GYL26201712-201908

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iGGL26,GYL26201712-201908

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-48110iGGL26201908

main88515-48140iGYL26201803-201908

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iGGL26,GYL26201712-201908

88539JHOSE, DRAIN COOLER

main88539-48090iGGL26,GYL26..LHD201908

main88539-48100iGYL26..RHD201803-201908

88548BCASE, AIR FILTER

main88899-48050iGGL26,GYL26201806-201908

main88899-48070iGGL26,GYL26201712-201805

88625THERMISTOR, COOLER, NO.1

main88620-28050iGGL26,GYL26201908

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-48E70supersedes 88650-48E81iGGL26201712-201807

MINUS ION GENERATOR-WITH,MARK=88650-48B80

main88650-48E71supersedes 88650-48E81iGGL26201807-201908

MINUS ION GENERATOR-WITH,MARK=88650-48B81

main88650-48E90supersedes 88650-48E81iGGL26201712-201807

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&MINUS ION GENERATOR-WITH,MARK=88650-48B80

main88650-48E91supersedes 88650-48E81iGGL26201807-201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&MINUS ION GENERATOR-WITH,MARK=88650-48B81

main88650-48F00supersedes 88650-48E81iGGL26201712-201807

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC),MARK=88650-48B80

main88650-48F01supersedes 88650-48E81iGGL26201807-201908

UKRAINE SPEC&WITHOUT(COLD AREA SPEC),MARK=88650-48B81

main88650-48F10supersedes 88650-48F41iGYL26201803-201807

COLD AREA SPEC&MINUS ION GENERATOR-WITH,MARK=88650-48B90

main88650-48F11supersedes 88650-48F41iGYL26201807-201908

COLD AREA SPEC&MINUS ION GENERATOR-WITH,MARK=88650-48B91

main88650-48F20supersedes 88650-48F41iGYL26201803-201807

COLD AREA SPEC,MARK=88650-48B90

main88650-48F21supersedes 88650-48F41iGYL26201807-201908

COLD AREA SPEC,MARK=88650-48B91

main88650-48F30supersedes 88650-48F41iGYL26201803-201807

MINUS ION GENERATOR-WITH,MARK=88650-48B90

main88650-48F31supersedes 88650-48F41iGYL26201807-201908

MINUS ION GENERATOR-WITH,MARK=88650-48B91

main88650-48K50supersedes 88650-48K60iGGL26201908-202107

MINUS ION GENERATOR-WITH

main88650-48K70supersedes 88650-48K60iGGL26201908-202107

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&MINUS ION GENERATOR-WITH

main88650-48K80supersedes 88650-48K60iGGL26201908-202107

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48K90iGYL26..RHD201908-202007

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48L00iGYL26..LHD201908-202107

COLD AREA SPEC

main88650-48L10supersedes 88650-48L20iGYL26201908-202107

MINUS ION GENERATOR-WITH

main88650-48N80supersedes 88650-48N90iGGL26202107

MINUS ION GENERATOR-WITH

main88650-48P00supersedes 88650-48N90iGGL26202107

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&MINUS ION GENERATOR-WITH

main88650-48P10supersedes 88650-48N90iGGL26202107

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48P20iGYL26..LHD202107

COLD AREA SPEC&MINUS ION GENERATOR-WITH

main88650-48P30iGYL26..LHD202107

COLD AREA SPEC

main88650-48P40supersedes 88650-48P50iGYL26202107

MINUS ION GENERATOR-WITH

88897MGROMMET (FOR HEATER PIPE)

main90480-01696iGGL26,GYL26201908

88899LPARTS, COOLING UNIT

main88899-48030iGGL26,GYL26201908

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iGGL26,GYL26201712-201908

8712433070CLAMP, HEATER

main87124-33070

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

9009900968

main90099-00968

9011906952

main90119-06952

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

33 parts on this diagram · 8 diagrams in section
