REAR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=300),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=300),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=300),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=300)
L=1450(*H,L=300),WITHOUT(COLD AREA SPEC)
L=1450(*H,L=280)
L=1450(*H,L=280),COLD AREA SPEC
L=1450(*H,L=280),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=280),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=280),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=280),WITHOUT(COLD AREA SPEC)
L=1450(*H,L=280),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=280),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=280),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=1450(*H,L=280),HEADLAMP-LED TRIPLE BEAM TYPE
L=1450(*H,L=280),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=1450(*H,L=280),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1430
L=1430,MOON ROOF-WITH
L=1900,MOON ROOF-WITH
L=1900
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3145
L=3145,MOON ROOF-WITH
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=430),MOON ROOF-WITH
L=1450(*H,L=430)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=460)
L=1450(*H,L=460),MOON ROOF-WITH
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=135)
L=1450(*H,L=135),MOON ROOF-WITH
85376CSPRING, WASHER HOSE
8538948450PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-48450
8538976030PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-76030
9046907011
main90469-07011

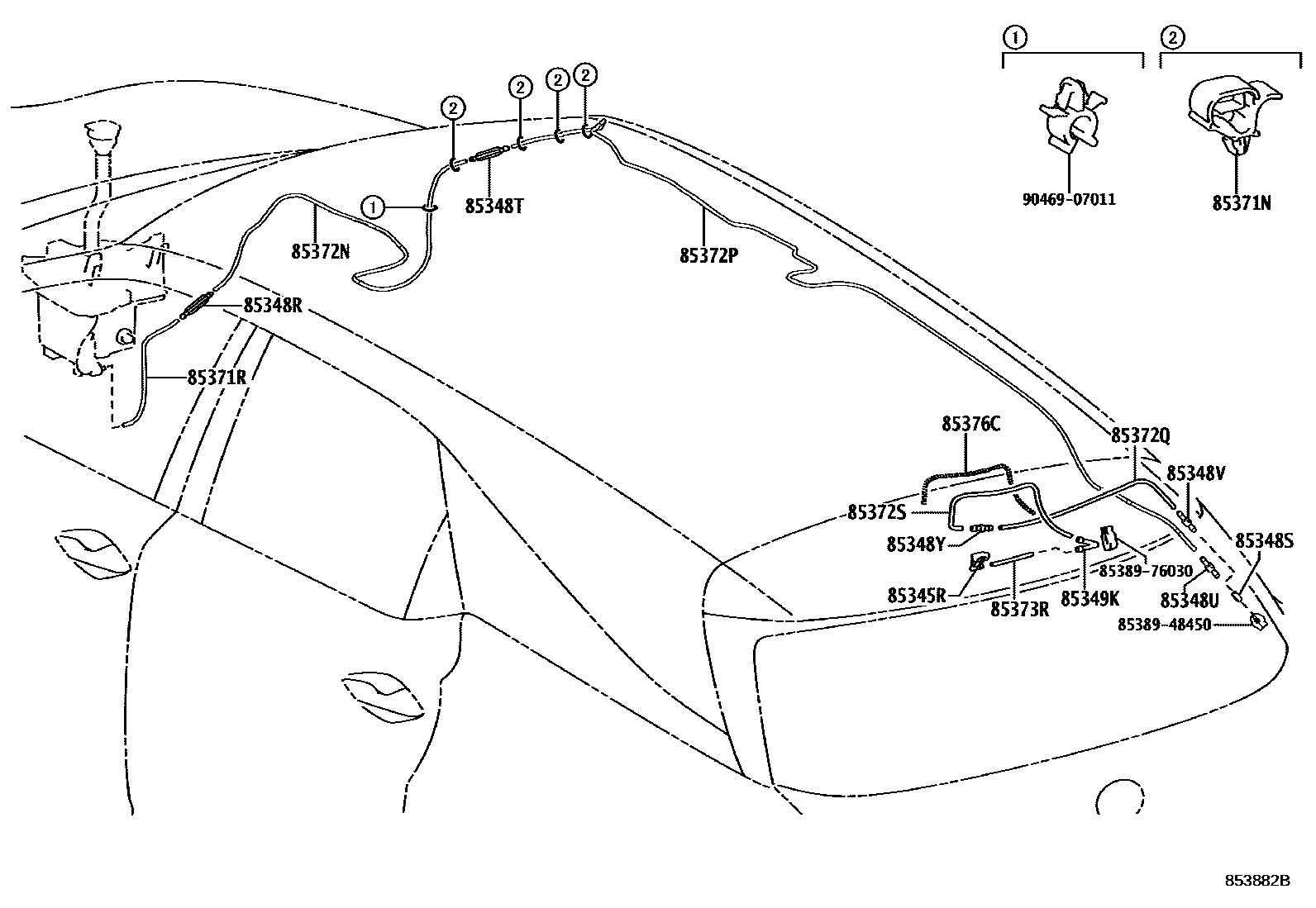

19 parts on this diagram · 2 diagrams in section
