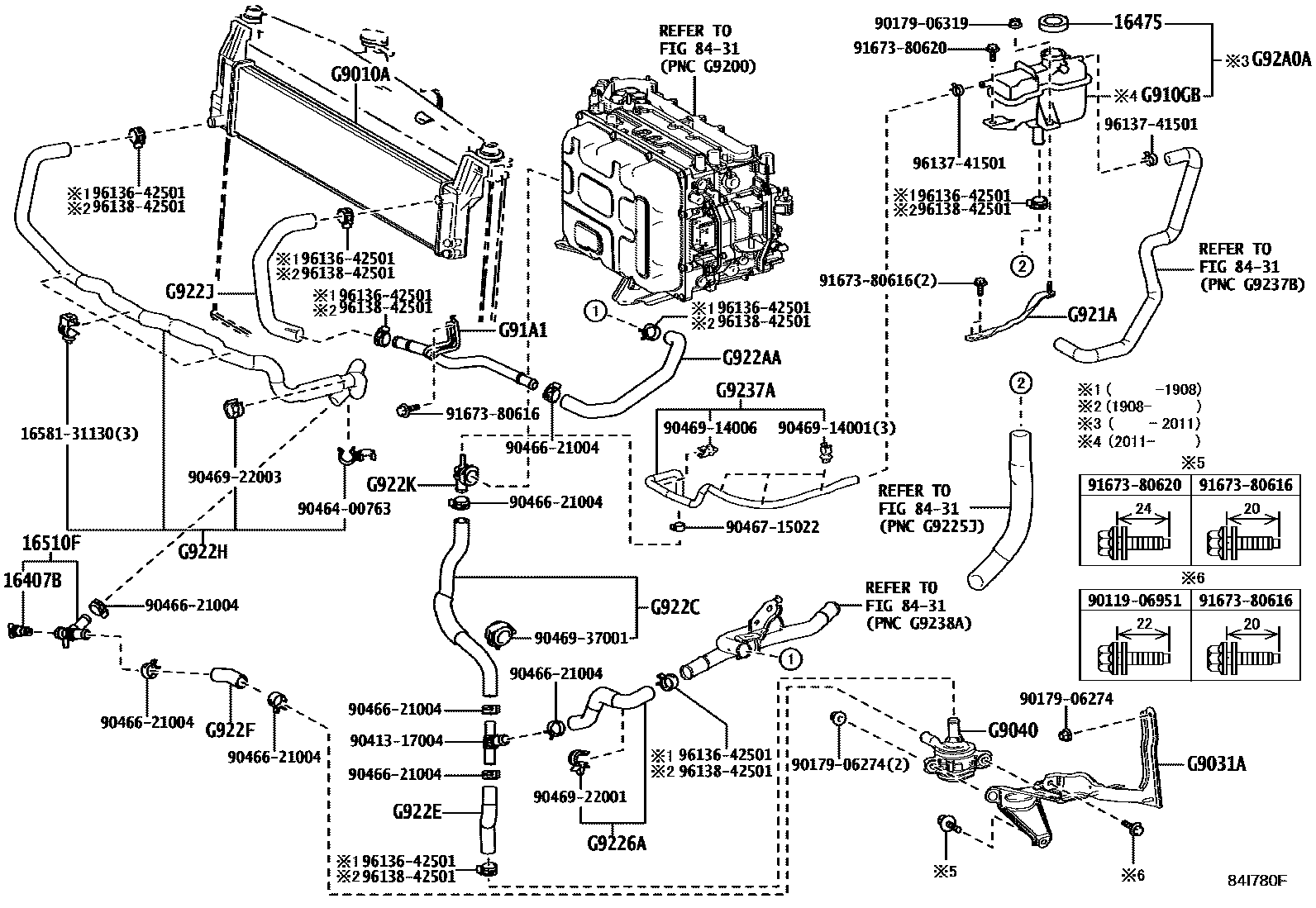

INVERTER COOLING

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i2GRFXS..GYL26201803-201908

16475CAP, RESERVE TANK

main16475-28140i2GRFXS..GYL26201803-201908

16510FCOCK ASSY, DRAIN

main90910-09134i2GRFXS..GYL26201803-201908

8431

G9010ARADIATOR ASSY

mainG901048071iGYL26201803-201908

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903148020iGYL26201803-201908

mainG903148030iGYL26201908

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052020iGYL26201803-201908

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG920H48010iGYL26202011

G91A1PIPE, INVERTER COOLING, INLET

mainG91A148010iGYL26201803-201908

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG921A48011iGYL26201803-201908

G9226AHOSE, INVERTER COOLING, NO.2

mainG922648040iGYL26201803-201908

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A48020iGYL26201803-201908

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C48011iGYL26201803-201908

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E48010iGYL26201803-201908

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F48020iGYL26201803-201908

G922HHOSE, HYBRID RADIATOR INLET

mainG922H48030iGYL26201803-201908

G922JHOSE, HYBRID RADIATOR OUTLET

mainG922J48030iGYL26201803-201908

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K48012iGYL26201803-201908

G9237AHOSE, INVERTER DRAIN

mainG923748030iGYL26201803-201908

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A048043iGYL26201803-202011

1658131130CLAMP, HOSE(FOR WATER HOSE)

main16581-31130

9011906951

main90119-06951

9017906274

main90179-06274

9017906319

main90179-06319

9041317004

main90413-17004

9046400763

main90464-00763

9046621004

main90466-21004

9046715022

main90467-15022

9046914001

main90469-14001

9046914006

main90469-14006

9046922001

main90469-22001

9046922003

main90469-22003

9046937001

main90469-37001

9167380616

main91673-80616

9167380620

main91673-80620

9613642501

main96136-42501

9613741501

main96137-41501

9613842501

main96138-42501

38 parts on this diagram · 1 diagram in section
