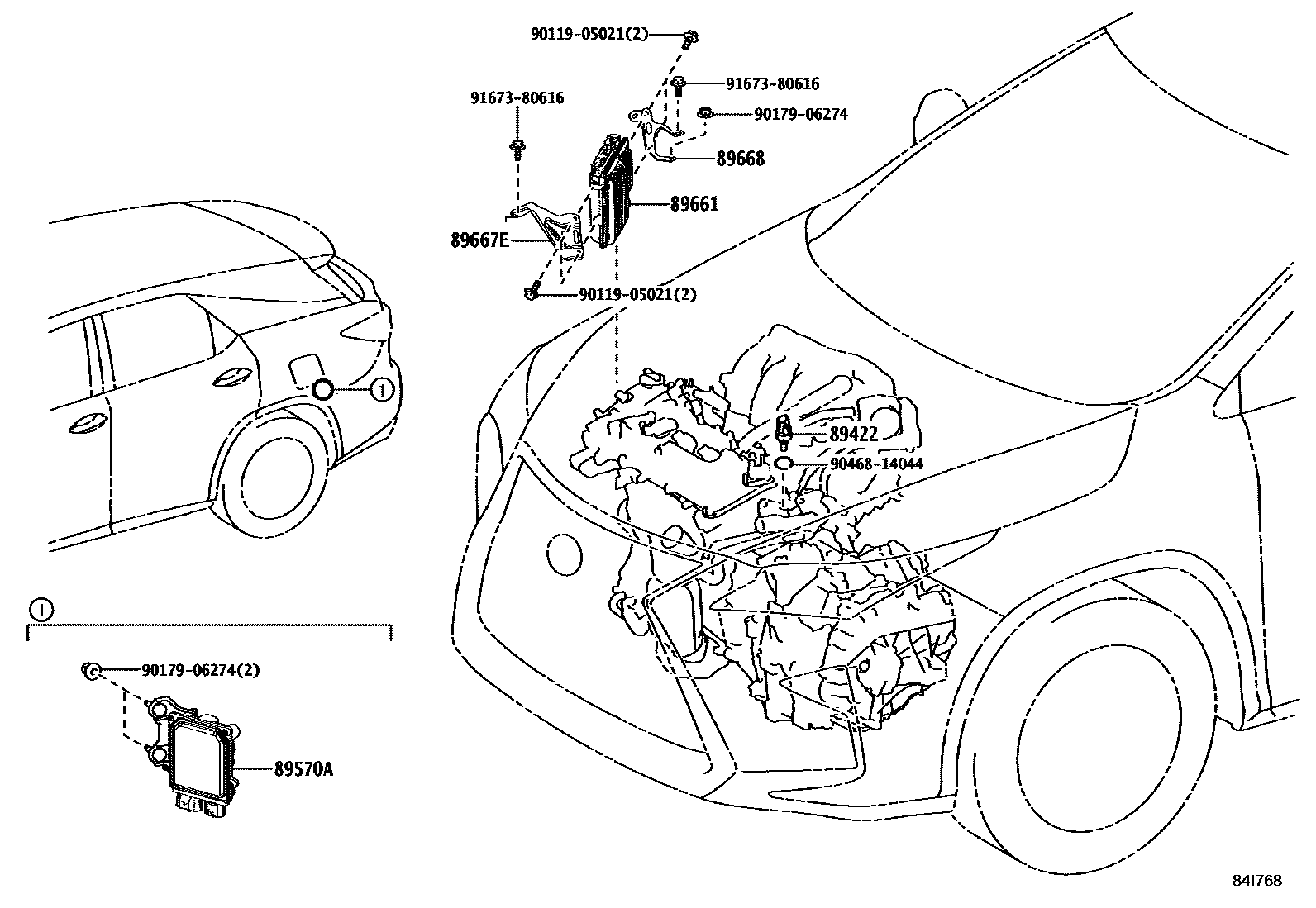

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-47010iGGL26,GYL26201712-201908

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-48070iGGL26,GYL26201712-201908

89661COMPUTER, ENGINE CONTROL

main89661-48U20iGGL26201712-201908

DENSO

main89661-48U30iGGL26201712-201908

DENSO,ADRIA(SLOVENIA) SPEC

main89661-48U30iGGL26201712-201908

DENSO,SERBIA SPEC

main89661-48U30iGGL26201712-201908

DENSO,GEORGIA SPEC

main89661-48U30iGGL26201712-201908

DENSO,ARMENIA SPEC

main89661-48U70iGYL26201803-201902

DENSO

sub89661-48U71

main89661-48U71iGYL26201903-201908

DENSO

main89661-48Y20iGGL26201908

DENSO

main89661-48Y30iGGL26201908

DENSO,SERBIA SPEC

main89661-48Y30iGGL26201908

DENSO,ADRIA(SLOVENIA) SPEC

main89661-48Y30iGGL26201908

DENSO,GEORGIA SPEC

main89661-48Y60iGYL26201908-202007

DENSO

main89661-4D380iGYL26202007

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48170iGGL26201712-201908

main89667-48180iGYL26201803-201908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48190iGGL26201712-201908

main89668-48200iGYL26201803-201908

9011905021

main90119-05021

9017906274

main90179-06274

9046814044

main90468-14044

9167380616

main91673-80616

9 parts on this diagram · 2 diagrams in section
